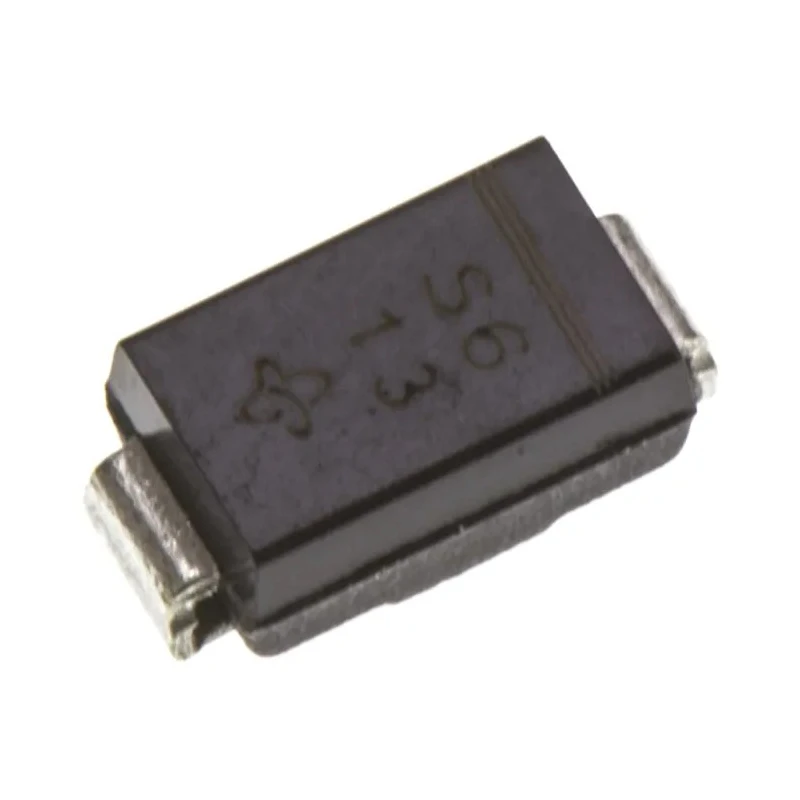

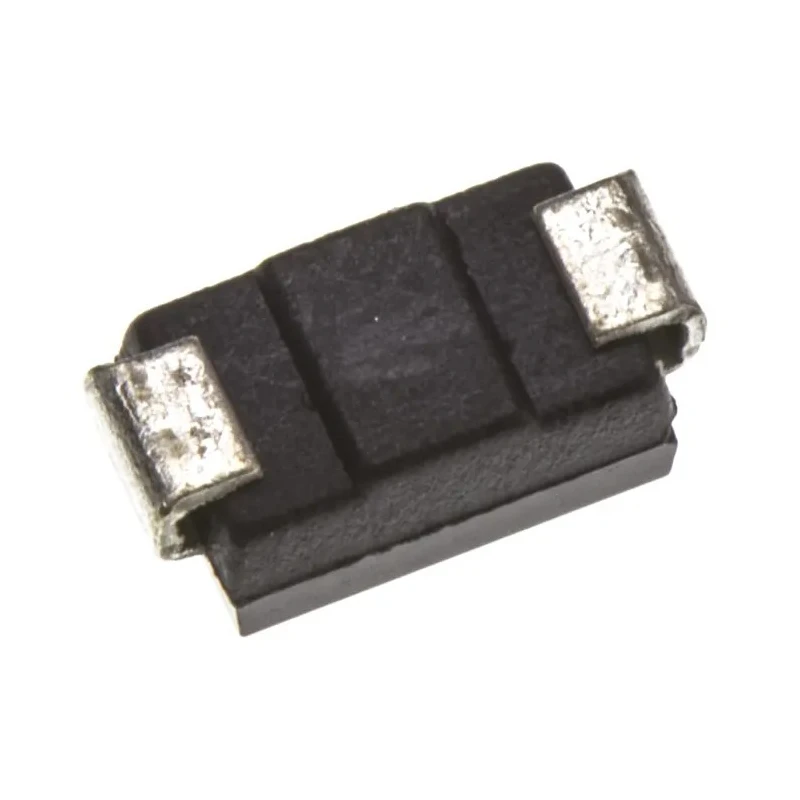

Vishay 60 V 1 A Surface Mount Schottky Diode 2-Pin DO-214AC SS16-E3/61T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.09mm |
| Length | 4.5mm |
| Model | SS16-E3/61T |
| Width | 2.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 750mV |
| Taiwan Semiconductor 60 V 1 A Diode Schottky 2-Pin DO-214AC SS16Brand | Taiwan Semiconductor |
Key Features
- The diode features a maximum continuous forward current of 1 A for reliable performance.
- It offers a peak reverse repetitive voltage of 60 V to protect circuits against voltage surges.
- The device has a low forward voltage drop of 750 mV, resulting in high efficiency and low power loss.
- Operating temperature ranges from -65°C up to 150°C, suitable for various environments.
- Compact size with dimensions 4.5 mm length, 2.9 mm width, and 2.09 mm height for space-saving PCB designs.
- Provided in a surface mount DO-214AC package, facilitating automated assembly.
- Peak non-repetitive forward surge current of 40 A allows handling occasional transient currents safely.
- The diode’s construction includes an over-voltage protection guard ring for enhanced durability.
Product Description
Vishay SS16-E3/61T is a Schottky barrier diode designed for surface mounting, featuring a maximum continuous forward current of 1 A and peak reverse voltage of 60 V in a 2-pin DO-214AC package. Its low forward voltage drop of 750 mV ensures reduced power losses and higher efficiency in electrical circuits.
Engineered to operate within a broad temperature range from -65°C to 150°C, this durable diode performs reliably in demanding industrial, commercial, and automotive electronic applications. The compact dimensions of 4.5 mm length, 2.9 mm width, and 2.09 mm height make it ideal for space-constrained printed circuit board layouts.
The device includes an over-voltage protection guard ring, enhancing robustness against electrical surges and transients. The peak non-repetitive forward surge current rating of 40 A allows it to absorb occasional current spikes safely without damage.
Common use cases include low voltage, high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection applications, making it a versatile component in power electronics, industrial control systems, and embedded device designs.
The diode supports a maximum continuous forward current of 1 A. It withstands peak reverse repetitive voltages of 60 V. Low forward voltage drop of 750 mV minimizes power dissipation. Wide operating temperature range from -65°C to 150°C.
Compact DO-214AC package suitable for surface mount technology. Peak surge current capability of 40 A enhances transient handling. Low profile design enables dense PCB layouts. Includes guard ring for over-voltage protection.
Applicable to various power conversion and protection circuits.
This Vishay diode is a new, high-quality semiconductor suitable for electronic component inventories focusing on durable and efficient rectification solutions. Browse related semiconductor and diode categories at EnvMart for comprehensive sourcing and technical specifications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1 A, ensuring reliable performance in various applications.
This model has a peak reverse repetitive voltage rating of 60 V, which helps protect circuits from voltage surges.
The dimensions of this diode are 4.5 mm in length, 2.9 mm in width, and 2.09 mm in height, making it compact for PCB designs.
The forward voltage drop of this diode is 750 mV, which contributes to its high efficiency and low power loss.
The operating temperature range for this model is from -65°C to 150°C, suitable for various environments.
This diode can handle a peak non-repetitive forward surge current of 40 A, allowing it to manage occasional transient currents safely.
The SS16-E3/61T is provided in a surface mount DO-214AC package, facilitating automated assembly.
This model is a Schottky barrier diode, designed for efficient rectification in electronic circuits.
The diode has a pin count of 2, which is standard for its DO-214AC package.
Yes, it includes an over-voltage protection guard ring, enhancing its robustness against electrical surges and transients.
This diode is commonly used in low voltage, high frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection applications.
The peak reverse current rating for this model is 5 mA, indicating its capability to handle reverse conditions.
