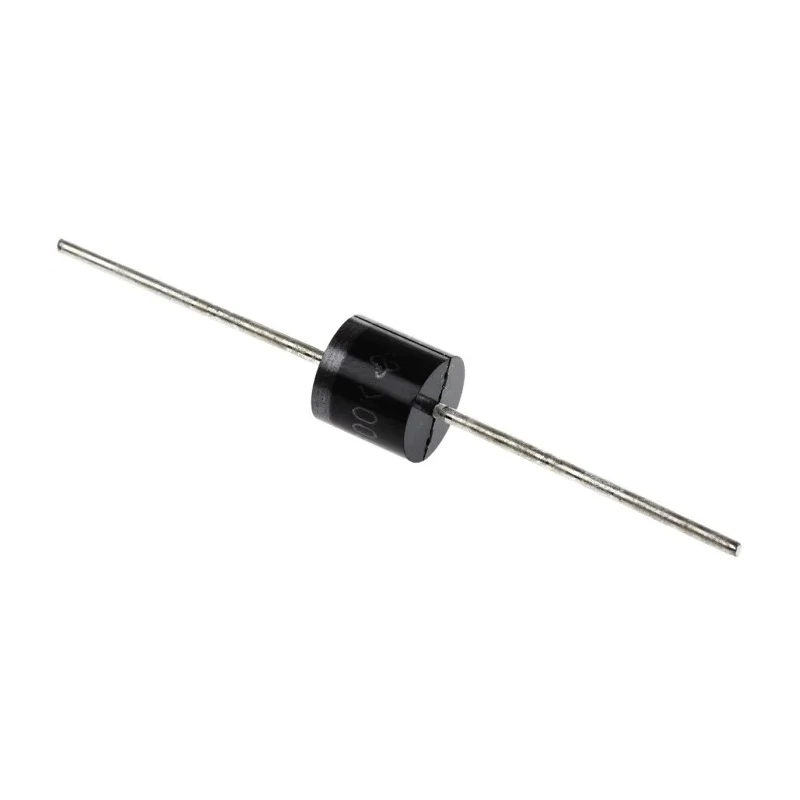

Vishay 800 V 6 A General Purpose 2-Pin Diode P600K-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | P600K-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | P600K |
| Maximum Operating Temperature | 150°C |
| Case | P600, void-free molded epoxy body |
| Package Type | P600 |
| Minimum Operating Temperature | -50°C |
| Polarity | Color band denotes cathode end |
| Terminals | Matte tin plated leads, solderable per |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 6A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 2.5μs |
| onsemi Diode, MR754Brand | ON Semiconductor |
| Vishay 800V 22A, Silicon Junction Diode, 2-Pin P600 P600KBrand | Vishay |
Key Features
- Supports maximum continuous forward current of 6 A.
- Rated for peak reverse repetitive voltage of 800 V.
- Low forward voltage drop of 1.3 V ensures efficiency.
- Operates reliably between -50°C and 150°C junction temperature.
- Features peak non-repetitive forward surge current rating of 400 A.
- Constructed with a robust P600 epoxy molded case, 9.1 mm in dimensions.
- Terminals are matte tin plated leads, solderable per industry standards.
- Color band marking indicates cathode polarity for easy identification.
Product Description
Vishay P600K-E3/54 is a general purpose diode housed in a P600 epoxy molded single series plastic rectifier package. It features a 2-pin through-hole mount configuration designed for power rectification applications.
This diode supports a maximum continuous forward current of 6 A and a peak reverse repetitive voltage rating of 800 V, making it suitable for demanding power electronics. The device has a low forward voltage drop of 1.3 V, which contributes to improved efficiency and power handling.
Operating junction temperatures range from -50°C to 150°C, allowing use in a variety of industrial and commercial environments. The diode offers a high peak non-repetitive forward surge current of 400 A ensuring durability against transient events.
The diode construction uses a void-free molded epoxy body which meets UL 94 V-0 flammability rating. Matte tin plated leads allow reliable soldering per J-STD-002 and JESD 22-B102 standards. The color band on the package clearly denotes the cathode end for polarity identification.
This device is RoHS-compliant and commercially graded with the E3 suffix meeting JESD 201 class 1A whisker requirements. It is ideal for applications in power supplies, inverters, converters, and freewheeling diode circuits in industrial, manufacturing, HVAC, and other electrical systems.
Supports maximum continuous forward current of 6 A. Rated for peak reverse repetitive voltage of 800 V. Low forward voltage drop of 1.3 V. Wide operating temperature range from -50°C to 150°C. Peak surge current tolerance of 400 A ensures durability.
Durable P600 epoxy molded body with UL 94 V-0 rating. Matte tin plated leads compatible with industry soldering standards. Clear polarity marking with color band on cathode end. RoHS-compliant and commercial grade with whisker test passed.
Ideal for power supplies, inverters, converters, and freewheeling diode applications. Explore more products in the Schottky Diodes & Rectifiers category to find suitable components for your electronic and power conversion needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 6 A.
This model has a peak reverse repetitive voltage rating of 800 V.
The forward voltage drop is 1.3 V, which contributes to its efficiency.
It operates reliably between -50°C and 150°C.
The diode features a peak non-repetitive forward surge current rating of 400 A.
It is housed in a P600 epoxy molded single series plastic rectifier package.
The terminals are matte tin plated leads, which are solderable per industry standards.
The color band marking indicates the cathode polarity for easy identification.
The diode has dimensions of 9.1 mm in diameter, height, and length.
This device is RoHS-compliant and meets JESD 201 class 1A whisker requirements.
It is ideal for applications in power supplies, inverters, converters, and freewheeling diode circuits.
The peak reverse recovery time is 2.5 μs.
