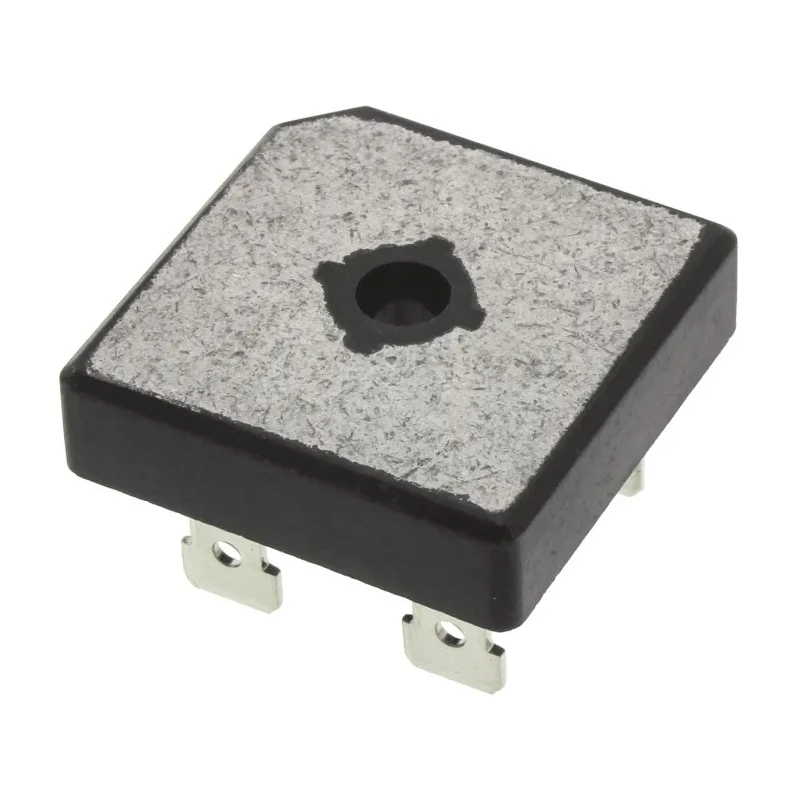

Vishay Bridge Rectifier 1000 V 300 A 4-Pin Single GBPC2510-E4/51

Vishay GBPC2510-E4/51 Bridge Rectifier is a semiconductor device designed for efficient and reliable AC to DC conversion in full-wave rectification applications. It offers a peak reverse repetitive voltage of 1000 V and a peak non-repetitive forward surge current of 300 A, making it suitable for demanding industrial and electronic power supply systems.

With a forward current rating of 25 A and operating temperature range from -55°C to 150°C, this rectifier maintains performance in harsh environments. Its 4-pin GBPC package provides flexible screw mounting and universal three-way terminals for snap-on, wire wrap-around, or printed circuit board attachments, facilitating versatile installation options.

The device features nickel-plated faston lugs or silver-plated wire leads for robust electrical connections, compliant with soldering standards J-STD-002 and JESD22-B102. Its compact physical dimensions (28.8 mm length × 28.8 mm width × 7.62 mm height) enable space-efficient integration in electronic assemblies and equipment.

Typical peak forward voltage is 1.1 V, achieving low power dissipation and improved efficiency. The molding compound meets UL 94 V-0 flammability rating, assuring safety and high reliability in industrial, office, and home appliance power systems.

Supports a forward current of 25 A for consistent power delivery. Operates within a temperature range from -55°C to 150°C, ensuring robust thermal performance. Features a 4-pin GBPC package type with screw mounting for secure installation.

Universal 3-way terminals enable snap-on, wire wrap-around, or PCB mounting versatility. Constructed with nickel-plated faston lugs or silver-plated wire leads compliant with standard soldering processes. Compact dimensions of 28.8 mm length, 28.8 mm width, and 7.62 mm height optimize space in electronic assemblies.

Typical peak forward voltage of 1.1 V minimizes power loss during operation. Designed for general purpose AC/DC bridge full-wave rectification in industrial, office, and home applications. Meets UL 94 V-0 flammability rating for molding compound ensuring safety and reliability.

Mounting torque limit of 20 inches-lbs ensures proper mechanical stability without damage.

This Vishay bridge rectifier is ideal for power supplies, home appliances, office equipment, and industrial automation requiring efficient AC to DC conversion. Its durable construction and industry-standard approvals provide confidence for manufacturing and repair uses.
