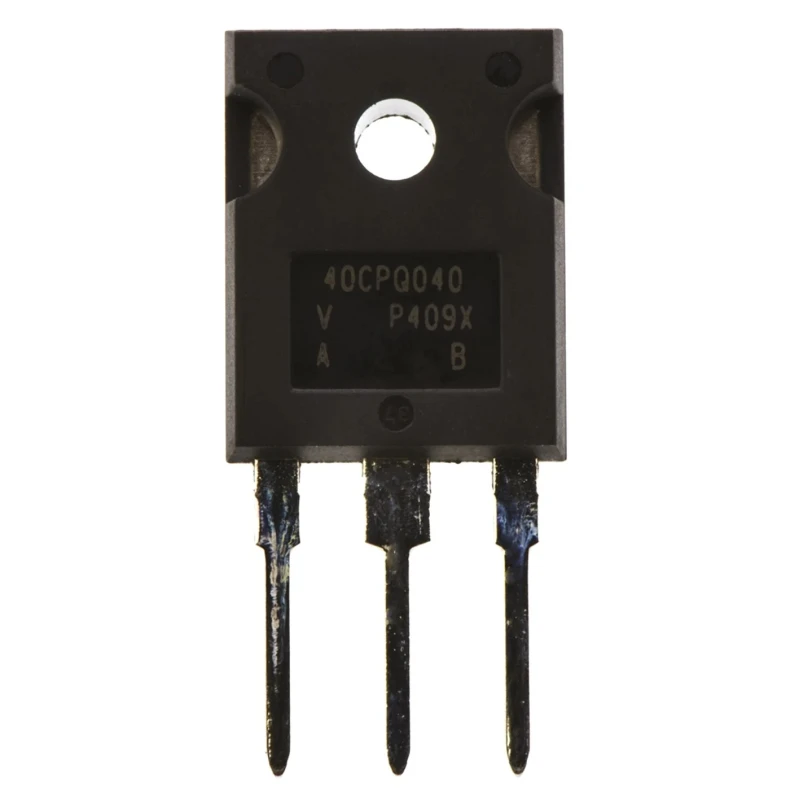

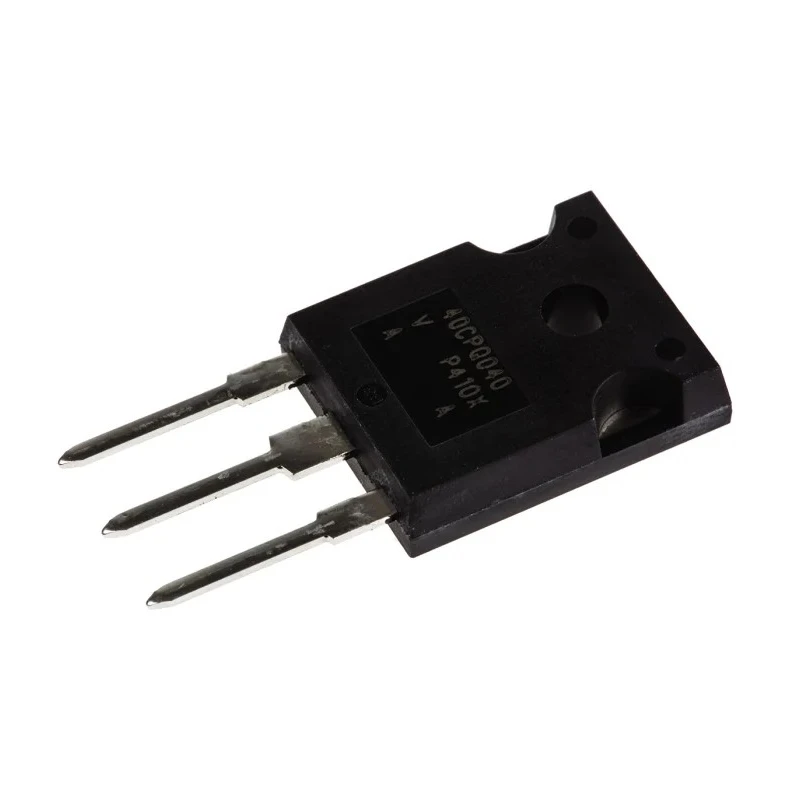

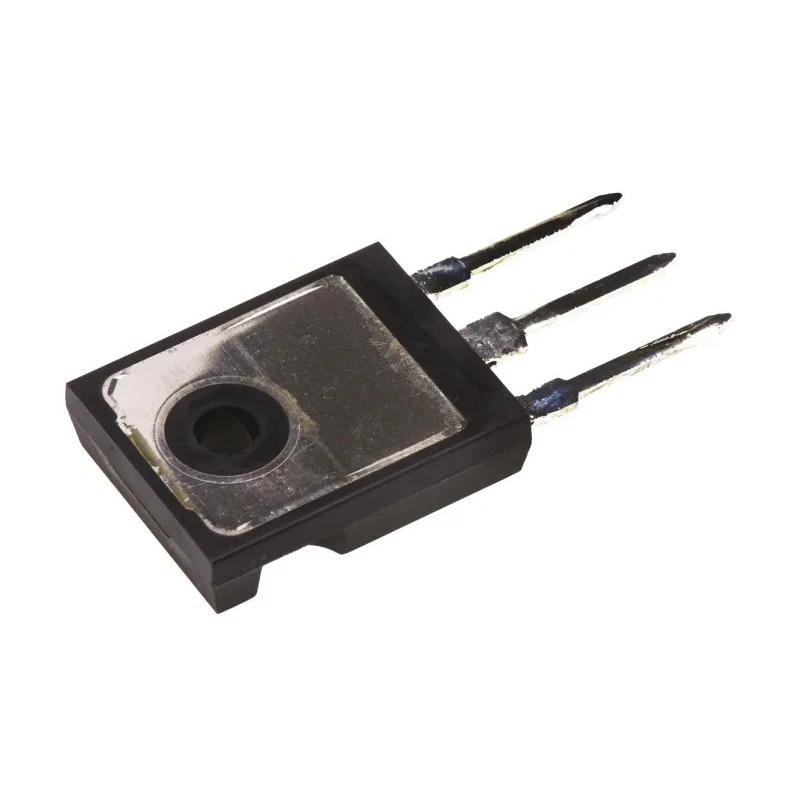

Vishay 40 V 40 A Schottky Diode 3-Pin Through Hole TO-247AC VS-40CPQ040-N3

Vishay VS-40CPQ040-N3 Schottky Diode is engineered as a high-performance semiconductor device suitable for industrial, power electronics, automotive, and general-purpose electronic applications. It comes in a robust TO-247AC package which facilitates through-hole mounting, providing strong mechanical support and efficient heat dissipation.

This diode supports a maximum continuous forward current of 40A and a peak reverse voltage of 40V, ideal for rectification and switching environments where fast response and low forward voltage drop are critical to improve efficiency and reduce energy loss.

The device features a very low maximum forward voltage of 490 mV, which contributes to high efficiency in power conversion applications. Its fast switching capability is due to its Schottky rectifier structure, which also ensures low reverse recovery times, minimizing switching losses and electromagnetic interference.

Thermal performance permits operation across a wide temperature range from -55°C to 150°C, and its peak non-repetitive forward surge current withstands transient current spikes up to 3.5 kA, making it reliable under surge conditions.

This diode meets the stringent automotive standard AEC-Q101, ensuring suitability for automotive electronics and other demanding applications requiring high reliability.

With a compact footprint of 15.87 mm length, 5.31 mm width, and 20.7 mm height and a pin count of 3, it offers easy integration into power circuits. The common cathode diode configuration simplifies design implementation in multi-diode assemblies.

Package contents include one Vishay VS-40CPQ040-N3 3-pin TO-247AC Schottky diode. Ideal for industrial electronics, power supplies, motor drives, and renewable energy equipment, this diode combines reliability and performance.

Explore more products in the Schottky Diodes & Rectifiers category at EnvMart for your electronic component needs. Mount type is through hole for secure PCB fitting. Maximum operating temperature reaches up to 150°C ensuring high thermal reliability.

Low maximum forward voltage drop of 490 mV reduces power losses. Peak non-repetitive forward surge current rating of 3.5 kA handles transient overloads. Designed with common cathode diode configuration and Schottky rectifier technology for fast switching.

Pin count is 3 supporting easy identification and soldering. Operating temperature range spans from -55°C to 150°C. Meets automotive standard AEC-Q101 for enhanced reliability in harsh environments. Compact dimensions with length 15.87 mm, width 5.31 mm, and height 20.7 mm.

Peak reverse current of 4 mA at rated voltage.
