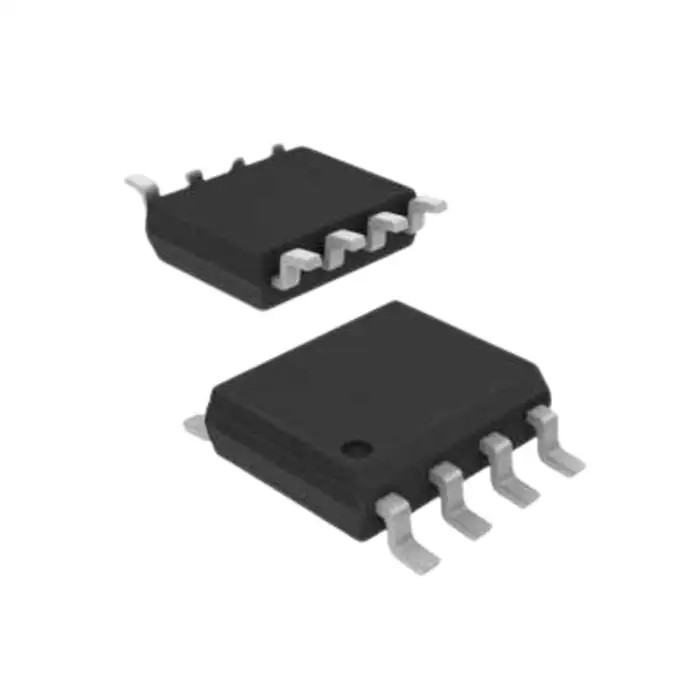

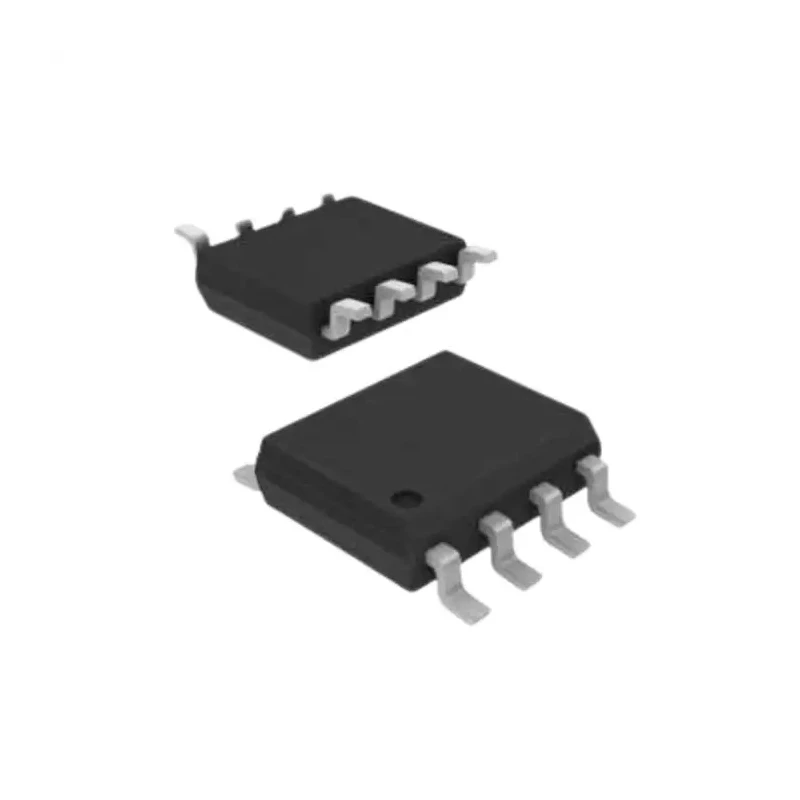

Nisshinbo Micro Devices Dual Operational Amplifier 200 kHz Gain Bandwidth, 8-Pin Surface DMP Package NJM2904M-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM2904M-TE1 |
| Mount Type | Surface |
| Series | NJM2904 |
| Maximum Operating Temperature | 85°C |
| Package Type | DMP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Minimum Supply Voltage | 32V |
| GBP - Gain Bandwidth Product | 200kHz |
| Input Bias Current | 250 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 50 nA |
Key Features
- The amplifier operates from a single 32V power supply for flexibility.
- It features a low input offset voltage of 7 mV enhancing signal accuracy.
- The input bias current is minimized at 250 nA.
- Operating temperature range spans from -40°C to 85°C for harsh environments.
- The device offers a moderate slew rate of 0.5 V/μs providing good transient response.
- Constructed with bipolar technology ensuring high gain and frequency compensation.
- Compliant with RoHS standards for environmentally safe use.
- The package contains two independent operational amplifiers in one device.
Product Description
The Nisshinbo Micro Devices NJM2904M-TE1 is a dual operational amplifier designed for high gain and frequency compensated performance with a gain bandwidth product of 200 kHz. It is packaged in an 8-pin DMP surface mount format suitable for compact PCB designs.
This device operates efficiently over a wide voltage range with a minimum and maximum supply voltage of 32V, making it ideal for varied power applications. With a low input offset voltage of 7 mV and input bias current of 250 nA, the amplifier ensures precision signal conditioning.
Its operating temperature extends from -40°C to 85°C, allowing use in demanding industrial, automotive, and consumer electronics environments. The moderate slew rate of 0.5 V/μs supports responsive analog signal amplification with minimal distortion.
The device utilizes bipolar technology with two independent amplifiers included in one package, providing flexibility in circuit design. Compliance with RoHS standards further facilitates usage in modern electronics manufacturing.
Typical applications include analog signal amplification in industrial control systems, instrumentation, and general-purpose electronics. The amplifier supports single power supply operation simplifying system design. Compact 8-pin DMP package for surface mounting on PCBs.
Wide operating temperature range for harsh environments. Low input offset voltage and bias current enhance measurement accuracy. RoHS compliant for environmentally conscious manufacturing. Explore EnvMart’s broad range of electronic components, including Operational Amplifiers from leading manufacturers to support your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this model is 200 kHz.
It features a low input offset voltage of 7 mV, enhancing signal accuracy.
This unit operates within a temperature range of -40°C to 85°C, suitable for harsh environments.
It contains two independent operational amplifiers in one package, providing two channels.
The input bias current is minimized at 250 nA, which helps in precision applications.
It has a moderate slew rate of 0.5 V/μs, supporting good transient response.
This model is packaged in an 8-pin DMP format, suitable for surface mounting on PCBs.
The minimum supply voltage required for operation is 32V.
Yes, it is compliant with RoHS standards for environmentally safe use.
This operational amplifier is constructed using bipolar technology, ensuring high gain and frequency compensation.
Typical applications include analog signal amplification in industrial control systems, instrumentation, and general-purpose electronics.
The input offset current is specified at 50 nA, which is relevant for precision applications.
