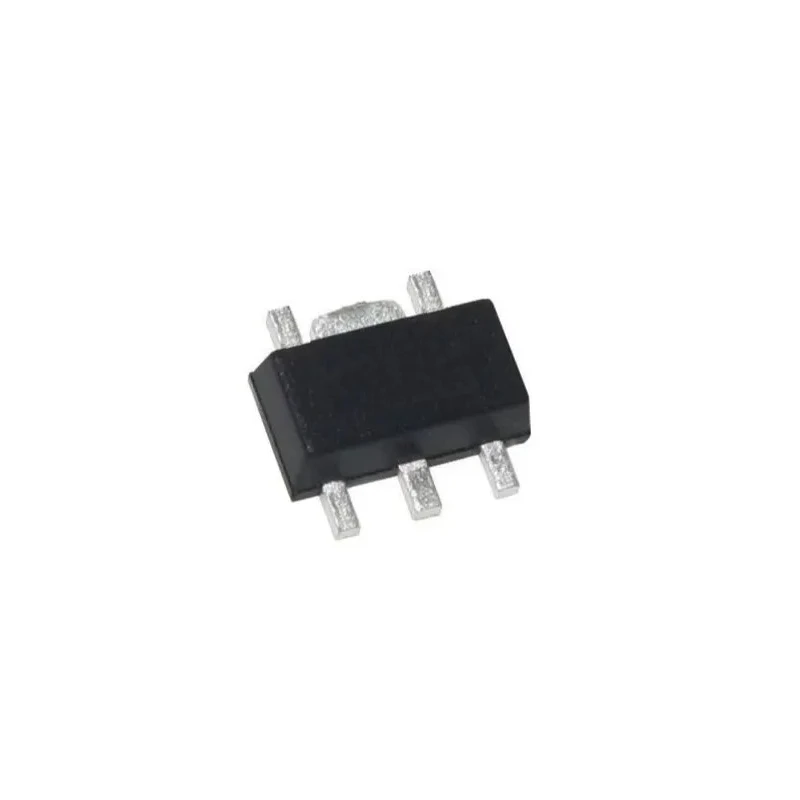

Nisshinbo Micro Devices 1-Channel Boost Controller 12V 400mA SOT-89 NJW4132U2-B-TE2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJW4132U2-B-TE2 |
| Series | NJW4132 |
| Topology | Boost |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-89 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Maximum Output Current | 2.1A |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 12V |
| Minimum Output Current | 400mA |
Key Features
- High oscillating frequency suitable for boost converter circuits.
- Wide input voltage range from 4.5 V to 40 V.
- Built-in compensation circuit for stable PWM control.
- Compact SOT-89 package for efficient PCB layout.
- Operating temperature range from -40°C to 85°C.
- Single output channel with a maximum output current of 2.1 A.
- RoHS compliant for environmental safety.
- Series NJW4132 ensures high reliability and performance.
Product Description
Nisshinbo Micro Devices NJW4132U2-B-TE2 is a 1-Channel Boost Controller IC tailored for high-efficiency switching regulator designs. It supports a wide input voltage range from 4.5 V up to 40 V and delivers a maximum output voltage of 12 V, making it ideal for various power management applications.
Featuring a compact SOT-89 package, this boost converter IC allows efficient PCB space utilization while maintaining high performance. The device includes an internal compensation circuit and employs PWM control to maintain voltage regulation and stability during operation.
Operating within a temperature range from -40°C to 85°C, the NJW4132U2-B-TE2 is suited for diverse industrial and electronic environments where temperature conditions may vary significantly. Its maximum output current of 2.1 A supports demanding load requirements in power conversion systems.
The device complies with RoHS standards, ensuring reduced harmful substances in manufacturing and operation, making it environmentally responsible for use in modern electronic products.
High oscillating frequency suitable for boost converter circuits. Wide input voltage range from 4.5 V to 40 V. Built-in compensation circuit for stable PWM control. Compact SOT-89 package for efficient PCB layout. Operating temperature range from -40°C to 85°C.
Single output channel with a maximum output current of 2.1 A. RoHS compliant for environmental safety. Series NJW4132 ensures high reliability and performance. No automotive certification, intended for industrial and electronics applications.
This boost controller IC is widely used in industrial electronics, power management for embedded systems, and laboratory instrument power supplies. It is suitable for applications involving voltage step-up requirements, including battery-powered equipment and general DC/DC conversion systems.
Explore more power management integrated circuits and boost converters at EnvMart’s Electronics & Electricals section for reliable components in your design projects.
Explore more products in our DC-DC Controllers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 12 V.
It supports a wide input voltage range from 4.5 V to 40 V.
The maximum output current is 2.1 A.
The operating temperature range is from -40°C to 85°C.
It comes in a compact SOT-89 package, suitable for efficient PCB layout.
Yes, it includes a built-in compensation circuit for stable PWM control.
The minimum input voltage is 4.5 V, and the maximum input voltage is 40 V.
It is suitable for industrial electronics, power management for embedded systems, and laboratory instrument power supplies.
It complies with RoHS standards, ensuring reduced harmful substances in manufacturing and operation.
The topology of this model is Boost, designed for voltage step-up applications.
This boost controller has a single output channel.
The minimum output current is 400 mA.
