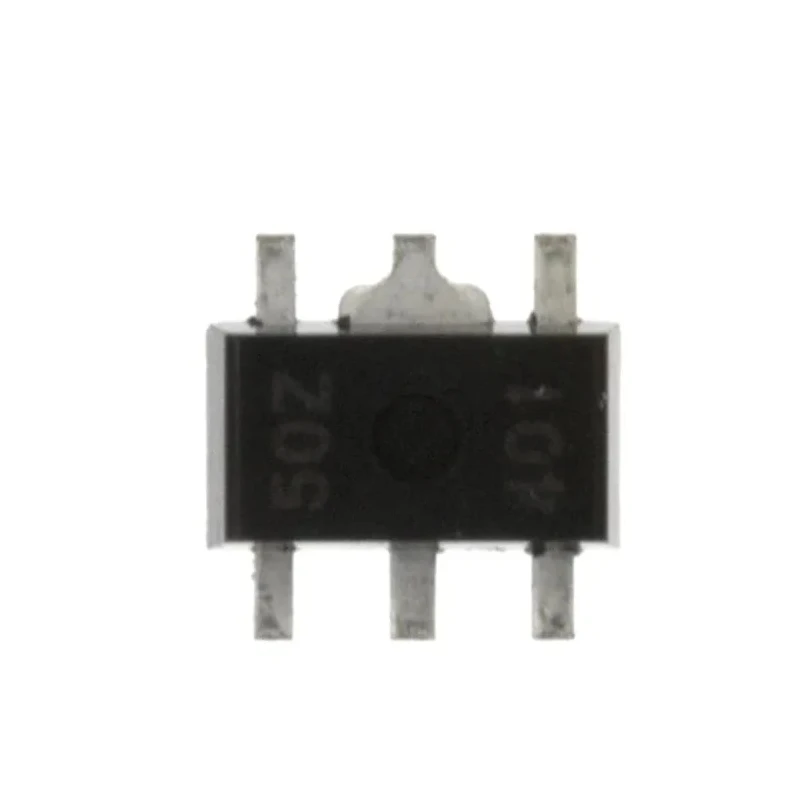

Nisshinbo Micro Devices 1-Channel Boost Controller 12V 400mA SOT-89 NJW4132U2-C-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJW4132U2-C-TE1 |
| Series | NJW4132 |
| Topology | Boost |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-89 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Maximum Output Current | 2.25A |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 12V |
| Minimum Input Voltage | 5V |
| Minimum Output Current | 400mA |
Key Features
- Supports input voltage range from 5V to 40V.
- Maximum output current capacity of 2.25A.
- Housed in a compact SOT-89 package suitable for space-constrained designs.
- Operates effectively within a temperature range of -40°C to 85°C.
- Complies with RoHS standard, ensuring environmental safety.
- Includes a built-in compensation circuit and PWM control for efficiency.
- Single output topology optimized for boost converter circuits.
- Reliable for industrial, electronic component, and power management applications.
Product Description
Nisshinbo Micro Devices NJW4132U2-C-TE1 is a high-frequency switching regulator IC designed as a 1-channel boost controller within DC-DC converter systems. It supports input voltage ranging from 5V minimum to 40V maximum and delivers a maximum output voltage of 12V with a minimum output current of 400mA and maximum output current up to 2.25A. The device utilizes PWM control combined with a built-in compensation circuit ensuring stable and efficient power conversion.
Its compact SOT-89 package makes it suitable for integration into PCB designs where space optimization is critical. The wide operating temperature range from -40°C to 85°C offers robustness for various industrial environments. Furthermore, the NJW4132U2-C-TE1 complies with RoHS standards, confirming its adherence to environmental and safety regulations.
This boost controller IC finds applications across industrial machines, power management electronics, and general electronic components, providing reliable voltage regulation and power conversion efficiency in demanding circuits. It belongs to the NJW4132 series and is not specified for automotive use.
Supports input voltage range from 5V to 40V. Maximum output voltage is 12V, with output current capable up to 2.25A. Compact SOT-89 package for efficient PCB space utilization. Wide operating temperature range from -40°C to 85°C for industrial suitability.
Built-in compensation circuit and PWM control improve performance. Single output topology optimized for boost conversion. Meets RoHS compliance standards for environmental safety. Ideal for electronic, industrial, and power supply design applications.
Explore more DC-DC converter ICs and boost controllers in the Electronics & Electricals category on EnvMart for reliable power management solutions.
Explore more products in our DC-DC Controllers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an input voltage range from 5V to 40V.
The maximum output current capacity is 2.25A.
It operates effectively within a temperature range of -40°C to 85°C.
The maximum output voltage is 12V.
It is housed in a compact SOT-89 package, suitable for space-constrained designs.
Yes, this model complies with RoHS standards, ensuring environmental safety.
It utilizes PWM control combined with a built-in compensation circuit for efficient power conversion.
This model has a single output topology optimized for boost converter circuits.
It is suitable for industrial machines, power management electronics, and general electronic components.
The minimum output current is 400mA.
It belongs to the NJW4132 series of DC-DC controllers.
The country of origin for this model is India.
