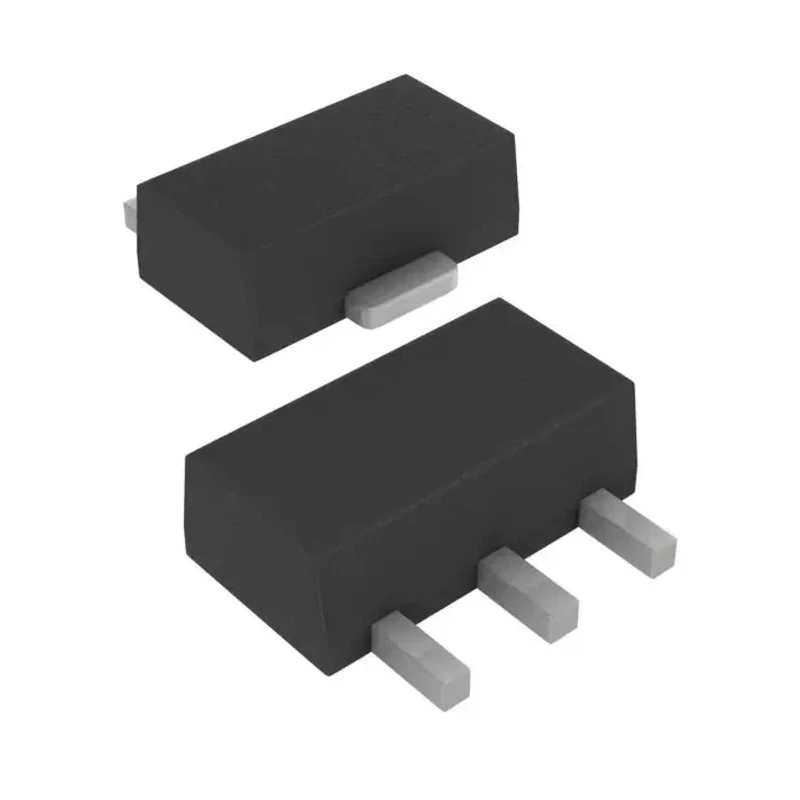

Nisshinbo Micro Devices 1-Channel Linear Voltage Regulator 100mA 18V SOT-89-3 NJM78L18UA-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM78L18UA-TE1 |
| Mount Type | Surface |
| Series | NJM78L00 |
| Output Current | 100mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-89-3 |
| Load Regulation | 160 mV |
| Minimum Operating Temperature | -40°C |
| Regulator Type | Linear Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Output Voltage | 18V |
| Quiescent Current | 6mA |
| Line Regulation | 320 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4V |
| Pin Count | 3 |
Key Features
- Features a 100mA output current with 18V output voltage.
- Utilizes a compact SOT-89-3 3-pin surface mount package for easy PCB integration.
- Operates within a temperature range of -40°C to 125°C ensuring robust performance.
- Includes internal current limiting and thermal shutdown protections for durability.
- Offers excellent ripple rejection and low quiescent current of 6mA.
- Complies with RoHS standards ensuring environmentally safe manufacturing.
- Supports a maximum input voltage of 40V and minimum input voltage of 4V.
- Ideal for use in power management IC applications in electronic and industrial devices.
Product Description
Nisshinbo Micro Devices NJM78L18UA-TE1 is a high-quality 1-channel linear voltage regulator with an 18V output voltage and 100mA output current. It is built on the advanced JRC planar epitaxial process, offering reliable power regulation with integrated current limiting and thermal shutdown features that protect the device under faulty conditions.
Encased in a compact SOT-89-3 3-pin surface mount package, this device ensures easy integration on printed circuit boards, suitable for both consumer electronics and industrial power management applications. It operates efficiently across a wide temperature range from -40°C up to 125°C, allowing use in demanding environments.
The NJM78L18UA-TE1 exhibits excellent ripple rejection characteristics and maintains a low quiescent current of 6mA, making it energy-efficient. It supports an input voltage range from 4V to 40V, adapting to various power supply conditions.
Designed to meet RoHS environmental standards, the regulator provides a safe, sustainable choice for system designers focusing on compliance and reliability.
Typical applications include power regulation in industrial equipment, electronic components, and embedded systems requiring stable voltage supply. The device’s robust protections and performance make it suitable for rigorous industrial, electronic, and automation uses.
Features a 100mA output current with 18V output voltage. Utilizes a compact SOT-89-3 3-pin surface mount package for easy PCB integration. Operates within a temperature range of -40°C to 125°C ensuring robust performance.
Includes internal current limiting and thermal shutdown protections for durability. Offers excellent ripple rejection and low quiescent current of 6mA. Complies with RoHS standards ensuring environmentally safe manufacturing.
Supports a maximum input voltage of 40V and minimum input voltage of 4V. Ideal for use in power management IC applications in electronic and industrial devices. Explore more Voltage Regulators and power management ICs at EnvMart for your electronic design and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 18V and an output current of 100mA.
It supports a minimum input voltage of 4V and a maximum input voltage of 40V.
This unit operates efficiently within a temperature range of -40°C to 125°C.
It utilizes a compact SOT-89-3 3-pin surface mount package for easy PCB integration.
It includes internal current limiting and thermal shutdown protections to safeguard against faulty conditions.
The NJM78L18UA-TE1 has a low quiescent current of 6mA, contributing to its energy efficiency.
The load regulation is 160 mV and the line regulation is 320 mV.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing.
This model is part of the NJM78L00 series of linear voltage regulators.
It features a single output, making it a 1-channel voltage regulator.
It is ideal for power management applications in electronic devices and industrial equipment requiring stable voltage supply.
The country of origin for this model is India.
