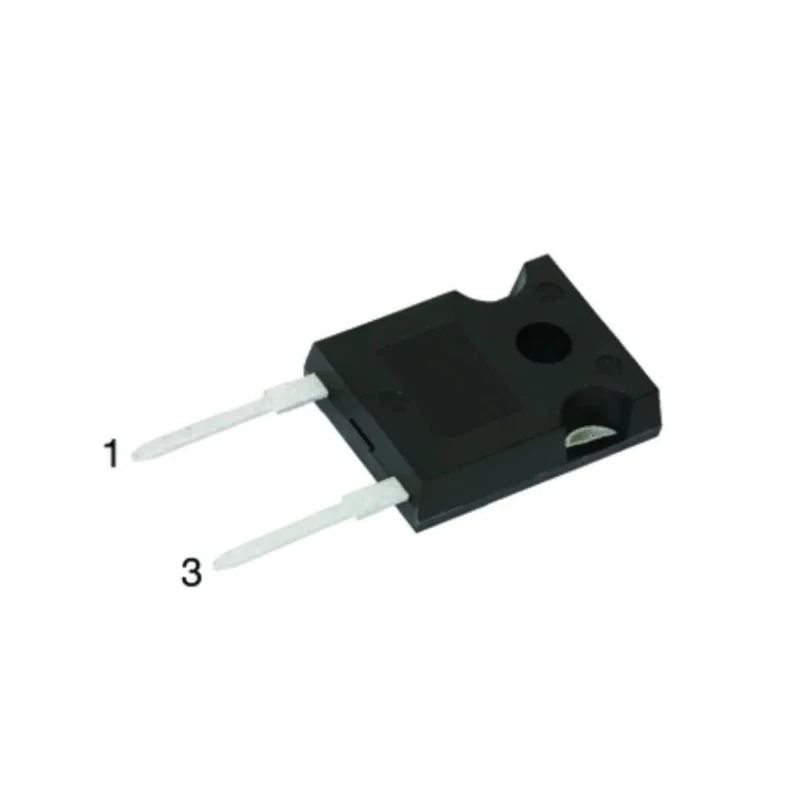

Vishay 600 V 15 A Ultrafast Recovery Switching Diode 2-Pin TO-247AC VS-HFA15PB60-N3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.9mm |
| Model | VS-HFA15PB60-N3 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247AC |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 2V |
| Peak Reverse Recovery Time trr | 60ns |
| Vishay Diode, HFA15PB60Brand | Vishay |
| STMicroelectronics 600 V 15 A Diode Switching 2-Pin TO-220 STTH15R06FPBrand | STMicroelectronics |
Key Features
- Designed for ultrafast recovery with soft and fast recovery behavior at any diF/dt condition.
- Utilizes proprietary Schottky barrier planar technology for efficient operation.
- Maximum continuous forward current of 15 A with peak non-repetitive forward surge current of 150 A.
- Operating temperature range from -55°C to 150°C for versatile applications.
- Offers very low peak reverse current and reduced electromagnetic interference.
- Complies with RoHS standards ensuring environmental safety.
- Suitable as companion diode for IGBTs and MOSFETs in power electronics and industrial applications.
Product Description
Vishay VS-HFA15PB60-N3 is a high-performance ultrafast recovery rectifier diode rated at 600 V peak reverse voltage and 15 A maximum continuous forward current. Packaged in a 2-pin TO-247AC through-hole configuration, this device features advanced Schottky barrier planar technology, enabling exceptionally fast and soft recovery characteristics under varying diF/dt conditions.
This diode exhibits a peak reverse recovery time of 60 ns and a maximum forward voltage drop of 2 V, which contributes to reduced switching losses and improved efficiency in power electronic circuits. Its wide operating temperature range from -55°C to 150°C offers reliable function across demanding industrial and automotive environments.
The compact physical dimensions (length 15.9 mm, width 5.3 mm, height 20.7 mm) facilitate easy integration into PCB designs requiring moderate footprint space. Additionally, the device achieves very low peak reverse current (10 μA) and peak non-repetitive surge current capability of 150 A, making it robust against transient conditions.
Compliant with RoHS directives, this component ensures environmentally responsible manufacturing. It is ideally suited for applications such as power supplies, inverter circuits, renewable energy systems, and as a companion diode for IGBTs and MOSFETs in industrial automation, HVAC, commercial power equipment, and laboratory instrumentation.
Designed for ultrafast recovery and very low reverse recovery charge. Soft recovery reduces electromagnetic interference and radio frequency interference. Lower switching losses enhance power efficiency and thermal management.
Robust surge current handling for high transient protection. Compact TO-247AC package supports efficient heat dissipation. Wide operational temperature range ensures stable performance. RoHS compliant for environmentally friendly applications.
Perfect for industrial, commercial, and laboratory power electronics. Explore Vishay semiconductors and other advanced discrete components in the Electronics & Electricals category at EnvMart for reliable, high-quality power solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-HFA15PB60-N3 diode is 15 A.
This diode is rated for a peak reverse voltage of 600 V.
The operating temperature range for this diode is from -55°C to 150°C.
The Vishay VS-HFA15PB60-N3 comes in a 2-pin TO-247AC package type.
The peak reverse recovery time for this model is 60 ns.
The maximum forward voltage drop is 2 V.
The diode has a peak non-repetitive forward surge current rating of 150 A.
The peak reverse current for the VS-HFA15PB60-N3 is 10 μA.
The dimensions are 15.9 mm in length, 5.3 mm in width, and 20.7 mm in height.
Yes, this diode complies with RoHS standards, ensuring environmental safety.
It is suitable for applications such as power supplies, inverter circuits, and as a companion diode for IGBTs and MOSFETs in industrial automation.
This model is a switching diode with a single diode configuration.
