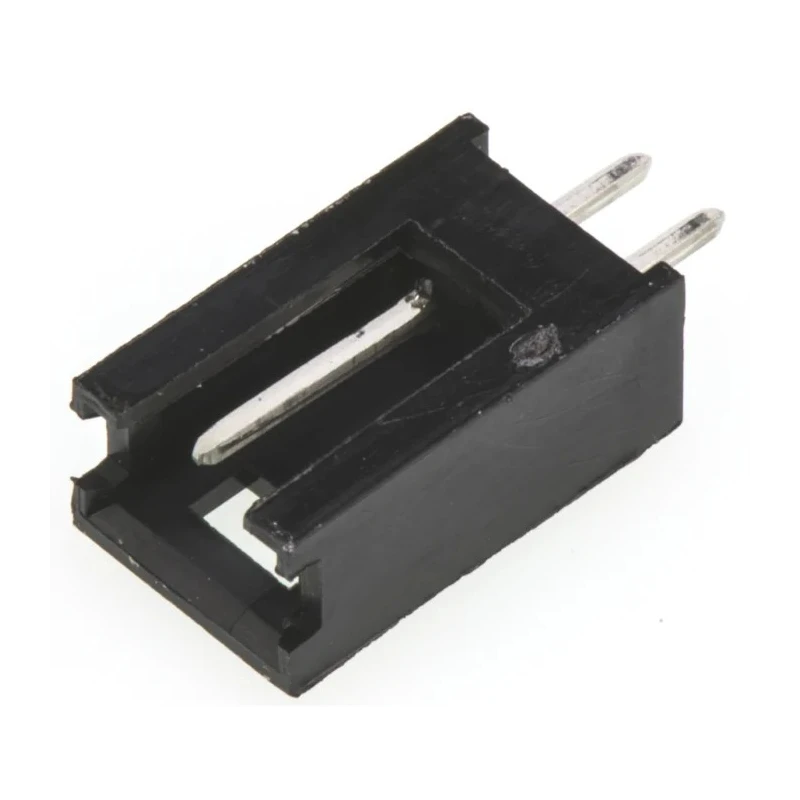

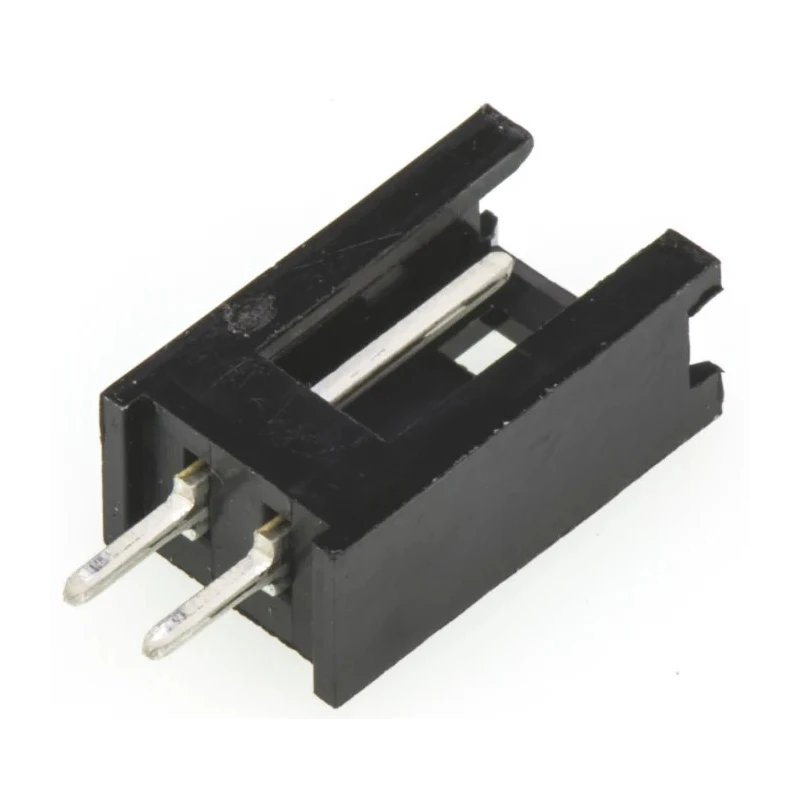

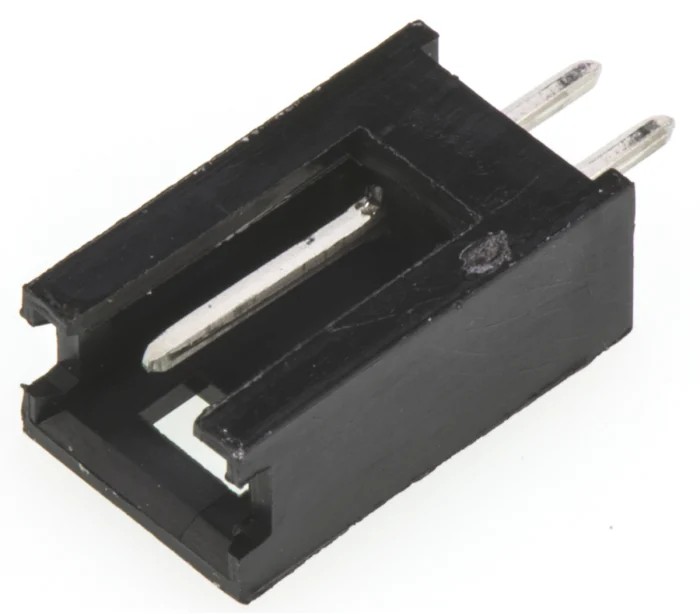

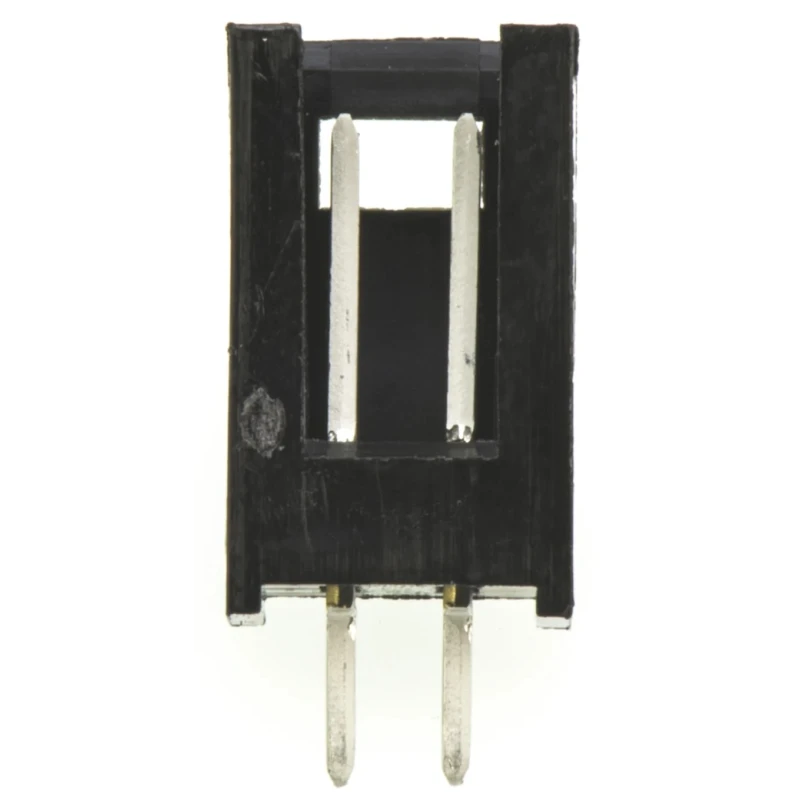

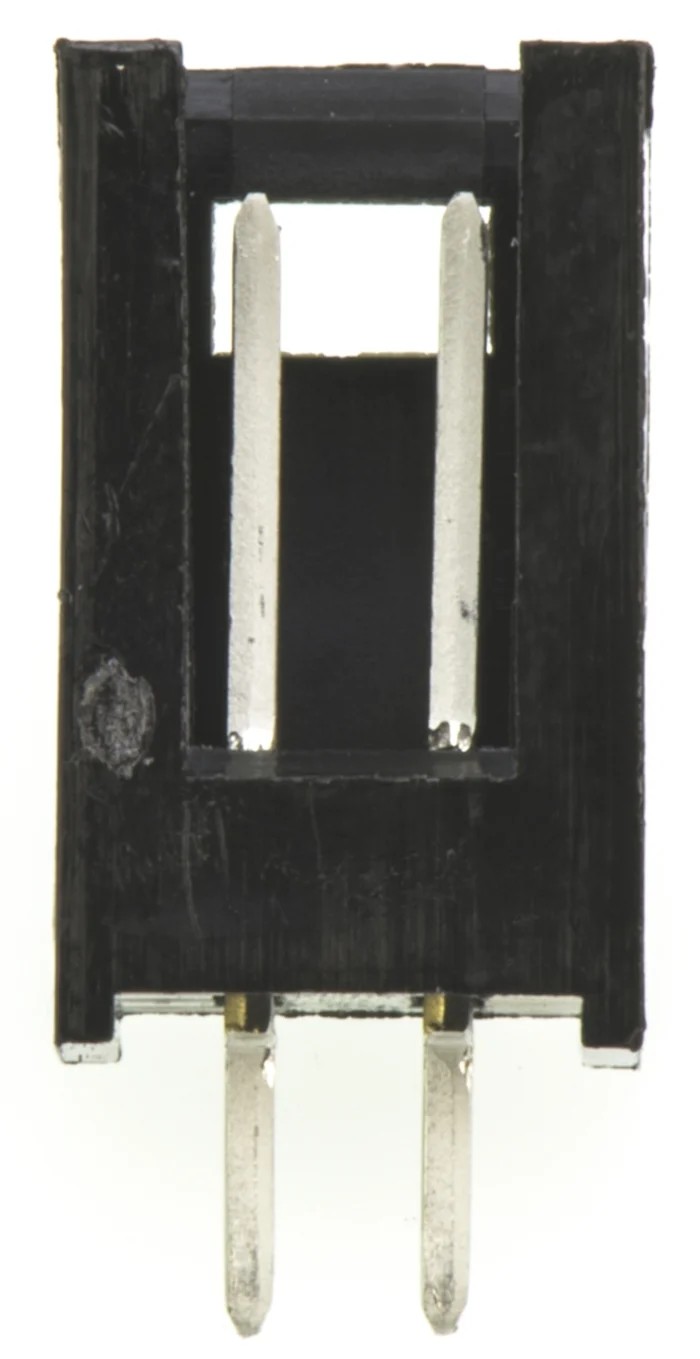

TE Connectivity AMPMODU Mod II Series Straight Through Hole Shrouded PCB Header, 2 Contacts, 2.54 mm Pitch, 1 Row 280370-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 280370-1 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- The header features a 2.54 mm pitch for precise alignment on PCBs.
- Shrouded design protects pins and ensures polarization to prevent mismating.
- Constructed with thermoplastic housing and phosphor bronze contacts plated with tin.
- Supports through hole mounting and straight orientation for versatile PCB assembly.
- Operates reliably from -65°C up to 105°C with a voltage rating of 750V.
- Includes a detent positive locking mechanism for secure connections.
- Tail pin length of 3.5 mm facilitates solder termination.
- Ideal for automotive controls, industrial equipment, telecommunications, medical instruments, and storage devices.
Product Description
TE Connectivity 280370-1 AMPMODU Mod II Series Straight Through Hole Shrouded PCB Header features 2 contacts with a 2.54 mm pitch in a single row configuration. Designed for robust and reliable interconnect solutions, it supports both board-to-board and wire-to-board applications with a polarized shrouded housing to prevent mismating.
The thermoplastic housing provides mechanical protection and durability, while the phosphor bronze contact material with tin plating ensures excellent electrical conductivity and corrosion resistance. The straight orientation with through hole mounting allows for firm placement on printed circuit boards, with a tail pin length of 3.5 mm ideal for soldered connections.
This header is rated for operation between -65°C and 105°C temperature ranges and supports voltages up to 750V, making it suitable for a wide array of industrial, automotive, telecommunications, medical instrumentation, and storage appliance applications. The detent positive locking mechanism offers additional security to maintain connector integrity under vibration and other environmental stresses.
The AMPMODU Mod II Interconnect System is recognized for its compact, economical, and highly reliable design which makes it a preferred choice for automation and control solutions in demanding industrial and electronic systems.
The header flange is shrouded on three sides for pin protection and correct mating. Polarization ensures connectors are correctly aligned, avoiding damage or misconnection. Detent locking mechanism provides secure connections that resist dislodgement.
Thermoplastic housing materials ensure durability against mechanical and thermal stresses. Phosphor bronze contacts with tin plating provide longevity and stable electrical performance. Suitable for through hole mounting with a tail pin length optimized for solder termination.
Temperature and voltage ratings support a broad range of electronic applications. Commonly used in automotive control modules, industrial and test equipment, computer hardware, telecommunications, and medical devices. Explore the range of PCB Headers at EnvMart for industrial-grade electronic components engineered for high reliability and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 2.54 mm, allowing for precise alignment on printed circuit boards.
This model operates reliably at a maximum temperature of 105°C.
It has a voltage rating of 750V, making it suitable for various electrical applications.
The housing is made of thermoplastic, and the contacts are made of phosphor bronze with tin plating for improved conductivity and corrosion resistance.
This PCB header features 2 contacts in a single row configuration.
It supports through hole mounting, which allows for secure placement on PCBs.
The tail pin length is 3.5 mm, which is optimized for solder termination.
This model has a straight orientation, facilitating easy connections in various applications.
It is suitable for automotive controls, industrial equipment, telecommunications, medical instruments, and storage devices.
It includes a detent positive locking mechanism that ensures secure connections and helps maintain integrity under vibration.
Yes, it features a shrouded design that protects the pins and ensures polarization to prevent mismating.
This header supports both board-to-board and wire-to-board connector systems, providing versatility in applications.
