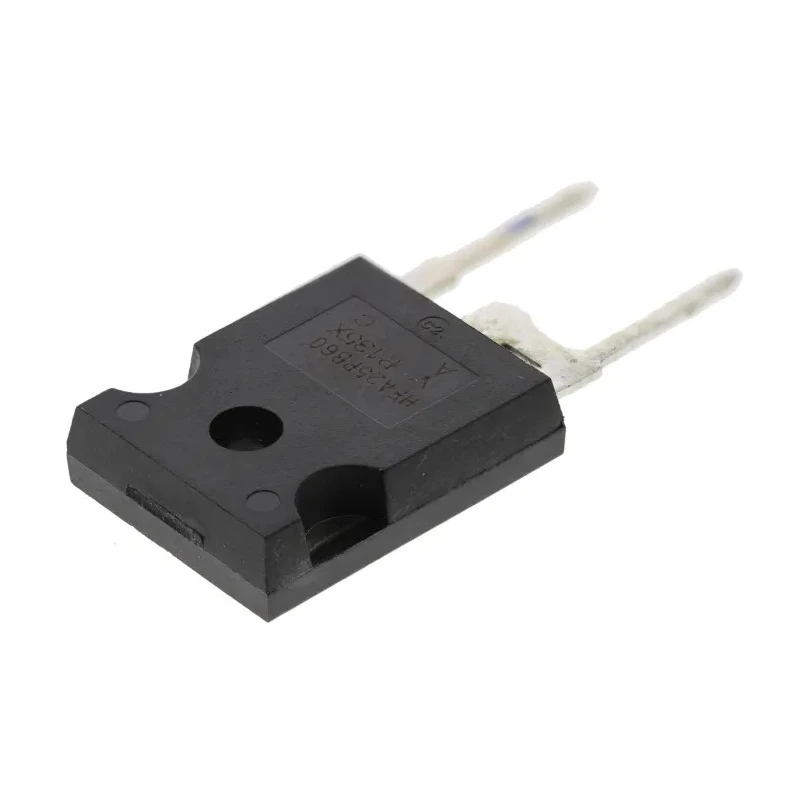

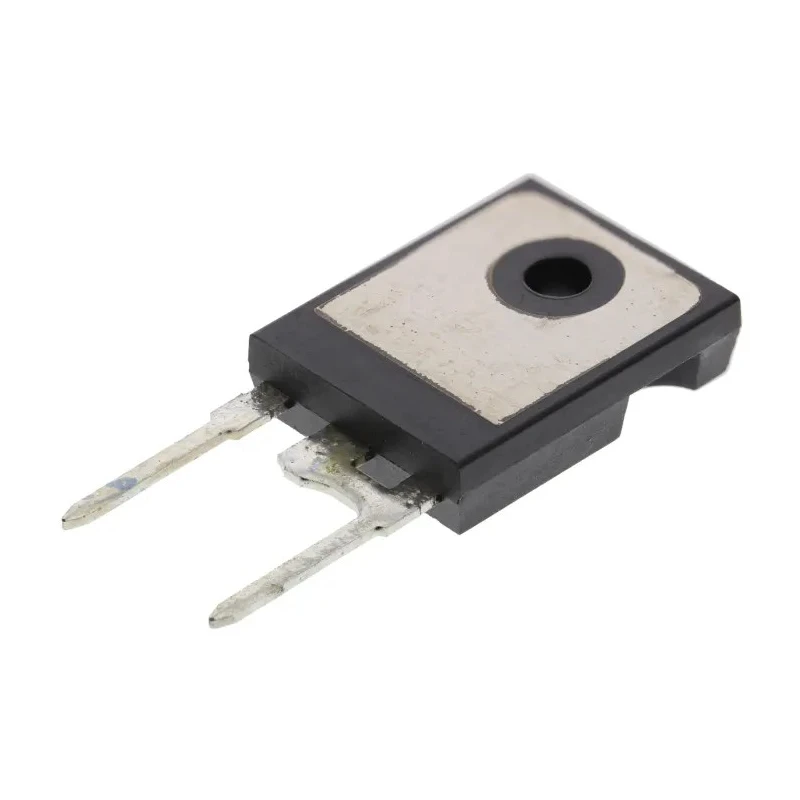

Vishay Ultrafast Recovery Switching Diode 600 V 25 A 2-Pin TO-247AC VS-HFA25PB60-N3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.9mm |
| Model | VS-HFA25PB60-N3 |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | VSX |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247AC |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 25A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 225A |
| Maximum Forward Voltage Vf | 2V |
| Peak Reverse Recovery Time trr | 75ns |
| Diode,Rectifier,HFA25PB60Brand | Vishay |
Key Features
- Designed for high-speed switching applications with ultrafast recovery time.
- Features soft and fast recovery behavior suitable for IGBTs and MOSFETs.
- Offers very low peak reverse current and reduced power loss.
- Package type supports through-hole mounting for easy PCB integration.
- Operates reliably between -55°C and 150°C temperature range.
- Provides reduced electromagnetic interference and radio frequency interference.
- Peak surge current handling of 225 A ensures high transient tolerance.
- Complies with RoHS standards for environmental safety.
Product Description
Vishay VS-HFA25PB60-N3 ultrafast recovery switching diode offers a robust 600 V peak reverse voltage and 25 A maximum continuous forward current in a TO-247AC, 2-pin through-hole package. Engineered with HEXFRED® ultrafast recovery and soft recovery technology, it enables superior switching efficiency and low electromagnetic interference, critical for modern power semiconductor circuits.
This diode features very low peak reverse current (20 μA) and a minimal peak reverse recovery time of 75 ns, making it suitable as a companion diode for IGBTs and MOSFETs in power converters and inverters. With a maximum operating temperature of 150°C and minimum operating temperature of -55°C, it ensures reliable performance in harsh industrial environments.
The diode's 2-pin TO-247AC package supports through-hole mounting, simplifying integration into printed circuit boards for power electronics, industrial equipment, and semiconductor applications. With a peak non-repetitive forward surge current rating of 225 A, it accommodates transient load spikes effectively.
Primary applications include power supplies, motor drives, switch mode power supplies, and other circuits requiring fast switching diodes with low power loss and noise reduction. The compact dimensions of 20.7 mm height, 15.9 mm length, and 5.3 mm width support dense assembly.
Ultrafast recovery time and ultrasoft recovery characteristics reduce switching losses. Low reverse leakage current increases efficiency and thermal performance. Reduced radio frequency and electromagnetic interference minimizes circuit noise.
High surge current capability enhances reliability under transient conditions. RoHS compliant ensuring environmentally friendly manufacturing.
Choose Vishay VS-HFA25PB60-N3 diode for demanding industrial, power electronics, and semiconductor switching applications. Explore our extensive semiconductor category for complementary components and parts.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-HFA25PB60-N3 diode is 25 A.
This diode has a peak reverse voltage rating of 600 V.
It comes in a TO-247AC package type and supports through-hole mounting.
The peak reverse recovery time is 75 ns.
The operating temperature range is from -55°C to 150°C.
The diode has a peak non-repetitive forward surge current rating of 225 A.
The peak reverse current is specified at 20 μA.
This diode is suitable for applications in power supplies, motor drives, and switch mode power supplies.
The maximum forward voltage drop is 2 V.
It features ultrafast recovery and soft recovery technology that reduces electromagnetic interference.
Yes, the Vishay VS-HFA25PB60-N3 diode complies with RoHS standards for environmental safety.
The physical dimensions are 20.7 mm in height, 15.9 mm in length, and 5.3 mm in width.
