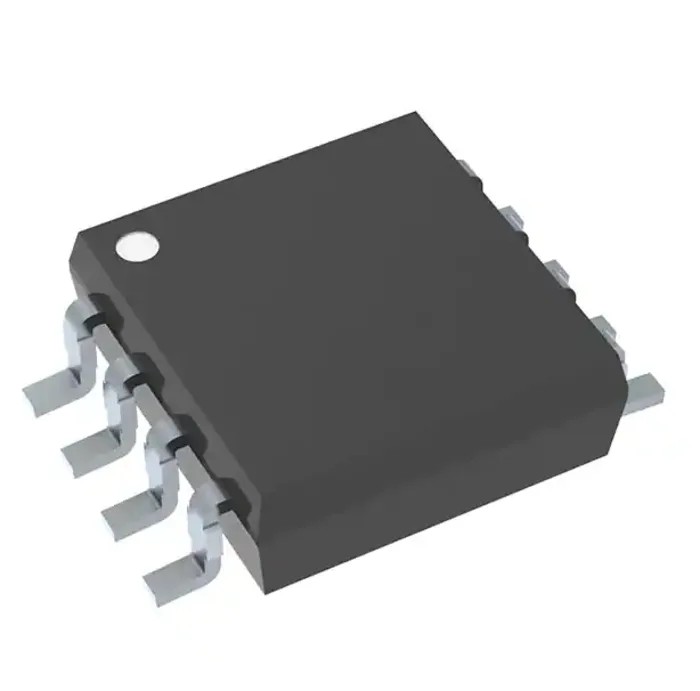

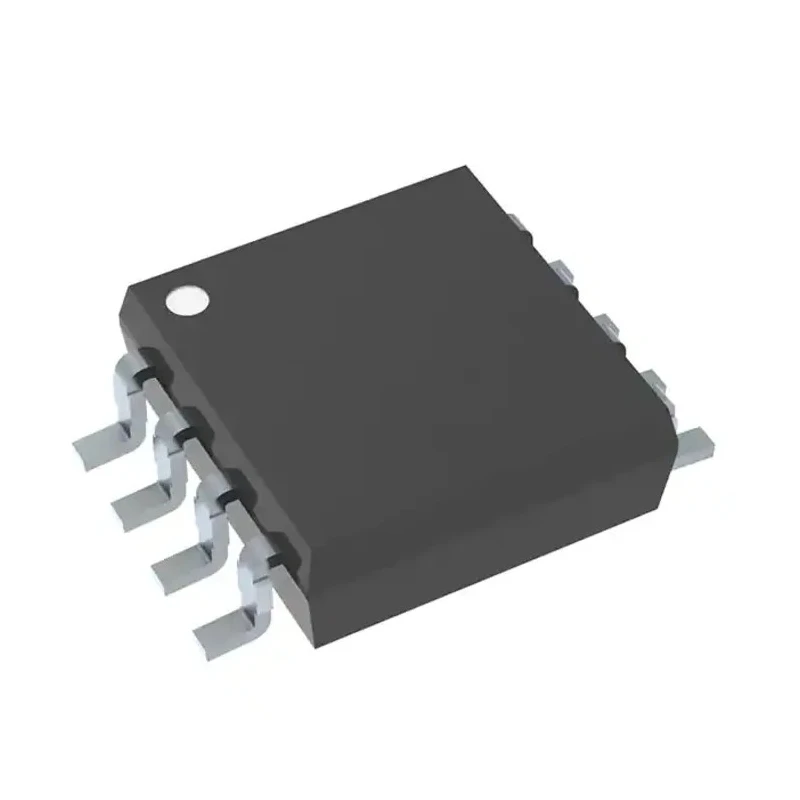

Nisshinbo Micro Devices Operational Amplifier 1 MHz, 8-Pin TVSP, 14V NJM8532RB1-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM8532RB1-TE1 |
| Mount Type | Surface |
| Series | NJM8532 |
| Maximum Operating Temperature | 125°C |
| Package Type | TVSP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | EIA/JDEC |
| Pin Count | 8 |
| Maximum Supply Voltage | 14V |
| Minimum Supply Voltage | 15V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 250 nA |
| Vos - Input Offset Voltage | 4 mV |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 100 nA |
Key Features
- Supports dual channels in a compact 8-pin surface mount design.
- Operates with a supply voltage up to 14V for versatile applications.
- Features low input offset voltage of 4 mV for precise amplification.
- Low input bias current of 250 nA suitable for sensitive signal processing.
- Wide operating temperature range from -40°C to 125°C ensures reliability.
- Slew rate of 0.4 V/μs allows moderate signal response speeds.
- Compliant with EIA/JDEC standards for quality and compatibility.
- Based on bipolar technology for low noise and power consumption.
Product Description
Nisshinbo Micro Devices NJM8532RB1-TE1 is a dual-channel operational amplifier housed in an 8-pin TVSP surface-mount package, featuring a gain bandwidth of 1 MHz and a maximum supply voltage of 14V. This device leverages bipolar technology to deliver low noise and low power consumption performance.
The operational amplifier supports a wide operating temperature range from -40°C to 125°C, making it suitable for diverse industrial and electronic applications, including audio amplification, high side current sensing, buffering, and other signal conditioning tasks. The amplifier's low input offset voltage of 4 mV and input bias current of 250 nA ensure precise and stable operation in sensitive circuits.
With a moderate slew rate of 0.4 V/μs, it balances speed and accuracy for typical signal amplification needs. The NJM8532RB1-TE1 meets EIA/JDEC standards, assuring compliance and reliability in electronic circuit designs. However, it is not rated for automotive standards, limiting its deployment to general industrial and consumer electronics sectors.
Supports dual channels in a compact 8-pin TVSP package. Maximum supply voltage of 14V for varied applications. Low input offset voltage of 4 mV for accuracy. Input bias current of 250 nA for sensitive signals. Wide operating temperature range -40°C to 125°C for durability.
Slew rate of 0.4 V/μs suitable for moderate speed signals. Complies with EIA/JDEC standards for quality. Bipolar technology ensures low noise and power use. Ideal for audio amplifiers, current sensing, and buffering. Not certified for automotive use.
This Operational Amplifier is ideal for industrial, electronics manufacturing, laboratory, and consumer electronics applications where reliable and precise amplification is required. Explore our extensive range of semiconductor components at EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz, allowing it to effectively amplify signals within that range.
The maximum supply voltage for the NJM8532RB1-TE1 is 14V, enabling versatile applications across various electronic circuits.
It features a low input offset voltage of 4 mV, which contributes to precise amplification in sensitive applications.
This operational amplifier operates within a wide temperature range from -40°C to 125°C, ensuring reliability in diverse environments.
This model supports dual channels, making it suitable for various applications requiring multiple signal paths.
The input bias current is 250 nA, which is suitable for sensitive signal processing tasks.
The slew rate of this operational amplifier is 0.4 V/μs, allowing for moderate speed signal responses.
It is housed in an 8-pin TVSP surface-mount package, which is compact and suitable for space-constrained applications.
Yes, it complies with EIA/JDEC standards, ensuring quality and compatibility in electronic circuit designs.
This operational amplifier is based on bipolar technology, which helps in achieving low noise and power consumption.
It is suitable for applications such as audio amplification, high side current sensing, buffering, and other signal conditioning tasks.
The country of origin for this operational amplifier is India.
