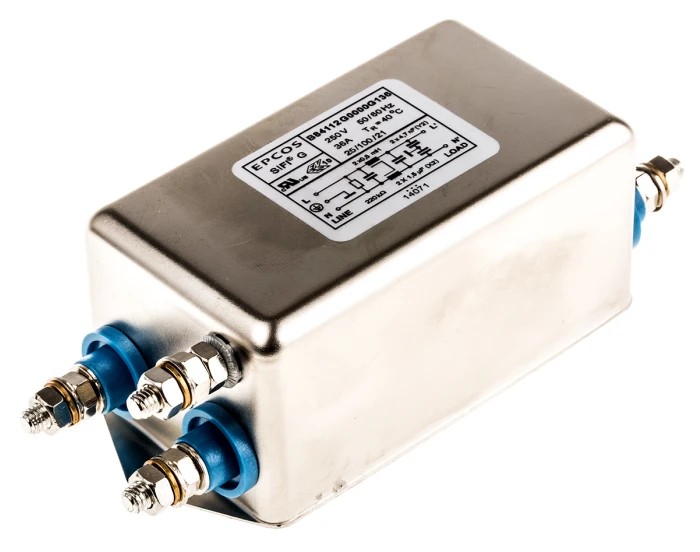

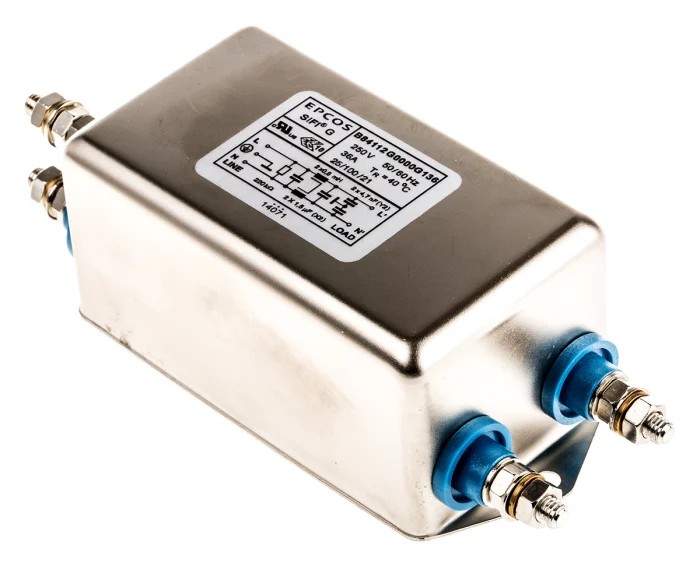

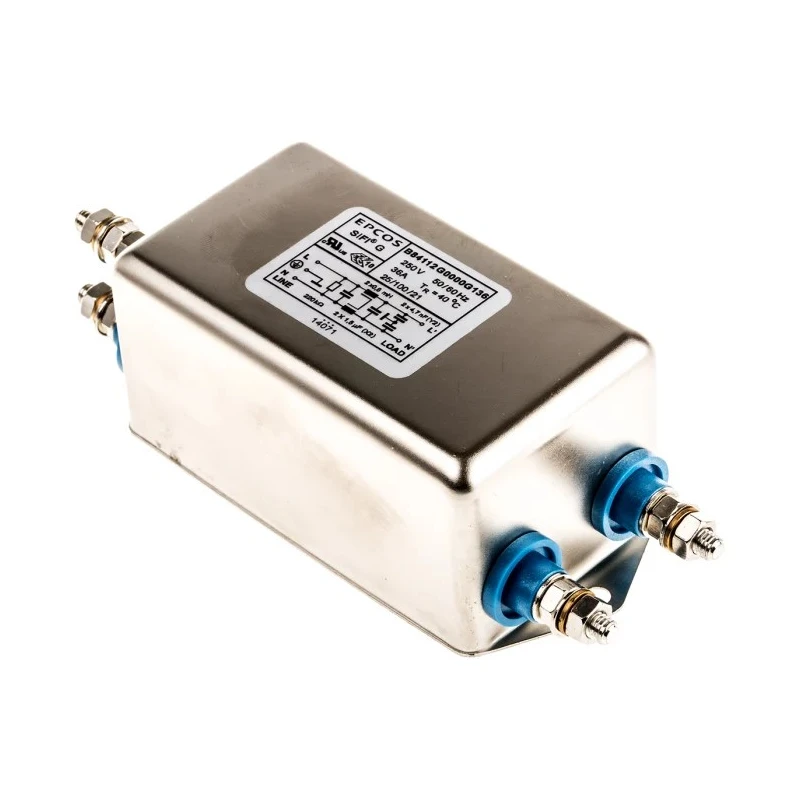

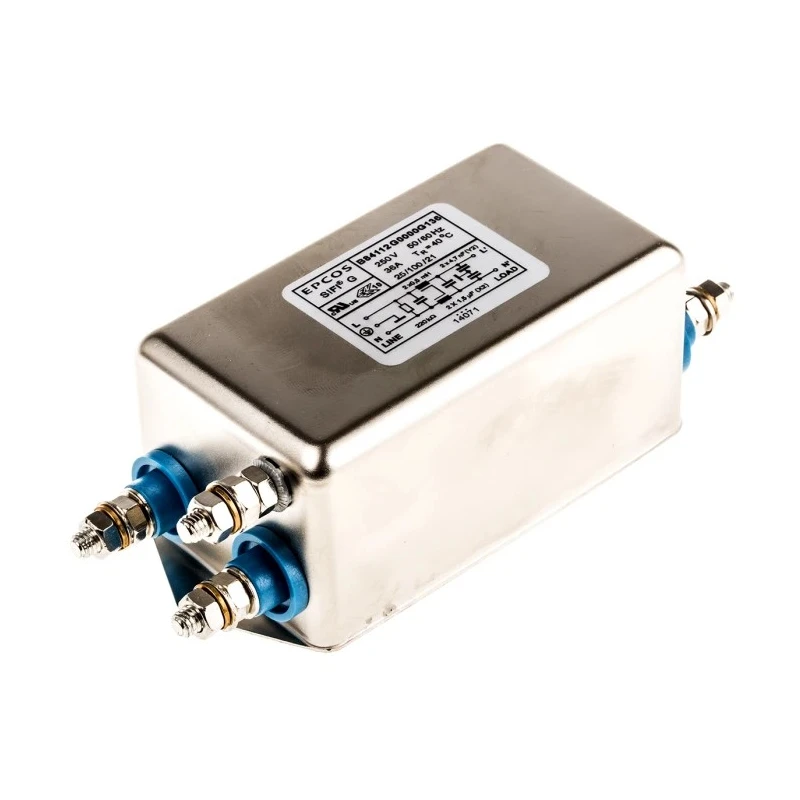

TDK Chassis Mount EMC Filter 36A 250V ac/dc 50Hz, 60 Hz Screw Termination Single Phase B84112G0000G136
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 43mm |
| Length | 52mm |
| Model | B84112G0000G136 |
| Depth | 135mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | B84112G |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Capacitance | 2pF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 36A |
| Number of Phases | 1 |
| Leakage Current | 369μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 2mH |
| Standards/Approvals | UL 1283 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 237-8694Brand: RS PRO |
| Termination Style | Screw |
Key Features
- Compact design includes two line filters housed in a metal case.
- Supports a maximum current of 36 amperes and voltage up to 250 volts ac or dc.
- Operates within a temperature range of -25°C to 100°C.
- Features a capacitance of 2 picofarads and inductance of 2 millihenries.
- Has a leakage current of 369 microamperes ensuring safety compliance.
- Constructed for easy chassis mounting with screw termination style.
- UL 1283 standard approved for industrial and electronic applications.
- Ideal for use in industrial electronics, telecom, data systems, medical equipment, and DC applications.
Product Description
TDK B84112G0000G136 is a chassis mount EMC filter designed for single-phase electrical systems operating at 50 Hz and 60 Hz frequencies. Rated for a maximum current of 36 amperes and voltage of 250 V ac/dc, this filter ensures effective suppression of electromagnetic interference for sensitive electronics.
The filter features a compact design comprised of two line filters contained within a robust metal case, providing enhanced durability and ease of installation. Screw termination style provides reliable electrical connection and mounting security.
Operational temperature range spans from -25°C to a high of 100°C, making it suitable for demanding industrial environments. The capacitance rating is 2 pF with an inductance of 2 mH, accompanied by a leakage current specification of 369 μA to maintain electrical safety.
Compliance with UL 1283 standards underlines its qualification for use in a wide variety of sectors including industrial electronics, switch-mode power supplies, telecommunications, data systems, medical devices (including specialized variants), and various DC applications.
Compact dual line filter design housed in metal enclosure. Rated maximum current of 36 A with 250 V ac/dc voltage rating. Suitable for single phase systems with screw termination. Operational temperature: -25°C to 100°C.
Low leakage current and high insertion loss for EMI suppression. Meets UL 1283 standards for EMI filters. Applicable in industrial, telecom, medical and electronic equipment.
The product is manufactured in China and leverages TDK’s reputation for reliable, high quality power line filtering solutions. This EMC Filter is essential for maintaining electromagnetic compatibility and protecting sensitive electronic components in harsh industrial settings.
Explore EnvMart’s comprehensive catalog for more specialized filters and electronic components from trusted global brands like TDK.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMC filter is 36 amperes.
It supports a maximum voltage of 250 volts ac or dc.
This model operates at frequencies of 50 Hz and 60 Hz.
The dimensions of the filter are 135 mm in depth, 52 mm in length, and 43 mm in height.
The leakage current for this filter is specified at 369 microamperes.
The operational temperature range spans from -25°C to 100°C.
It features a screw termination style for reliable electrical connection.
This filter complies with UL 1283 standards.
The inductance rating of this EMC filter is 2 millihenries.
The capacitance of this filter is rated at 2 picofarads.
It is suitable for use in industrial electronics, telecommunications, data systems, and medical equipment.
This filter is designed for chassis mounting.
