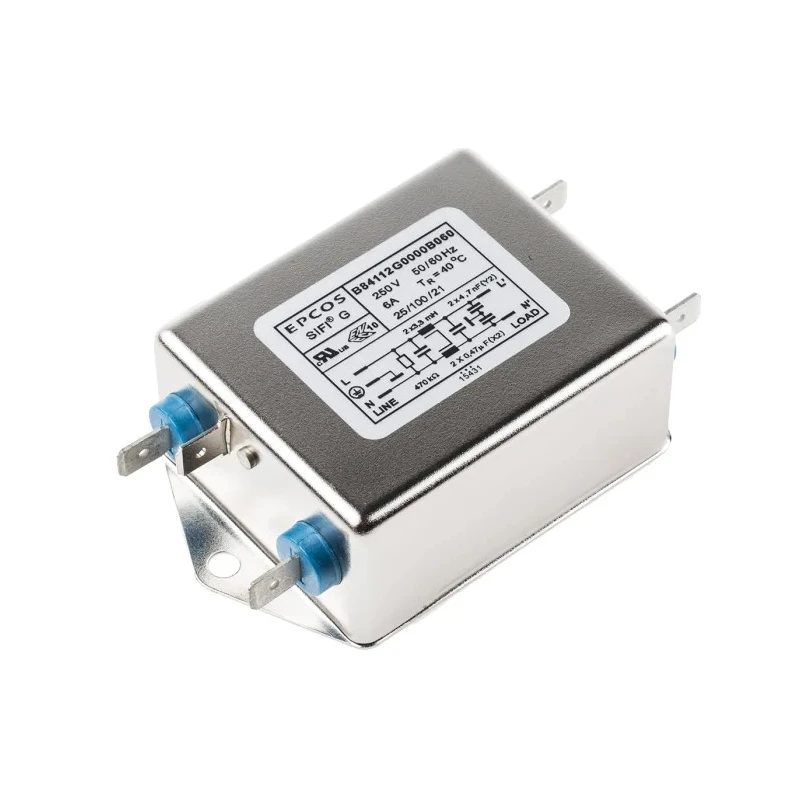

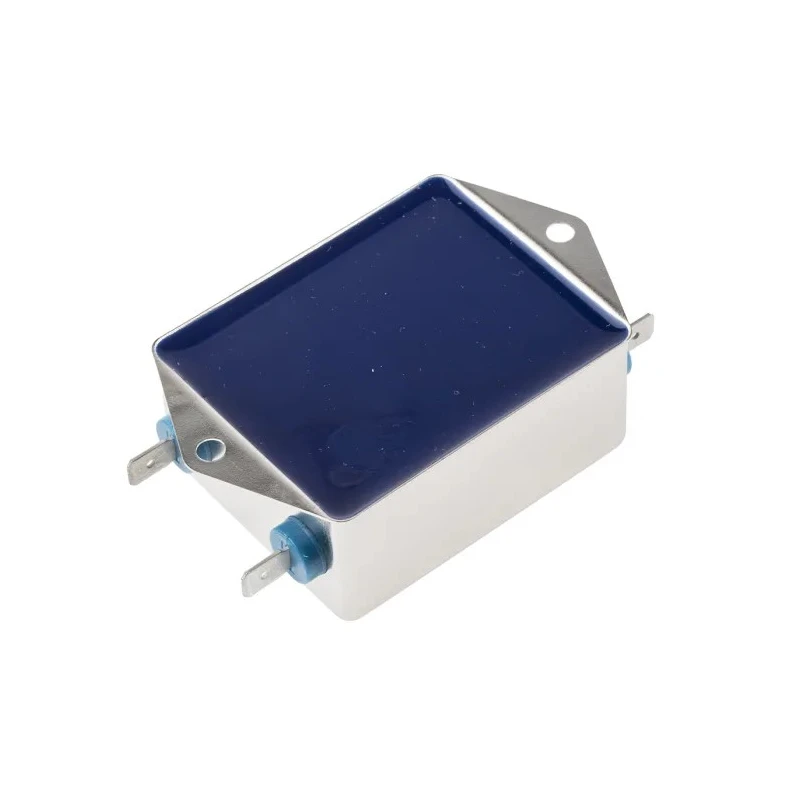

TDK Chassis Mount EMC Filter 6 A 250V AC 50Hz 60Hz Screw Termination Single Phase B84112G0000B060
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 29mm |
| Length | 52mm |
| Model | B84112G0000B060 |
| Depth | 89.5mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | B84112G |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Capacitance | 2pF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 6A |
| Number of Phases | 1 |
| Leakage Current | 369μA |
| Maximum Voltage | 250V ac |
| Inductance | 2mH |
| Standards/Approvals | UL 1283 |
| Termination Style | Screw |
Key Features
- Compact design enables easy installation in industrial electronics.
- Constructed with two line filters enclosed in a robust metal case.
- Mounting is chassis type, terminated via screws for secure connections.
- Operates efficiently within a temperature range of -25°C to 100°C.
- Ideal for use in switch-mode power supplies and telecom systems.
- Features a low leakage current of 369μA ensuring energy efficiency.
- Leakage inductance of 2mH and capacitance of 2pF support effective EMI noise suppression.
- Compliant with UL 1283 safety and performance standards.
Product Description
TDK B84112G0000B060 is a high-quality chassis mount EMC filter designed for single-phase power line filtering in industrial and electronic equipment. Rated for a maximum current of 6 A and a maximum voltage of 250 V AC, it effectively suppresses electromagnetic interference (EMI) ensuring reliable operation in sensitive applications.
The filter comprises two line filters within a durable metal enclosure, providing enhanced insertion loss (SIFI-G technology) for improved noise reduction. Its compact dimensions (52mm length, 89.5mm depth, 29mm height) and screw termination style facilitate secure and easy chassis installation.
Operating over a frequency range of 50Hz to 60Hz, this filter maintains performance across different power systems. The device is engineered to operate safely in environments from -25°C up to 100°C, making it suitable for varied industrial conditions.
With a capacitance of 2pF, inductance of 2mH, and a minimal leakage current of 369μA, the EMC filter provides effective suppression of power line noise, protecting connected electronic and telecom equipment from EMI disturbances.
Applications include industrial electronics, switch-mode power supplies, telecom systems, data systems, DC applications, and medical equipment (specific variants). Compact design enables easy installation in industrial electronics.
Two line filters in a metal case optimize EMI suppression. Screw termination ensures secure and reliable mounting. Suitable for 6 A max current and 250 V AC max voltage. Designed for single-phase, 50Hz and 60Hz power line frequencies.
Wide operating temperature range from -25°C to 100°C. Low leakage current improves efficiency and safety. Compliant with UL 1283 standard for EMC filters. Dimensions allow fitment in compact chassis spaces. Manufactured in China under new product condition.
This TDK EMC Filter is ideal for users seeking reliable EMI noise filtering in demanding industrial and electronic applications. Explore more power line filtering solutions in the Electronics Components category on EnvMart for enhanced system protection and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMC filter is 6 A.
This model operates at a maximum voltage of 250 V AC.
It operates efficiently within a temperature range of -25°C to 100°C.
The filter features a screw termination style for secure connections.
The dimensions are 52mm in length, 89.5mm in depth, and 29mm in height.
The leakage current is 369μA, which helps improve energy efficiency.
It has an inductance value of 2mH.
The capacitance of this filter is 2pF.
It is suitable for applications in industrial electronics, switch-mode power supplies, telecom systems, and medical equipment.
This model is compliant with UL 1283 safety and performance standards.
This EMC filter is designed for single-phase applications.
It operates over a frequency range of 50Hz to 60Hz.
