Panasonic ECHU(X) Film Capacitor 4.7 nF 50V DC 50V AC Surface Mount ECHU1H472GX5

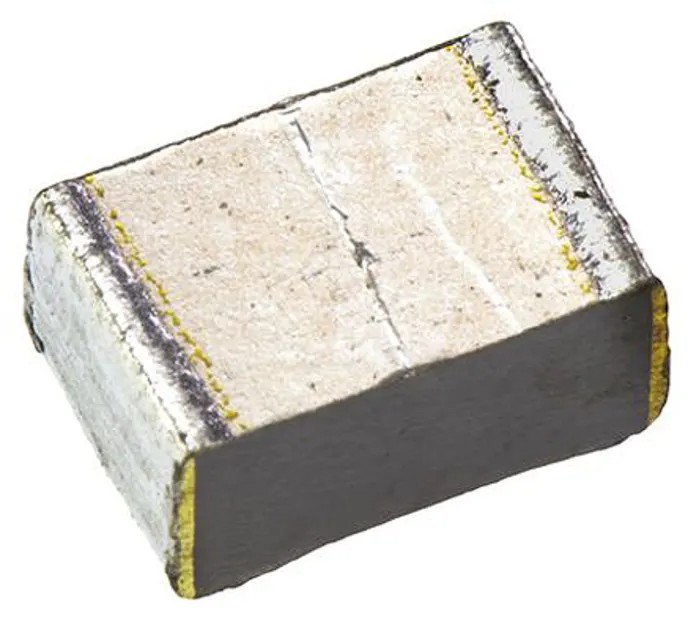

Panasonic ECHU1H472GX5 film capacitor is a surface mount PPS film capacitor with a capacitance of 4.7 nF. Rated at 50V DC and 50V AC, this compact capacitor features a mould-less construction built from stacked metallised PPS film which guarantees durability and reliability under demanding conditions.

Designed to withstand a maximum operating temperature of 125°C, the capacitor supports reflow soldering, making it compatible with modern PCB assembly processes. Its lightweight and compact design optimize space usage in electronic circuits.

This film capacitor exhibits a low equivalent series resistance (ESR), ensuring stable performance in oscillation, resonance, filtering, and audio circuits. It is recommended for time-constant applications where precise capacitance behavior is critical.

Dimensions include a length of 3.2 mm, width of 1.6 mm, and height of 0.9 mm, suitable for surface mounting on PCBs. The device complies with RoHS regulations, supporting environmentally friendly electronics manufacturing.

Typical industrial applications encompass electronic circuit designs within power and passive components segments, especially where film capacitors are preferred for their stability and low loss characteristics.

Constructed from stacked metallised PPS film ensuring high reliability. Mould-less structure designed for compactness and lightweight. Can withstand maximum operating temperature up to 125°C. Suitable for reflow soldering processes.

Low equivalent series resistance enhances performance in oscillation and filtering circuits. Recommended for audio, resonance, and time-constant applications. Conforms to RoHS standards ensuring environmental compliance.

Dimensions are 3.2 mm length, 1.6 mm width, and 0.9 mm height. Browse our comprehensive range of Film Capacitors at EnvMart for quality and reliable electronic components for your industrial and laboratory needs.
