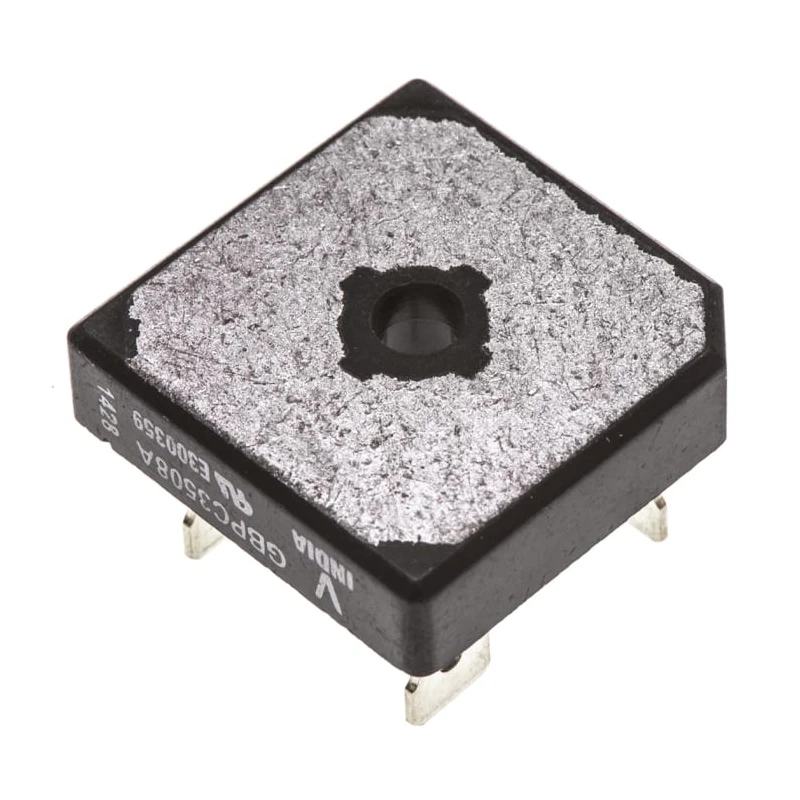

Vishay Single Phase Bridge Rectifier, 800 V Peak Reverse Repetitive Voltage, 500 A Peak Non-Repetitive Forward VS-GBPC3508A

Vishay VS-GBPC3508A single phase bridge rectifier is designed for converting alternating current (AC) to direct current (DC) with full-wave rectification suitable for industrial and instrumentation uses. It supports a peak reverse repetitive voltage of 800 V and a peak non-repetitive forward surge current of 500 A, making it ideal for demanding environments where reliable and efficient power conversion is required.

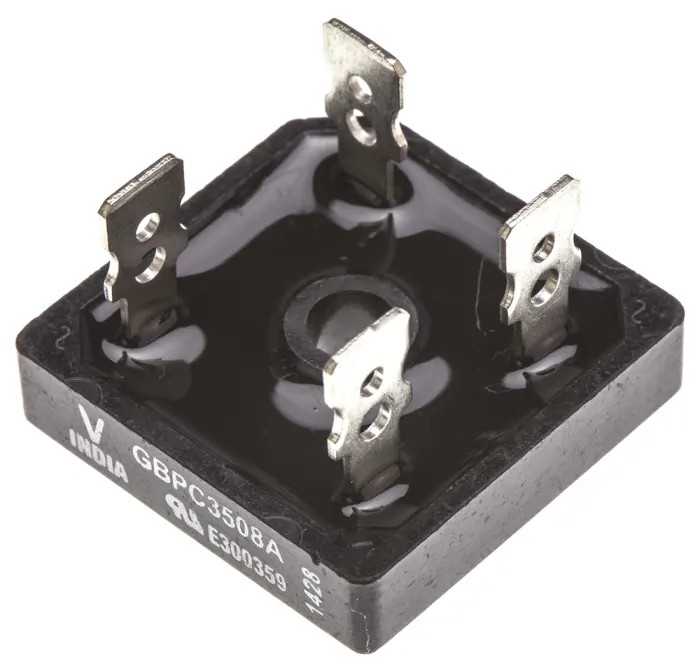

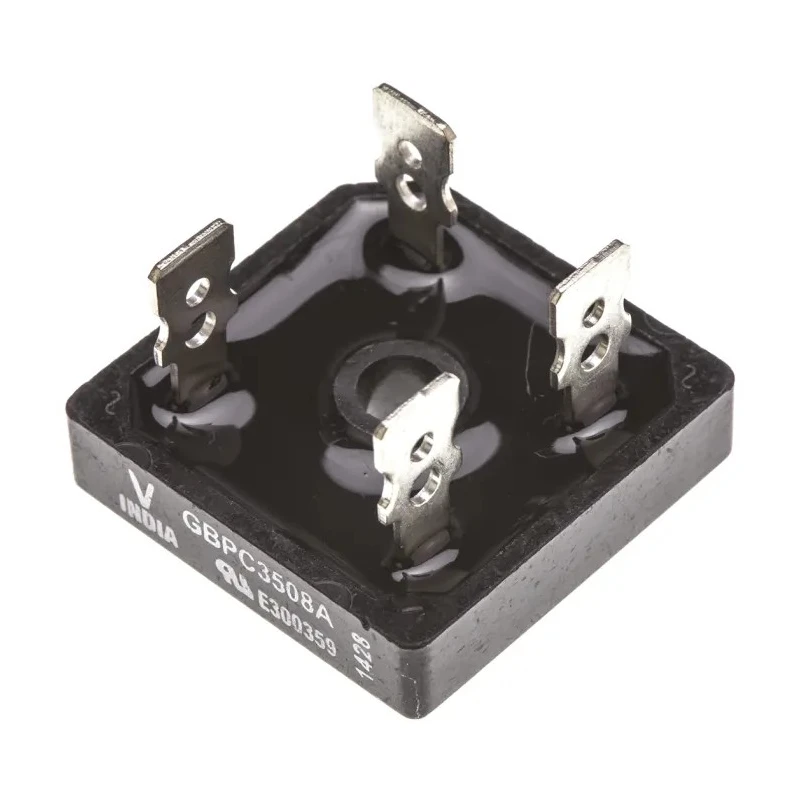

The device features a compact and high thermal conductivity GBPC package with universal 3-way terminals allowing for flexible mounting options such as push-on, wrap-around, or solder mounting. The diode chips are glass passivated ensuring durability and stable performance over wide temperature ranges from -55°C to 150°C.

The positive polarity is clearly indicated on the molded plastic case, while nickel plated terminals ensure compatibility with lead-free solder (SAC305 alloy) for environmentally compliant assembly processes. The rectifier is carefully engineered to provide an excellent power-to-volume ratio, supporting a forward current of 35 A and maintaining low forward voltage drop with a peak forward voltage of 1.1 V.

This rectifier series is UL E300359 approved and meets stringent quality standards for use in both industrial machinery and consumer electronics. Its rugged build and reliable electrical characteristics make it suitable for bridge rectification applications requiring durability and precision performance across various sectors including electrical equipment manufacturing, industrial controls, and instrumentation.

Supports a maximum forward current of 35 A ensuring reliable conduction. Operates efficiently between -55°C and 150°C temperature range. Encapsulated GBPC package with 28.6 mm length, 28.6 mm width and 7.7 mm height. Equipped with universal 3-way terminals including push-on, wrap-around, or solder mounting options.

Features glass passivated diode chips providing excellent power to volume ratio. Nickel plated terminals compatible with lead-free solder standards. Positive polarity symbol molded on the plastic case for easy identification.

Designed and qualified for both industrial and consumer applications. For electrical and semiconductor components, explore more quality products in the Bridge Rectifier category at EnvMart for industrial-grade power conversion solutions.
