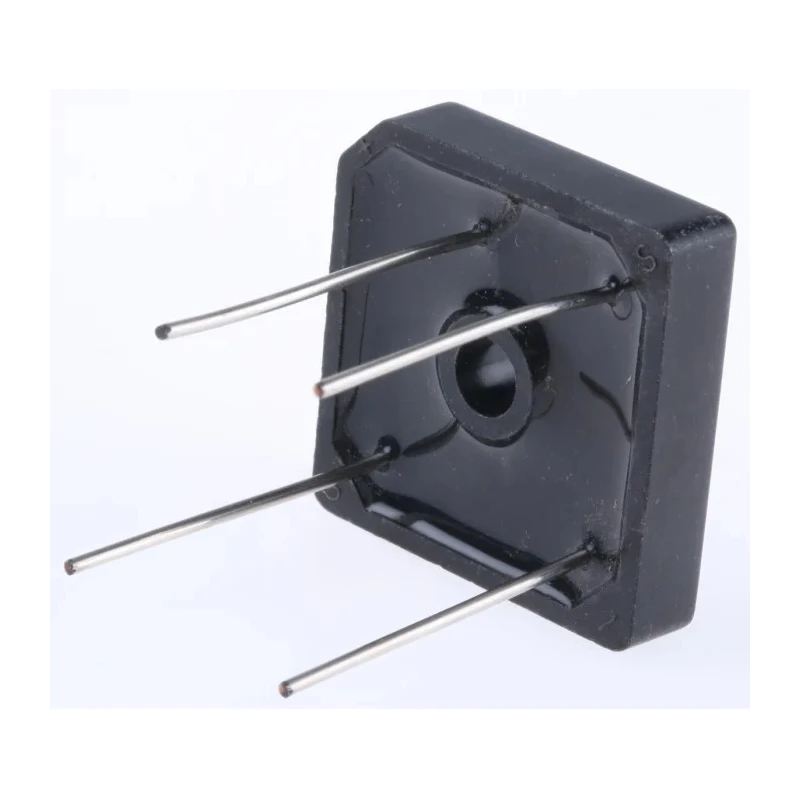

Vishay Bridge Rectifier 800 V 400 A 4-Pin Single Through Hole GBPC Package VS-GBPC3508W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 7.62mm |
| Length | 28.8mm |
| Model | VS-GBPC3508W |
| Width | 28.8mm |
| Mount Type | Through Hole |
| Series | VS-GBPC |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.1V |
| Vishay Bridge Rectifier, 600 V 400 A, 4-Pin SingleBrand | Vishay |
Key Features
- Operates at a peak reverse repetitive voltage of 800 V.
- Supports a forward current of 35 A and peak surge current of 400 A.
- Compact design with dimensions 28.8 mm length, 28.8 mm width, and 7.62 mm height.
- Capable of operating within a temperature range of -55°C to 150°C.
- Constructed with GBPC package type facilitating low thermal resistance.
- Diode arrangement ensures full-wave rectification converting AC to DC efficiently.
- Designed for industrial, electronic, power, and semi-conductor applications.
- Operates with a peak forward voltage of 1.1 V and peak reverse current of 5 μA.
Product Description
Vishay VS-GBPC3508W Bridge Rectifier is a robust and reliable electronic component designed for converting alternating current (AC) into direct current (DC) through full-wave rectification. Featuring a 4-pin single configuration and GBPC package, it is ideal for printed circuit board (PCB) or chassis mounting in various industrial and electronic applications.
This device supports a peak reverse repetitive voltage of 800 volts and a forward current rating of 35 amperes, with the capability to handle peak non-repetitive forward surge currents up to 400 amperes. Its compact dimensions of 28.8 mm in length and width with a height of 7.62 mm allow space-efficient installation.
The VS-GBPC3508W is engineered to operate reliably across a wide temperature range from -55 degrees Celsius to 150 degrees Celsius, ensuring performance stability even in demanding environments. The device features low thermal resistance and a wire lead structure that facilitates efficient heat dissipation.
The diode arrangement within the Bridge Rectifier guarantees consistent DC output polarity regardless of AC input polarity, making it an essential component in power electronics, industrial machinery, HVAC systems, and manufacturing equipment.
Peak Reverse Repetitive Voltage: 800 V. Forward Current: 35 A. Peak Surge Current: 400 A. Operating Temperature Range: -55°C to 150°C. Package Type: GBPC with 4 pins. Low Thermal Resistance and Compact Construction. Suitable for PCB or Chassis Mounting.
Forward Voltage Drop: 1.1 V. Peak Reverse Current: 5 μA.
This component is widely used in electronic circuits requiring efficient AC to DC conversion, including power supplies, battery chargers, DC motor drives, and rectification systems in industrial and laboratory settings.
Choose Vishay VS-GBPC3508W for dependable, high-current bridge rectification needs in your electronic and industrial projects. Explore additional semiconductor components and electronic parts in the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the Vishay VS-GBPC3508W is 800 V.
This model supports a maximum forward current of 35 A.
The peak surge current rating for this bridge rectifier is 400 A.
It can operate within a temperature range of -55°C to 150°C.
The dimensions of the VS-GBPC3508W are 28.8 mm in length, 28.8 mm in width, and 7.62 mm in height.
The package type of the VS-GBPC3508W is GBPC, featuring a 4-pin configuration.
The diode arrangement ensures full-wave rectification, converting AC to DC efficiently and maintaining consistent DC output polarity regardless of AC input polarity.
The peak forward voltage drop for the VS-GBPC3508W is 1.1 V.
The peak reverse current rating is 5 μA.
This model is designed for through hole mounting, suitable for PCB or chassis installation.
It is commonly used in power supplies, battery chargers, DC motor drives, and rectification systems in industrial and laboratory settings.
The country of origin for this bridge rectifier is India.
