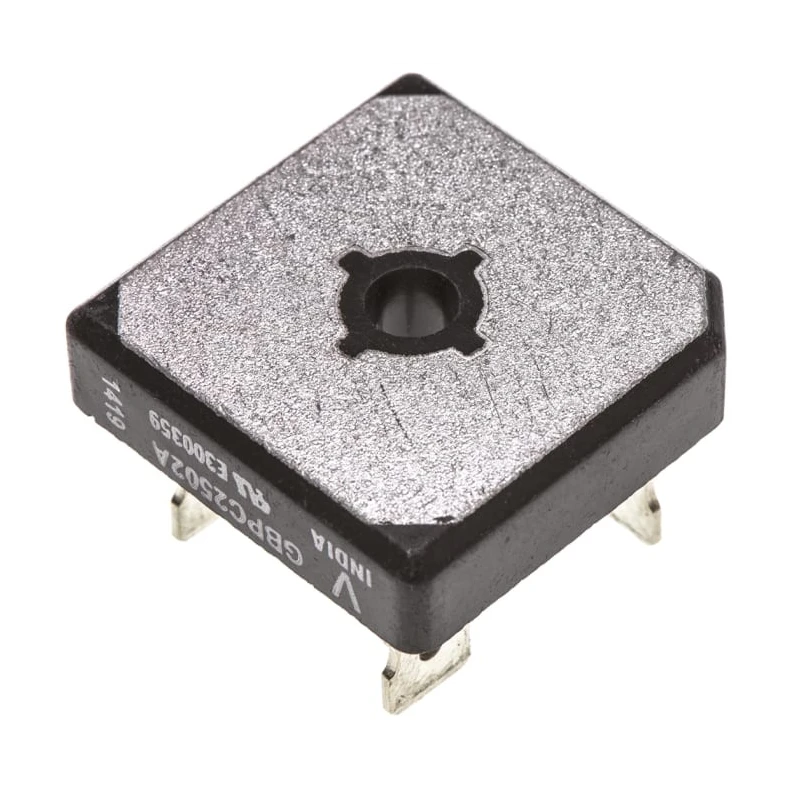

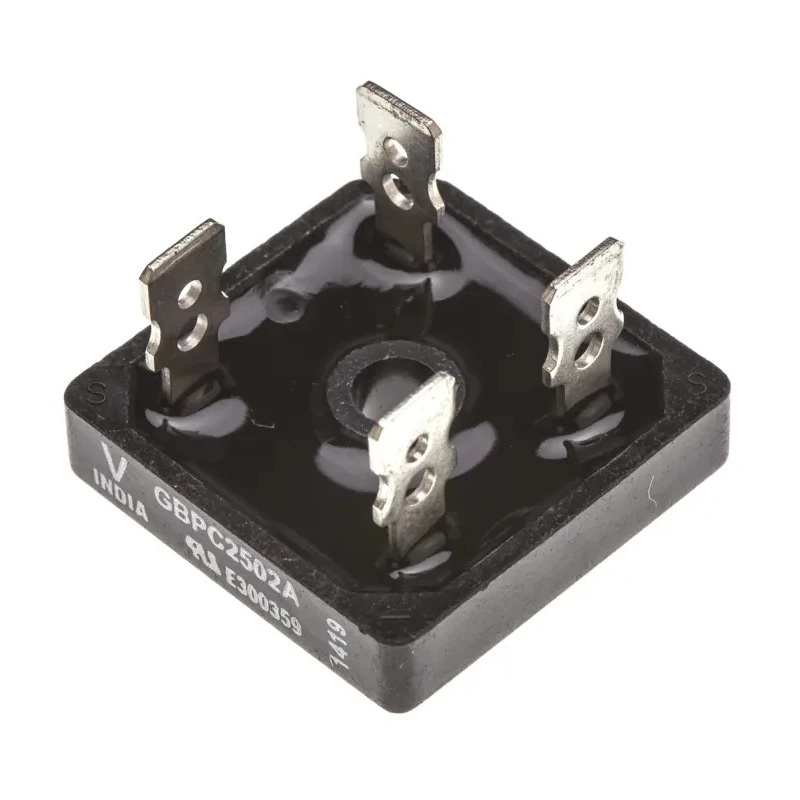

Vishay Bridge Rectifier, 200 V 420 A, 4-Pin Single, Screw Mount, GBPC Package VS-GBPC2502A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 7.7mm |
| Length | 28.6mm |
| Model | VS-GBPC2502A |
| Width | 28.6mm |
| Mount Type | Screw |
| Series | VS-GBPC |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 420A |
| Forward Current If | 25A |
| Peak Forward Voltage Vf | 1.1V |
| Vishay Bridge Rectifier, 200 V 420 A, 4-Pin SingleBrand | Vishay |
| Universal, 3-way terminals | Push-on, wrap around or solder |
Key Features
- Operates with a peak reverse repetitive voltage of 200 volts.
- Supports forward current up to 25 amperes with a surge capacity of 420 amperes.
- Compact GBPC package with screw mount type for secure installation.
- Wide operating temperature range from -55°C to 150°C.
- Features push-on, wrap around, or solder universal 3-way terminals.
- Electrically insulated case with high thermal conductivity ensures efficient heat dissipation.
- Diode configuration allows conversion from AC to DC with full-wave rectification.
- Precise peak forward voltage at 1.1 volts reducing energy loss.
Product Description
Vishay VS-GBPC2502A Bridge Rectifier is a high-performance 4-pin single-phase semiconductor device tailored for full-wave rectification applications, converting alternating current (AC) input to direct current (DC) output efficiently in industrial, electronic, and power management systems.
This unit features a peak reverse repetitive voltage rating of 200 V and a robust forward current rating of 25 A, with a peak surge capability of 420 A, making it suitable for demanding surge conditions. Encased in a compact GBPC package with screw mounting, it facilitates secure installation and excellent power-to-volume ratio, enhancing system reliability.
The rectifier operates reliably within a temperature span ranging from -55°C to 150°C, aided by a high thermal conductivity case which is electrically insulated for safety. The innovative terminal design allows versatile connectivity through push-on, wrap-around, or solder methods, increasing installation flexibility.
With a low peak forward voltage of 1.1 V and minimal peak reverse current of 5 μA, the device ensures energy-efficient operation and reduced losses. The compact dimensions (28.6 mm length, 28.6 mm width, 7.7 mm height) contribute to space-saving integration in various electronics and power conversion circuits.
Ideal for use in industrial machinery, power supplies, HVAC control units, manufacturing equipment, and electronic device assemblies, this bridge rectifier meets stringent demands for performance and reliability.
Operates with a peak reverse repetitive voltage of 200 volts. Handles forward current and surge conditions efficiently. Screw mount type GBPC package with universal 3-way terminals. Wide operating temperature range from -55°C to 150°C.
Compact size with high thermal conductivity case. Low energy loss and minimal leakage current. Certified for industrial and electronic component use. Manufactured in India ensuring quality standards. Explore our Electronics & Electricals category for more semiconductors and Bridge Rectifiers with guaranteed quality and performance at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is 200 volts.
It can handle a maximum forward current of 25 amperes.
The surge current capacity is rated at 420 amperes.
This bridge rectifier operates within a temperature range of -55°C to 150°C.
It features a screw mount type for secure installation.
The dimensions are 28.6 mm in length, 28.6 mm in width, and 7.7 mm in height.
It has universal 3-way terminals that support push-on, wrap-around, or solder connections.
The peak forward voltage is 1.1 volts, which helps reduce energy loss.
The peak reverse current is rated at 5 microamperes (5 μA).
It is suitable for use in industrial machinery, power supplies, HVAC control units, and electronic device assemblies.
This model is manufactured in India, ensuring adherence to quality standards.
It has a total of 4 pins in its configuration.
