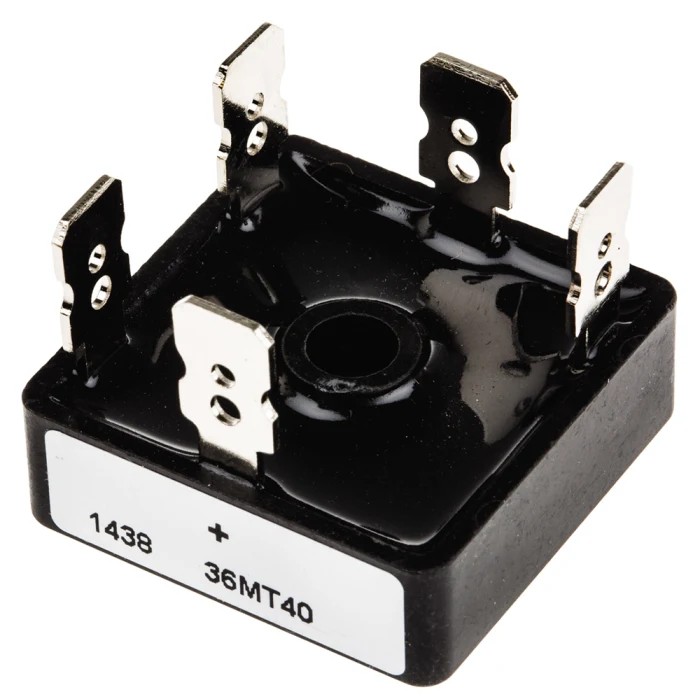

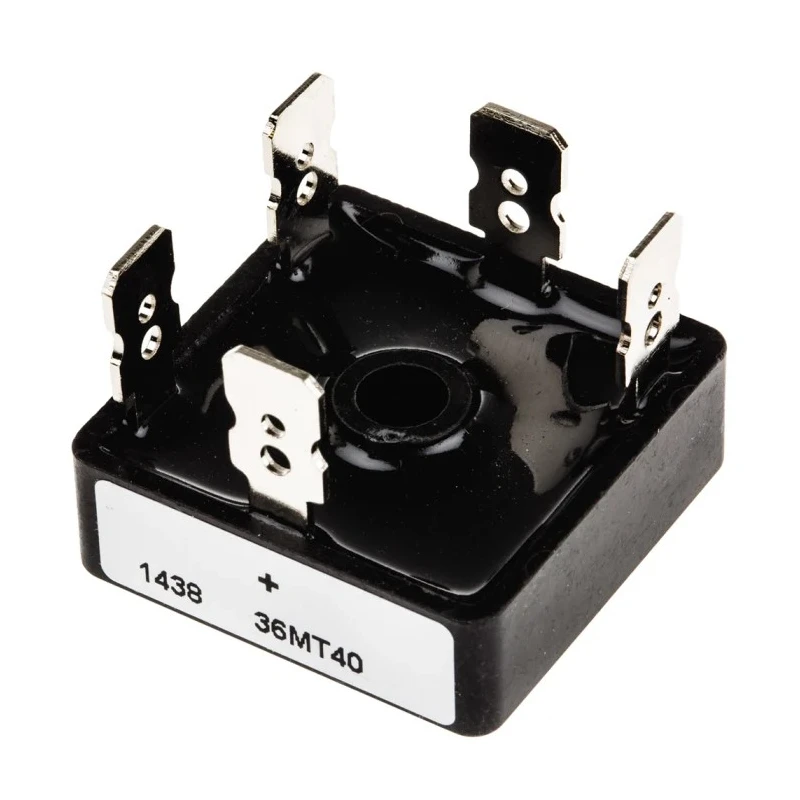

Vishay Three Phase Bridge Rectifier 400 V 500 A 5-Pin Single VS-36MT40
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 10mm |
| Length | 28.5mm |
| Model | VS-36MT40 |
| Width | 28.5mm |
| Mount Type | Through Hole |
| Series | VS-36MT |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-63 |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 3 |
| Pin Count | 5 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.19V |
| Universal, 3 way terminals | push-on, wrap around or solder |
| Vishay Bridge Rectifier, 600 V 500 A, 5-Pin SingleBrand | Vishay |
Key Features
- Designed for through hole mounting with a compact D-63 package.
- Operates reliably from -55°C to 150°C for industrial and consumer applications.
- Offers 35 A continuous forward current with peak forward voltage of 1.19 V.
- High thermal conductivity package with electrically insulated case and nickel plated terminals.
- Suitable for full-wave rectification in three-phase AC to DC conversion.
- Features universal 3 way terminals enabling push-on, wrap around or solder connections.
- Approved under UL E300359 for safety and performance assurance.
- Ideal for electronic power and connector semiconductor discrete component applications.
Product Description
Vishay VS-36MT40 is a three phase bridge rectifier designed for robust power conversion, capable of handling 400 volts peak reverse repetitive voltage and a surge current up to 500 amperes. The device is housed in a D-63 type compact package with a 5-pin single configuration, ideal for through hole mounting applications.
This rectifier supports a continuous forward current of 35 amperes and operates effectively under a temperature range of -55°C to 150°C, making it suitable for both industrial instrumentation and consumer electronic uses. Its nickel plated terminals ensure reliable solderability using lead-free solder alloys, while the electrically insulated case maintains safety standards.
The VS-36MT40 offers excellent power to volume ratio with a small footprint of 28.5 mm by 28.5 mm by 10 mm, making it practical for space-constrained PCB layouts. Its universal three-way terminals provide flexibility in connection methods including push-on, wrap around, or solder, enhancing its ease of integration.
This product is UL E300359 approved, ensuring it meets stringent quality and safety requirements. It is primarily used for full wave rectification of AC into DC output in electronic circuits requiring a reliable and efficient bridge rectifier solution.
Designed for through hole mounting with a compact D-63 package. Operates reliably from -55°C to 150°C for industrial and consumer applications. Offers 35 A continuous forward current with peak forward voltage of 1.19 V. High thermal conductivity package with electrically insulated case and nickel plated terminals.
Suitable for full-wave rectification in three-phase AC to DC conversion. Features universal 3 way terminals enabling push-on, wrap around or solder connections. Dimensions: 28.5 mm length x 28.5 mm width x 10 mm height. Approved under UL E300359 for safety and performance assurance.
Ideal for electronic power and connector semiconductor discrete component applications. Explore the Semiconductor and Bridge Rectifier categories at EnvMart for similar high-performance electronic components and reliable power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the Vishay VS-36MT40 bridge rectifier is 150°C.
This model has a peak reverse repetitive voltage rating of 400 volts.
The continuous forward current capacity of this rectifier is 35 amperes.
The dimensions of the Vishay VS-36MT40 are 28.5 mm in length, 28.5 mm in width, and 10 mm in height.
It is designed for through hole mounting with a compact D-63 package.
The peak forward voltage of the VS-36MT40 is 1.19 volts.
The peak non-repetitive forward surge current rating is up to 500 amperes.
The universal three-way terminals support push-on, wrap around, or solder connections.
The minimum operating temperature is -55°C.
This model has a single configuration with a 5-pin design.
Yes, it is approved under UL E300359 for safety and performance assurance.
It is suitable for full-wave rectification in three-phase AC to DC conversion, making it ideal for electronic power and connector semiconductor applications.
