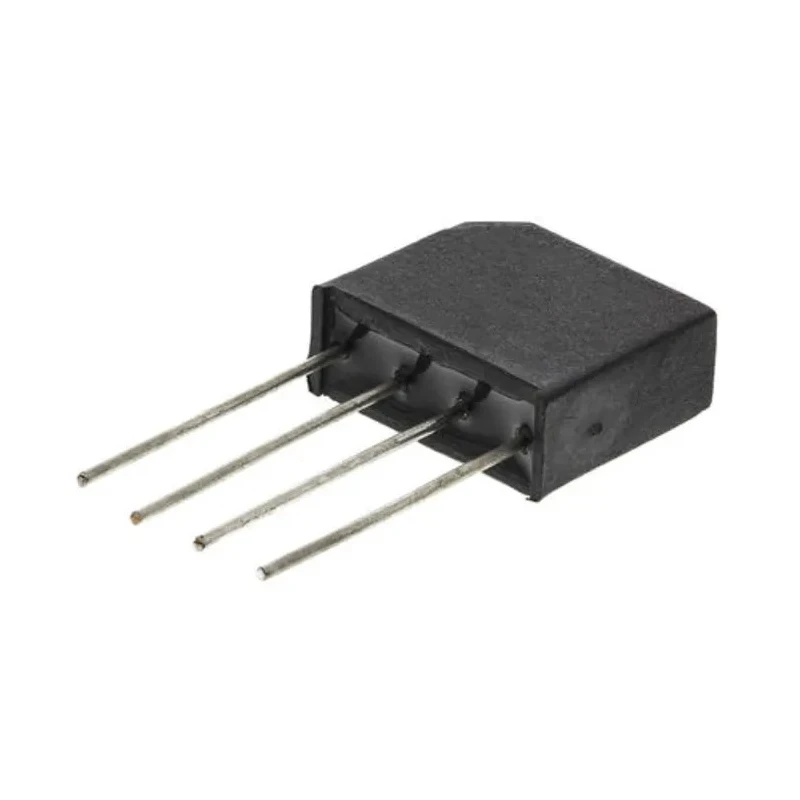

Vishay Bridge Rectifier 600 V 52 A Through Hole D-37 Package 4-Pin Single VS-2KBB60R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 15mm |
| Length | 17.5mm |
| Model | VS-2KBB60R |
| Width | 6.5mm |
| Mount Type | Through Hole |
| Series | VS-2KBB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-37 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 52A |
| Forward Current If | 1.9A |
| Peak Forward Voltage Vf | 1.1V |
| Standard pin configuration is | - ∼ + ∼ |
| Alternative pin configuration (part no. suffix R) is | - ∼ ∼ + |
| Vishay Bridge Rectifier, 600 V 52 A, 4-Pin SingleBrand | Vishay |
Key Features
- Designed for PCB through hole mounting with SIL package.
- High surge current capability supports demanding applications.
- Fits standard 2.54 mm pin spacing for easy installation.
- Operating temperature range from -40°C to 150°C for robust thermal performance.
- Forward current of 1.9 A with low forward voltage of 1.1 V.
- Peak reverse current is kept low at 10 μA to minimize leakage.
- Reliable rectification for converting AC to DC in industrial and electronic circuits.
- Made in India, ensuring quality manufacturing standards.
Product Description
Vishay VS-2KBB60R Bridge Rectifier is a high-performance power semiconductor device designed for efficient full-wave rectification of AC signals into DC output. With a peak reverse repetitive voltage of 600 V and a peak surge current rating of 52 A, this 4-pin single configuration rectifier is ideal for use in electronic power supplies, industrial equipment, and control circuits.
Its SIL PCB mounting package (D-37) supports through-hole installation, featuring standard 2.54 mm lead spacing for compatibility with a wide range of circuit boards.
The rectifier exhibits a forward current rating of 1.9 A and a forward voltage drop of 1.1 V, ensuring minimal power loss during operation. It operates reliably within a broad temperature range of -40°C to 150°C, providing durability in harsh industrial environments.
Designed with compact dimensions of 17.5 mm length, 15 mm height, and 6.5 mm width, the device converts alternating current inputs into consistent DC outputs using a four-diode bridge configuration. The pin arrangement follows the standard notation ( - ∼ + ∼), and an alternative pin configuration version is available for specific applications.
This Bridge Rectifier is suited for use across a variety of sectors including industrial automation, power supplies, renewable energy systems, and general electronic circuitry that requires reliable AC to DC conversion.
Designed for PCB through hole mounting with SIL package. High surge current capability supports demanding applications. Fits standard 2.54 mm pin spacing for easy installation. Compact dimensions: 17.5 mm length, 15 mm height, and 6.5 mm width.
Operating temperature range from -40°C to 150°C for robust thermal performance. Forward current of 1.9 A with low forward voltage of 1.1 V. Peak reverse current is kept low at 10 μA to minimize leakage. Standard pin configuration: - ∼ + ∼; alternative configuration suffix 'R' available.
Reliable rectification converting AC to DC in power electronic circuits. Manufactured in India, assuring quality standards. Explore the extensive range of semiconductor and electronic components at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of this model is 600 V.
This bridge rectifier has a peak non-repetitive forward surge current rating of 52 A.
The forward current rating for this unit is 1.9 A.
It operates reliably within a temperature range of -40°C to 150°C.
The dimensions of this bridge rectifier are 17.5 mm in length, 15 mm in height, and 6.5 mm in width.
This model is designed for PCB through hole mounting with a SIL package.
The standard pin configuration is - ∼ + ∼.
Yes, an alternative pin configuration is available with the suffix 'R', which is - ∼ ∼ +.
The peak reverse current is kept low at 10 μA to minimize leakage.
It is suitable for use in electronic power supplies, industrial equipment, and control circuits requiring reliable AC to DC conversion.
This bridge rectifier is manufactured in India, ensuring quality standards.
The package type for this model is D-37.
