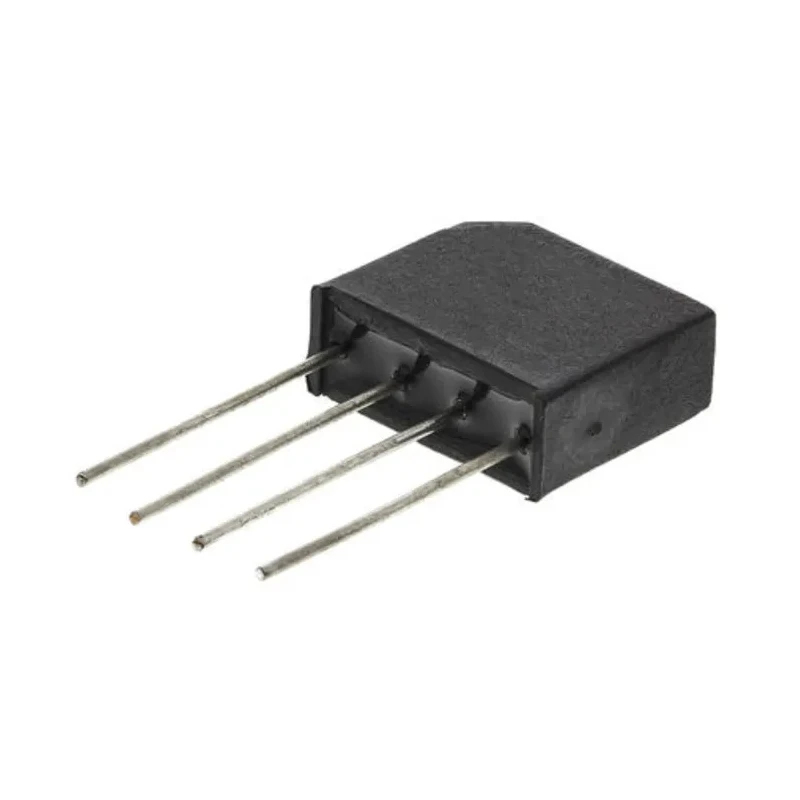

Vishay Bridge Rectifier, 400 V Peak Reverse Voltage, 52 A Peak Surge Current, 4-Pin Single D-37 Through Hole VS-2KBB40R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 15mm |
| Length | 17.5mm |
| Model | VS-2KBB40R |
| Width | 6.5mm |
| Mount Type | Through Hole |
| Series | VS-2KBB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-37 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 52A |
| Forward Current If | 1.9A |
| Peak Forward Voltage Vf | 1.1V |
| Standard pin configuration is | - ∼ + ∼ |
| Alternative pin configuration (part no. suffix R) is | - ∼ ∼ + |
| Vishay Bridge Rectifier, 200 V 52 A, 4-Pin SingleBrand | Vishay |
Key Features
- Supports maximum forward current of 1.9 A for reliable operation.
- Operates safely between -40°C minimum and 150°C maximum temperatures.
- Standard pin configuration provides polarity of - ∼ + ∼ for ease of circuit integration.
- Suitable for full wave rectification applications in power electronics.
- Manufactured in India ensuring reliable quality and performance.
Product Description
Vishay VS-2KBB40R Bridge Rectifier is a discrete semiconductor designed for converting alternating current (AC) input into direct current (DC) output with full wave rectification, ideal for various industrial and electronic applications.
This 4-pin single-phase bridge rectifier is housed in a compact D-37 through-hole package suitable for PCB mounting on a standard 2.54 mm grid, ensuring ease of assembly and integration in printed circuit board designs.
The device supports a peak reverse repetitive voltage (VRRM) of 400 V and a high peak non-repetitive forward surge current (IFSM) of 52 A. It can handle continuous forward currents (IF) up to 1.9 A, making it capable of managing significant power loads in electronic circuits.
Operational temperature ranges from -40°C minimum to a maximum of 150°C, providing robust performance in harsh environments. Its peak forward voltage drop (Vf) is 1.1 V, contributing to improved efficiency in power conversion.
Maximum forward current rated at 1.9 A for reliable circuit operation. High surge current capability with 52 A peak non-repetitive forward surge. Compact D-37 package with dimensions 17.5 mm (L) x 15 mm (H) x 6.5 mm (W).
Standard and alternative pin configurations for flexible circuit design. Manufactured in India ensuring quality standards.
This bridge rectifier is ideal for use in industrial power supplies, measurement and control instruments, HVAC equipment, and other electronic devices requiring efficient AC to DC conversion.
Choose from Vishay's VS-2KBB series for reliable and compact full wave rectification solutions designed for through-hole PCB mounting arrangements. Explore more about Vishay electronic components and Bridge Rectifiers at EnvMart, your trusted partner for premium semiconductor devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VS-2KBB40R has a peak reverse repetitive voltage (VRRM) rating of 400 V.
This bridge rectifier supports a maximum forward current of 1.9 A for reliable operation.
It has a peak non-repetitive forward surge current (IFSM) rating of 52 A.
The dimensions of the D-37 package are 17.5 mm in length, 15 mm in height, and 6.5 mm in width.
It operates safely between -40°C minimum and 150°C maximum temperatures.
The standard pin configuration is - ∼ + ∼, which facilitates ease of circuit integration.
This model utilizes a through-hole mounting type, suitable for PCB integration.
It is suitable for full wave rectification applications in power electronics, including industrial power supplies and HVAC equipment.
The peak forward voltage drop (Vf) is 1.1 V, contributing to improved efficiency in power conversion.
Yes, an alternative pin configuration is available with the part number suffix R, which is - ∼ ∼ +.
The Vishay VS-2KBB40R is manufactured in India, ensuring quality standards.
This bridge rectifier features a total of 4 pins.
