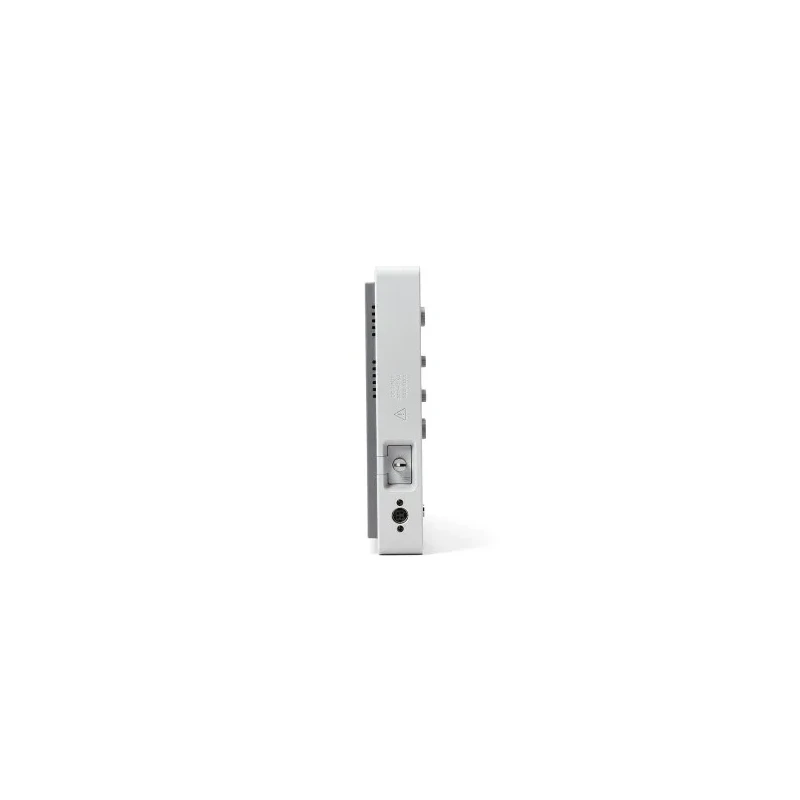

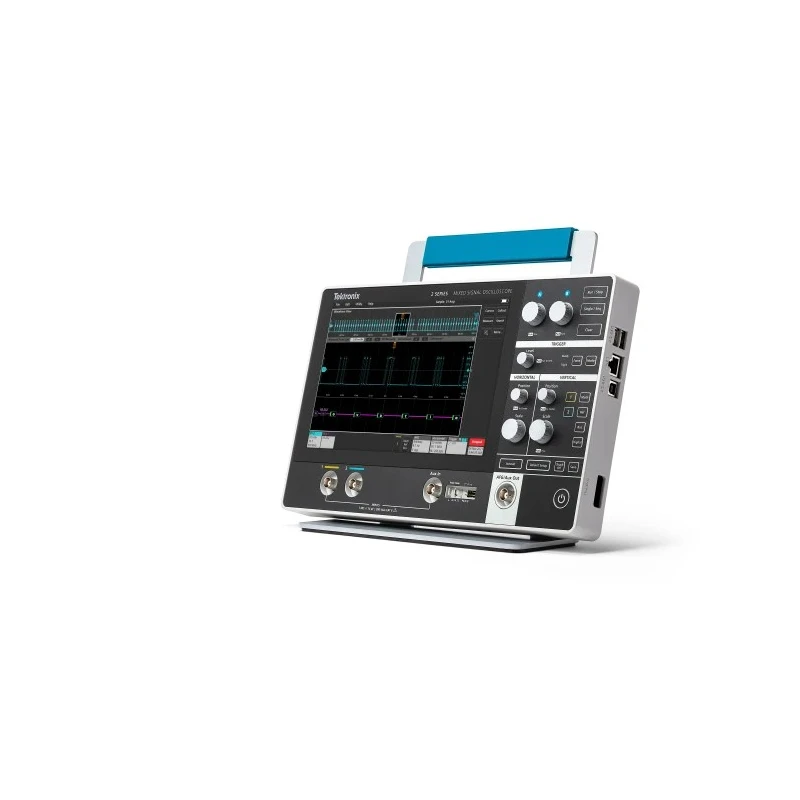

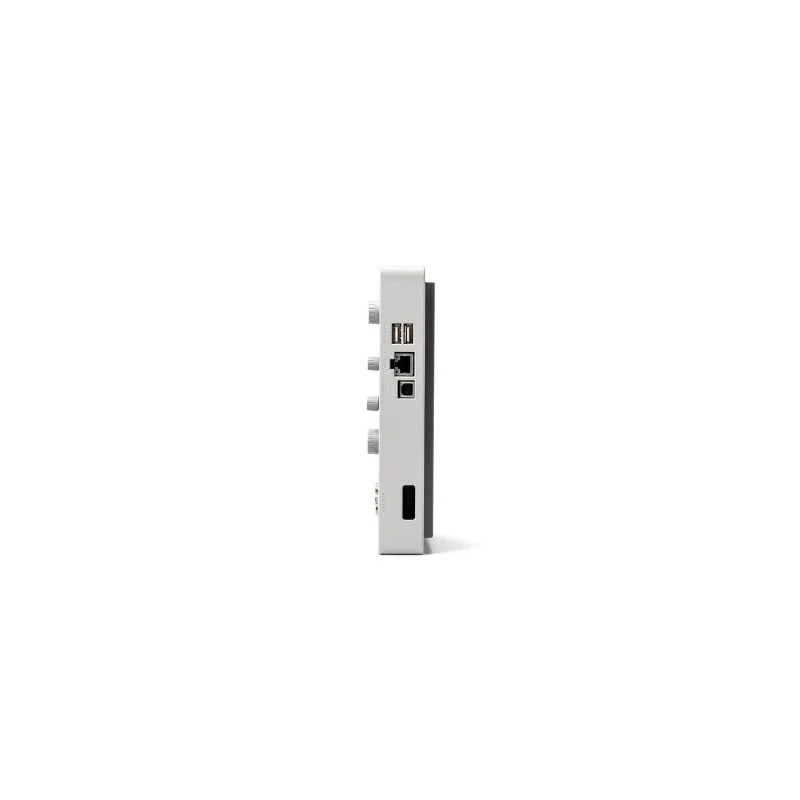

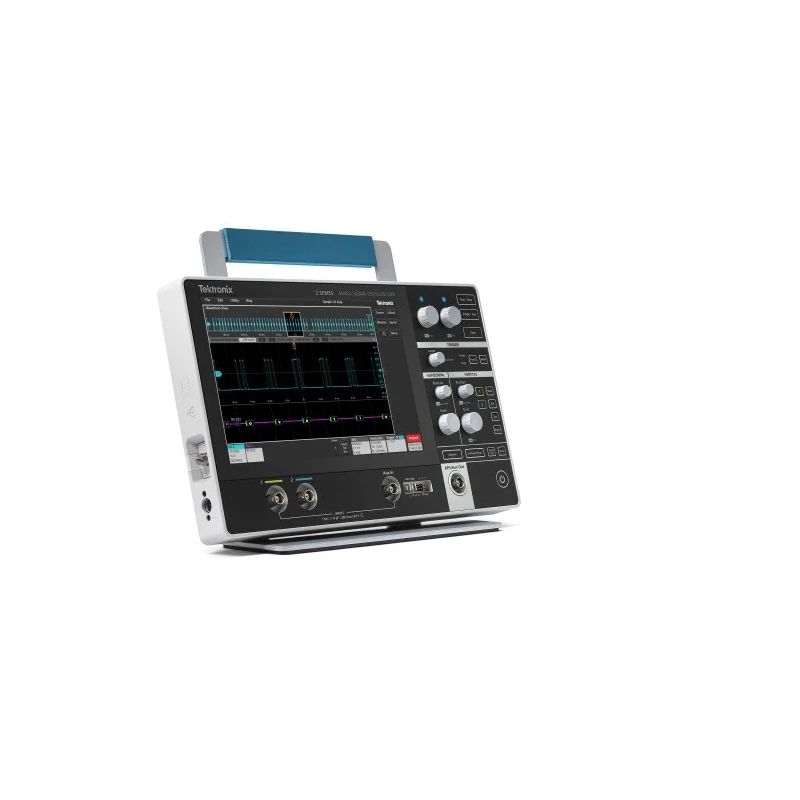

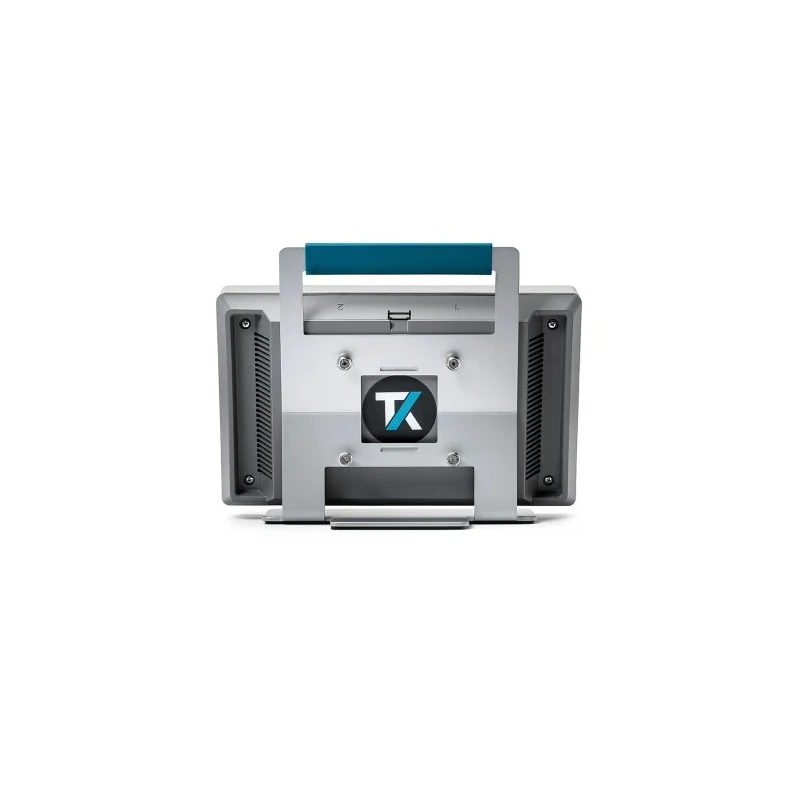

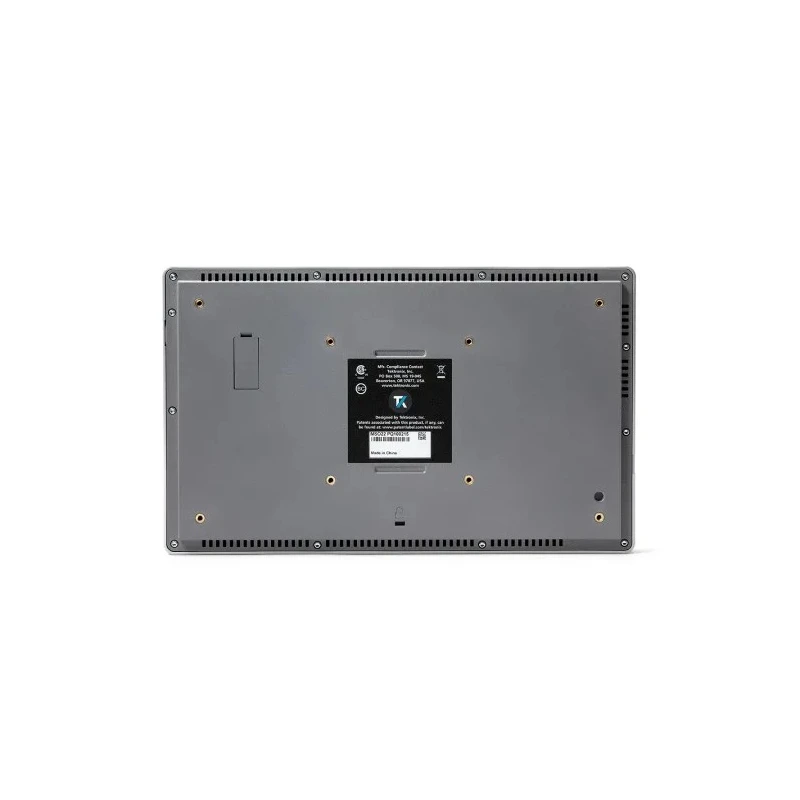

Tektronix 2 Series MSO Mixed Signal Oscilloscope 2 Channel 500 MHz Bandwidth 10.1-Inch Capacitive Touchscreen MSO22 2-BW-500

Tektronix MSO22 2-BW-500, part of the 2 Series MSO Mixed Signal Oscilloscope family, brings high-performance testing with 500 MHz bandwidth and 2 channels in an ultra-compact form factor. Equipped with a vivid 10.1-inch capacitive touchscreen, the unit offers a user-friendly interface designed for effective and streamlined electronic debugging and testing.

This mixed signal oscilloscope supports a 2.5 GS/s sample rate and interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB, making it versatile for numerous industrial, laboratory, and field testing applications. Its compact size (210mm height, 344mm width, and 40.4mm depth) and lightweight design (1.8 kg instrument only) allow for easy portability and bench space saving, further enhanced by VESA mount compatibility.

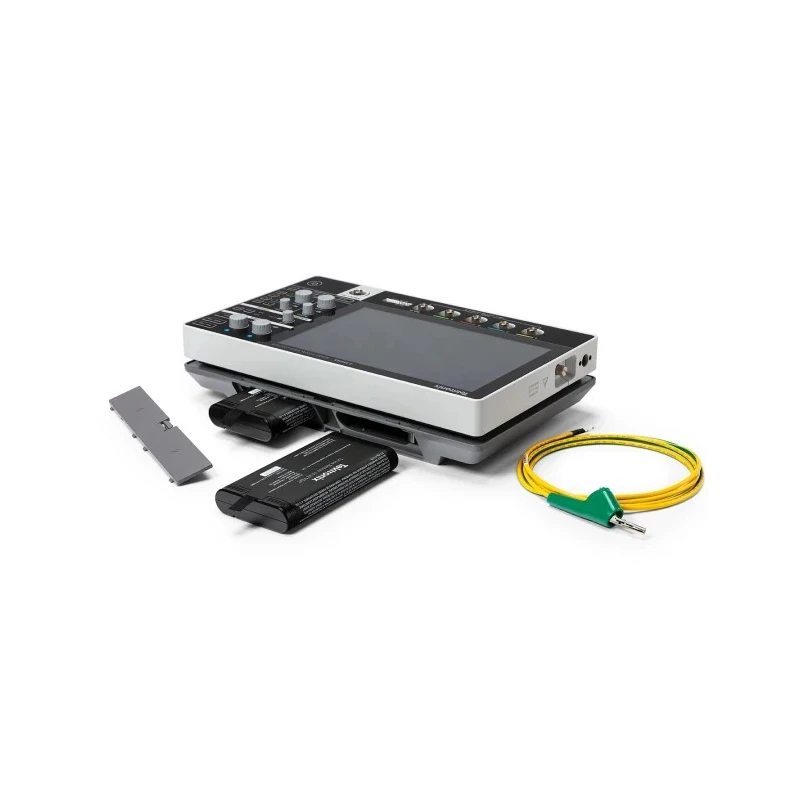

The Tektronix MSO22 is battery powered with an optional lithium-ion battery pack that supports up to 8 hours of operation and hot-swappable batteries for uninterrupted testing. The device is UKAS calibrated, providing traceability to national metrology standards, ensuring accuracy and confidence in measurements.

Built-in features include an award-winning touchscreen UI, a built-in VNC server to remotely control the oscilloscope, and compatibility with a large catalog of probes and accessories for extended functionality. It is CE, RoHS, and UL approved, meeting industry safety and quality standards.

Package contents include TPP0200 200 MHz 10x probes (one per channel), instrument stand, external power supply, embedded help, installation and safety manual in multiple languages, calibration certificate, and a one-year warranty covering parts and labor on the instrument and probes.

Features a 10.1-inch capacitive touchscreen with intuitive user interface. Offers 2 analog channels with 500 MHz bandwidth and mixed signal capability. Compact size with dimensions 210mm height, 344mm width, and 40.4mm depth.

Operates with optional lithium-ion battery for up to 8 hours of use. Supports multiple interface types including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB. Lightweight design at 1.8 kg without battery and up to 3.6 kg with dual batteries.

Calibrated with UKAS traceability ensuring precision and reliability. Includes versatile features like VESA mount compatibility and built-in VNC server.

This Oscilloscope is ideal for industrial, laboratory, HVAC, and manufacturing environments requiring precise mixed signal measurements, compact portability, and extensive protocol support. Explore the 2 Series MSO collection for innovative oscilloscopic solutions on EnvMart.
