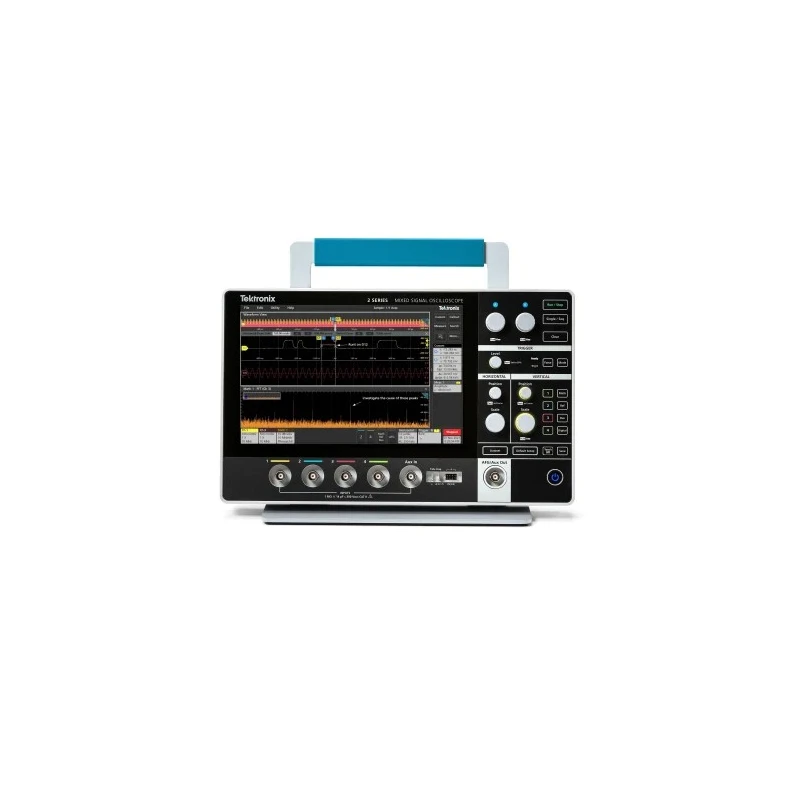

Tektronix 2 Series MSO Mixed Signal Oscilloscope, 500 MHz Bandwidth, 4 Channels, 10.1-Inch Capacitive Touch MSO24 2-BW-500

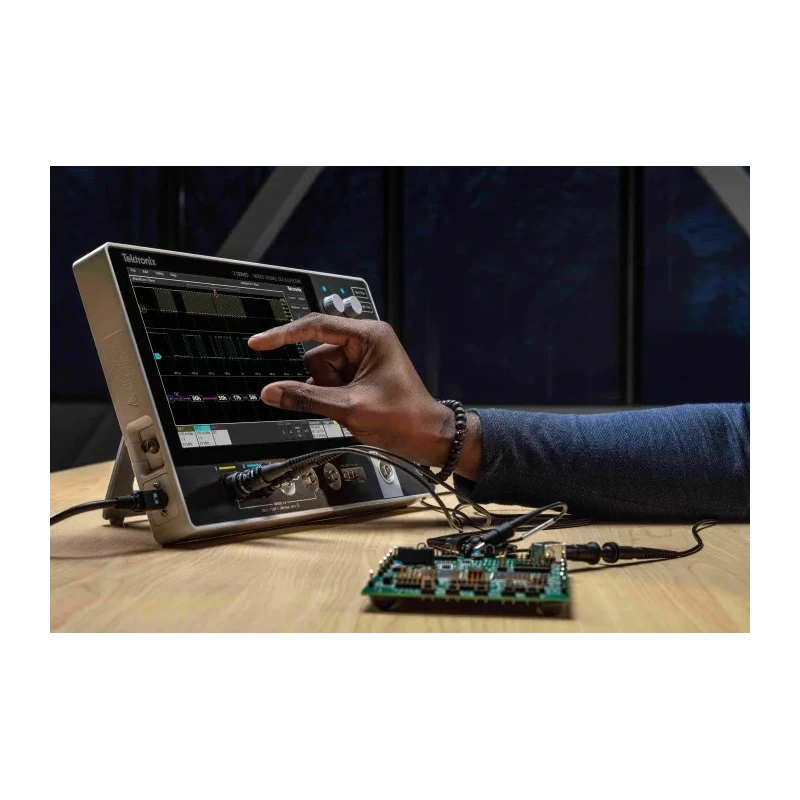

Tektronix MSO24 2-BW-500 is a 2 Series MSO mixed signal oscilloscope designed for high-performance electronic debug and test applications with 500 MHz bandwidth and 4 analog channels. It features a compact and ultra-portable design with dimensions of 210mm height, 344mm width, and 40.4mm depth, making it ideal for bench or field use. The instrument incorporates a large 10.1-inch capacitive touchscreen that provides an intuitive and simplified user interface tailored for efficient operation and swift access to functions.

Equipped with a sample rate of 2.5 GS/s and vertical resolutions of 1 digital bit and 8 analogue bits, this oscilloscope delivers precise signal capture and analysis. Various interface types including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB enable versatility across multiple communication protocols.

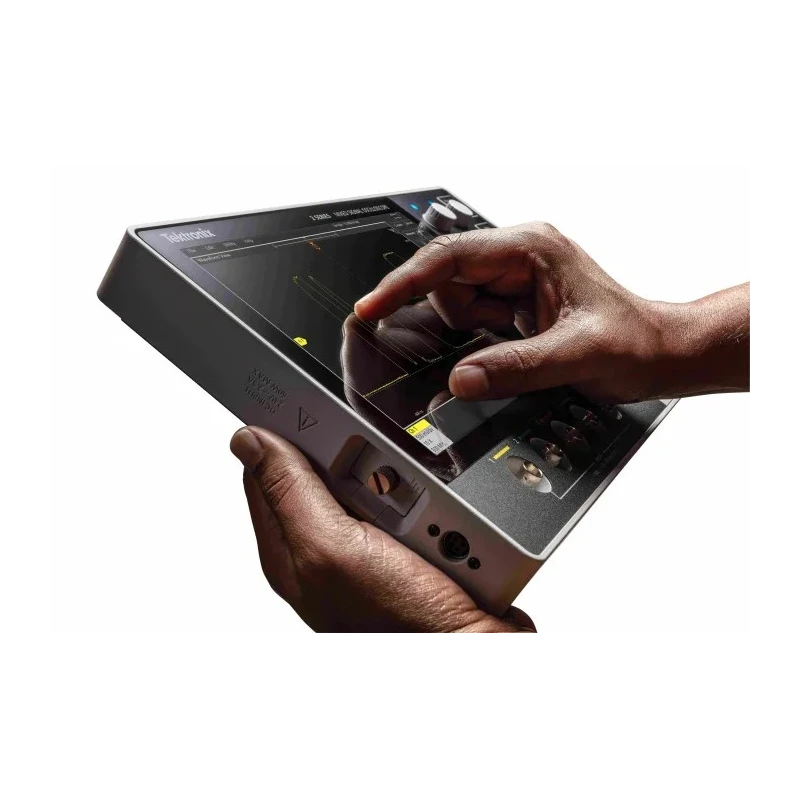

Battery powered capabilities include optional battery packs with hot-swappable lithium-ion batteries providing up to 8 hours of continuous operation, facilitating work in environments without stable power sources. Lightweight at 1.8 kg, it offers ease of transport and portability. The unit supports VESA mounting for optimized lab space management.

The device supports a large catalog of compatible probes and accessories, including optional 16 digital channel MSO, 50 MHz Arbitrary Function Generator (AFG), 4-bit digital pattern generator, advanced triggers, protocol decode options, digital voltmeter (DVM), and frequency counter. Ships with TPP0200 200 MHz, 10x probe for each channel, instrument stand, external power supply, embedded help, installation and safety manuals in multiple languages, and calibration certificates adhering to ISO9001/ISO17025 standards.

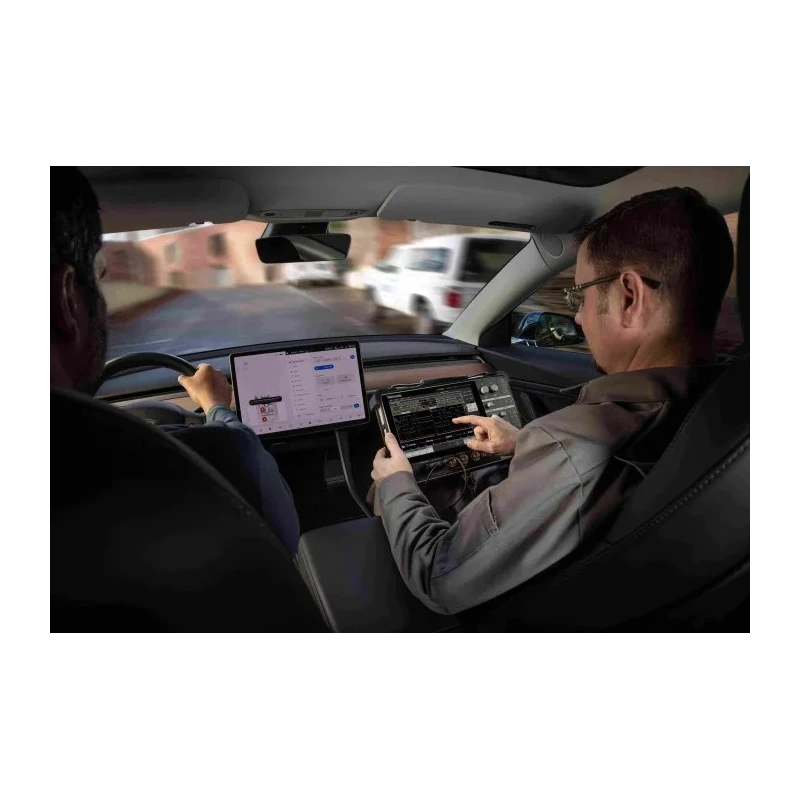

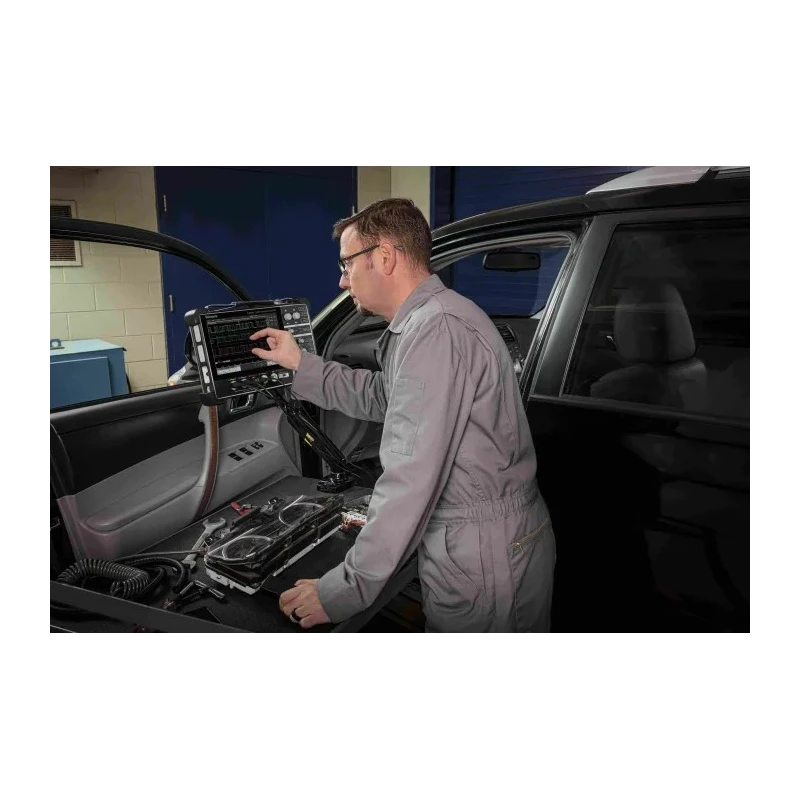

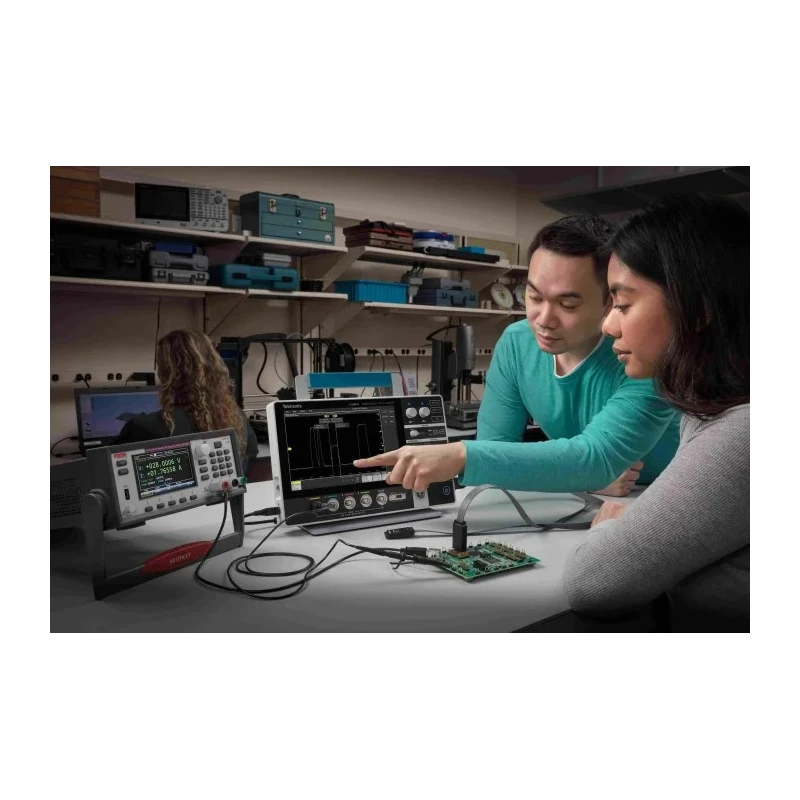

Applications span industrial, laboratory, construction, manufacturing, and HVAC sectors, making it a versatile instrument for rigorous test and measurement tasks in both commercial and field environments. Tektronix 2 Series MSO integrates a built-in VNC server enabling remote operation and monitoring from various devices such as PC, tablet, or phone.

Its premium performance combined with compact design and advanced connectivity places the MSO24 2-BW-500 among the most capable oscilloscopes in its class with flexibility for users demanding mobility without sacrificing analytical power.

Explore Tektronix products and the Oscilloscopes category at EnvMart for additional compatible instruments and accessories tailored to your test and measurement needs. Features mixed signal oscilloscope functionality with ultra-compact form factor.

Supports up to 4 analog channels for versatile signal analysis. Equipped with a 10.1-inch capacitive touchscreen offering intuitive user interface. Battery powered with optional hot-swappable batteries allowing up to 8 hours usage.

Offers 2.5 GS/s sample rate and 1 (digital) bit and 8 (analog) bit vertical resolution. Includes multiple interface types: CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB. Lightweight design at 1.8 kg with compact dimensions (H 210mm, W 344mm, D 40.4mm).

VESA mount compatible to save bench space and improve ergonomic setup. Discover top-quality Oscilloscopes from Tektronix and complementary test and measurement instruments on EnvMart.
