Tektronix 2 Series MSO Mixed Signal Ultra Compact Oscilloscope, 2 Channel, 500 MHz Bandwidth MSO22 2-BW-500

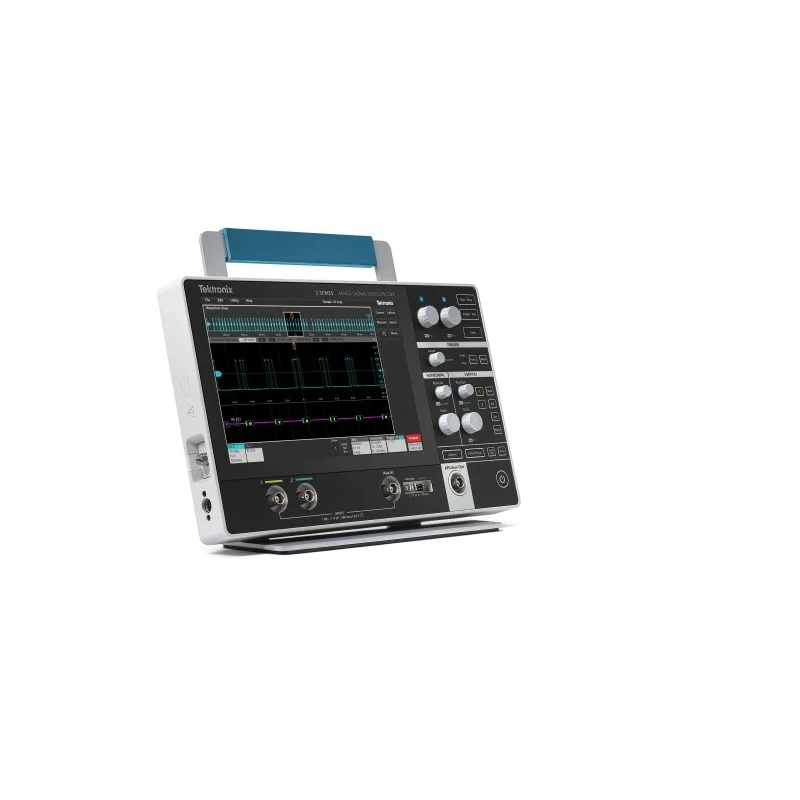

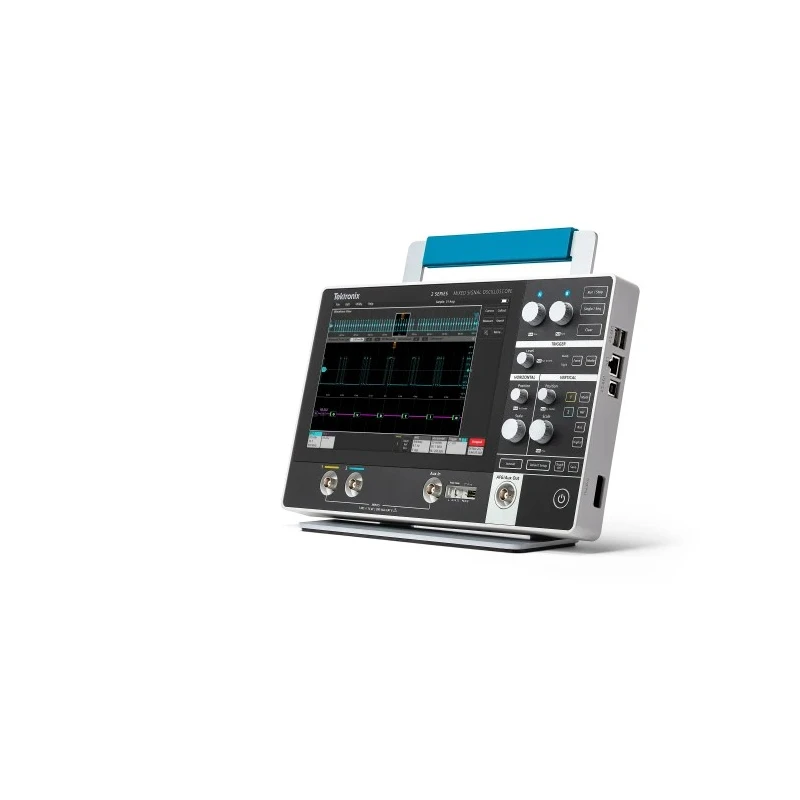

Tektronix MSO22 2-BW-500 2 Series MSO Mixed Signal Oscilloscope delivers high-performance testing capabilities with a bandwidth of 500 MHz across 2 analog channels. The ultra-compact, mixed signal form factor with a slim 40.4 mm depth and 344 mm width suits modern bench space constraints and offers portability with optional battery packs. Featuring a 10.1-inch capacitive touchscreen, the instrument provides an intuitive user interface simplifying access to advanced functions.

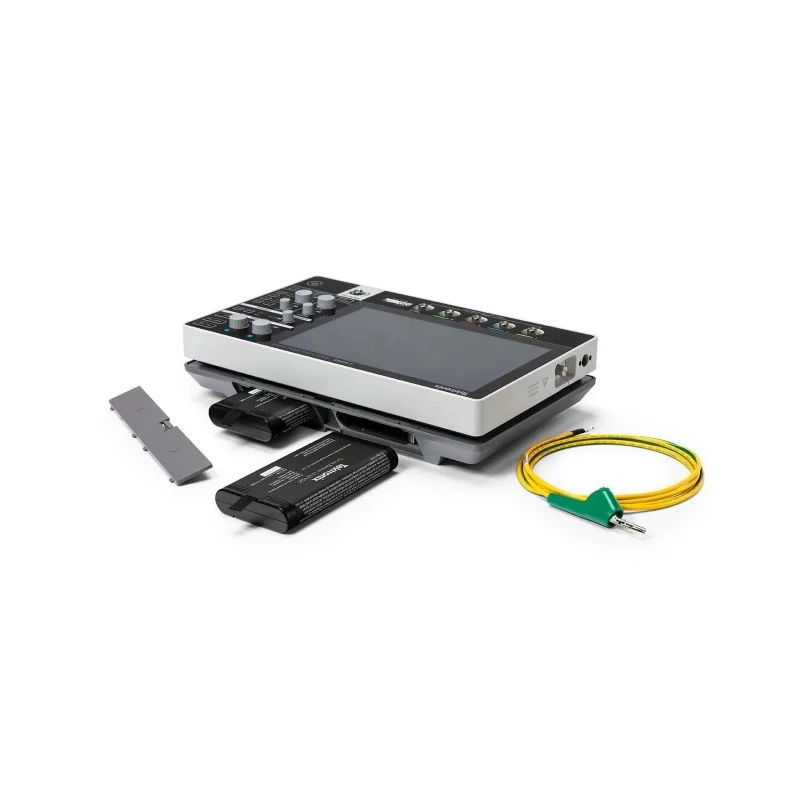

This oscilloscope supports multiple widely-used interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB protocols enabling comprehensive electronic system debugging. Its lithium-ion battery option offers up to 8 hours of operation with hot-swappable battery packs, making it versatile for both lab and field testing.

Compliance with CE, RoHS, and UL standards assures device safety and quality. The vertical resolution of 1 bit digital and 8 bit analogue signals guarantees precise waveform interpretation. Tektronix provides an extensive suite of compatible probes and optional accessories such as 16 digital channels, 50 MHz arbitrary function generator, digital pattern generators, and advanced triggering capabilities.

Additional features include a built-in VNC server allowing remote oscilloscope control from PCs, tablets, or phones, enhancing flexibility in monitoring and data capture. Its lightweight design, weighing 1.8 kg without batteries and up to 3.6 kg with batteries, ensures easy transport.

This oscilloscope is ideal for use in industrial manufacturing, electronics development labs, HVAC system diagnostics, and maintenance, as well as field service applications. The package includes TPP0200 200 MHz, 10x probes (one per channel), instrument stand, external power supply, embedded help, installation and safety manuals, calibration certificate, and a one-year warranty covering all parts and labor.

Offers ultra compact form factor with instrument dimensions H 210mm, W 344mm, D 40.4mm. Includes a 10.1-inch capacitive touchscreen with intuitive user interface for ease of operation. Supports CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB interfaces for diverse protocol testing.

Battery powered optional pack with lithium-ion batteries providing up to 8 hours of use. Lightweight and portable design weighing 1.8 kg without battery and up to 3.6 kg with two batteries. Complies with CE, RoHS, and UL standards ensuring safety and regulatory adherence.

Equipped with 1 digital bit and 8 analogue bit vertical resolution for accurate signal analysis. Compatible with a wide range of Tektronix probes and accessories for extended functionality. Built-in VNC server enables remote control from PC, tablet, or phone devices.

Suitable for industrial, laboratory, HVAC, manufacturing, and field testing applications.
