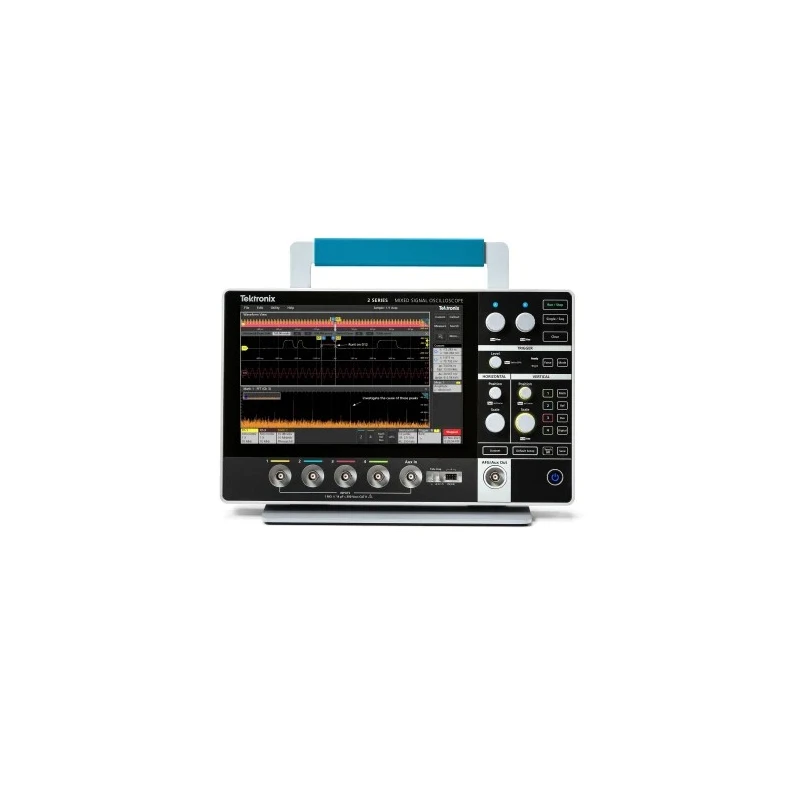

Tektronix 2 Series MSO Mixed Signal Oscilloscope 500 MHz Bandwidth 4 Channels Capacitive Touch Display MSO24 2-BW-500

Tektronix MSO24 2-BW-500 is a 2 Series MSO mixed signal oscilloscope designed for electronic debugging and testing with a 500 MHz bandwidth and 4 channels. Featuring a compact form factor measuring 210mm height, 344mm width, and 40.4mm depth, this instrument is ideal for both laboratory and field applications.

The oscilloscope includes a bright 10.1-inch capacitive touchscreen that provides an award-winning intuitive user interface, simplifying operation and improving efficiency in industrial, manufacturing, and R&D environments. Supporting various communication interfaces such as CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB, it offers versatile connectivity for comprehensive measurements.

Equipped with UKAS calibration, the instrument meets stringent accuracy and traceability standards. Its lithium-ion battery offers up to 8 hours of operation with optional dual hot-swappable batteries, ensuring extended use without interruption during field testing. The device's CAT II safety rating provides enhanced protection during measurements.

The 2 Series MSO’s compact and lightweight design (1.8 kg instrument weight alone) maximizes bench space and is compatible with standard VESA mounts, making it adaptable to various work environments. The package includes 200 MHz TPP0200 10x probes for each channel, an instrument stand, external power supply, and comprehensive documentation.

Additional functionality includes built-in VNC server for remote control via PC, tablet, or phone, and optional extras such as protective cases, battery chargers, and advanced measurement features like digital pattern generation and protocol decoding. This oscilloscope is suitable for electronics testing, industrial maintenance, educational laboratories, and field service tasks.

The oscilloscope features a 10.1-inch intuitive capacitive touchscreen for easy navigation. It supports multiple industrial interfaces including CAN, I2C, LAN, LIN, SPI, UART, and USB protocols. The device includes UKAS calibration ensuring high precision and traceability.

Battery life extends up to 8 hours with optional hot-swappable lithium-ion batteries for field use. Compact and lightweight form factor saves bench space and is compatible with VESA mounts. Advanced measurement capabilities include 1 bit digital and 8 bit analogue vertical resolution.

Includes standard accessories such as TPP0200 200 MHz 10x probes, instrument stand, power supply, and safety manual. Certified RoHS, CE, and UL compliant with safety category CAT II rating.

This Tektronix mixed signal Oscilloscope is a reliable instrument for rigorous testing requirements in industrial, laboratory, educational, and field environments. Explore the full range of Tektronix instruments and accessories on EnvMart for your test and measurement needs.
