Tektronix 2 Series MSO Mixed Signal Portable Oscilloscope 500 MHz Bandwidth 18 Channels MSO2

Free Delivery in India | Lowest Global Shipping Charges

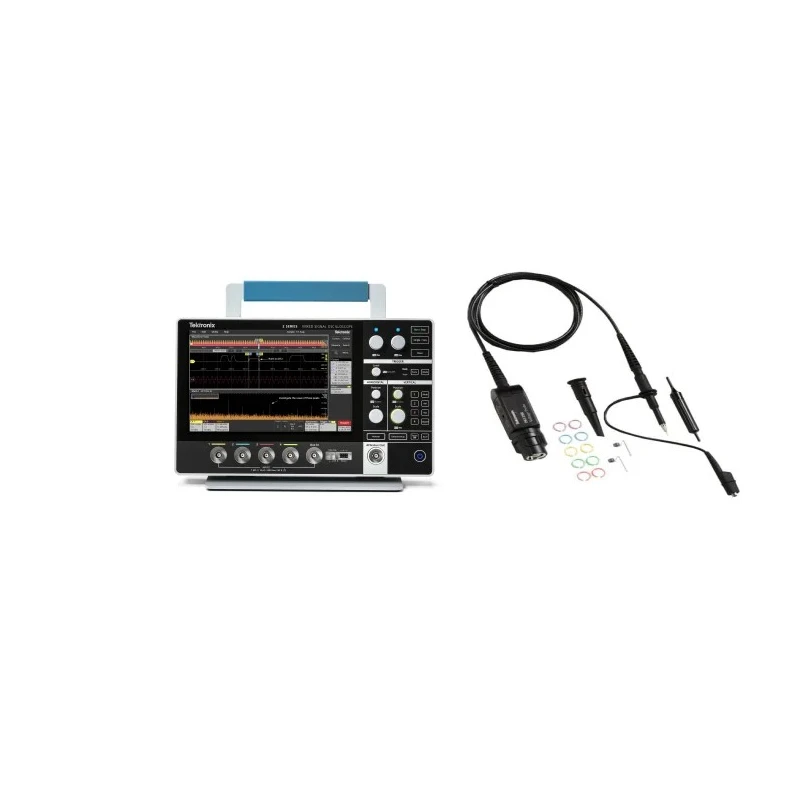

Tektronix 2 Series MSO Mixed Signal Portable Oscilloscope 500 MHz Bandwidth 18 Channels MSO2

Name: Tektronix 2 Series MSO Mixed Signal Portable Oscilloscope 500 MHz Bandwidth 18 Channels MSO2
Brand: TEKTRONIX
SKU: 177839



Category Oscilloscope Brand TEKTRONIX Condition New

Specifications

Country of Origin	China
Display Type	Capacitive Touch Display
Brand	Tektronix
Battery Life	4h
Battery type	Lithium-ion
Height	210mm
Model	MSO2
Depth	40.4mm
Width	344mm
Bandwidth	500MHz
Series	MSO2
Screen Size	10.1 in
Plug Type	Power Plug
Number Of Channels	18
Vertical Resolution	8 bit
Interface Type	VESA
Oscilloscope Type	Portable
Digital Channels	16
Oscilloscope Form	Mixed Signal
Minimum Time Base	1ns/div
Maximum Time Base	1000s/div
Lightweight and Portable	Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs)
Award Winning Touchscreen UI	Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function
Compact	Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm
Battery Powered	Optional battery pack supports two hot-swappable batteries for hours of unplugged testing
Bench Space Saver	VESA mount compatible with many off-the shelf VESA accessories
Built-in VNC Server	View and control your oscilloscope from PC, Tablet or Phone
Optional Extras Includes	Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below)

Key Features

Provides up to 4 analog channels and 16 digital channels for comprehensive signal analysis.
Features a large 10.1-inch capacitive touchscreen with intuitive user interface designed for touch operation.
Compact and lightweight design with instrument dimensions 210mm height, 344mm width, and 40.4mm depth.
Battery-powered option with lithium-ion battery lasting up to 4 hours for portable and field use.
Supports VESA mount compatibility to save bench space and allow flexible installation.
Offers a minimum time base of 1ns/div and a maximum time base of 1000s/div for precise time measurements.
Equipped with an 8-bit vertical resolution providing clear and accurate waveform display.
Includes TPP0200 200 MHz 10x probe for each channel and comes with calibration certificate and one-year warranty.

Product Description

Tektronix MSO2 2 Series MSO Portable Mixed Signal Oscilloscope delivers 500 MHz bandwidth and 18 channels, including 4 analog and 16 digital channels, with a 2.5 GS/s sample rate. This compact and lightweight instrument is designed for electronic debug and test across industrial, laboratory, and field environments.

The oscilloscope features a highly intuitive 10.1-inch capacitive touchscreen that simplifies access to functions via its award-winning user interface designed for touch operation. Measuring 210mm in height, 344mm in width, and 40.4mm in depth, with an optional battery pack increasing depth to 78mm, it provides excellent portability weighing 1.8 kg alone and up to 3.6 kg with two batteries installed.

Its lithium-ion battery supports up to 4 hours of unplugged testing, making it ideal for mobile applications and field measurements. The device supports VESA mounting, allowing flexible placement on workbenches and integration with standard accessories to optimize workspace.

With a vertical resolution of 8 bits and a minimum time base of 1 nanosecond per division, this oscilloscope meets high precision requirements. The scope includes TPP0200 200 MHz, 10x probes - one per analog channel - and ships with an instrument stand, external power supply, embedded help, installation and safety manuals (in multiple languages), and a calibration certificate traceable to national metrology standards with ISO9001/ISO17025 quality system registration.

Up to 4 analog and 16 digital channels support mixed signal analysis. Large, award-winning 10.1-inch capacitive touchscreen enhances usability. Compact instrument design is portable and bench-space efficient. Battery-powered operation with hot-swappable pack for mobile use.

VESA mount compatible for flexible setup on workbenches. Built-in VNC server enables remote operation from multiple devices. Includes comprehensive accessories and a one-year parts and labor warranty. Supported optional extras include protective cases, additional probes, and software.

This oscilloscope is suitable for use in industrial manufacturing, electronics R&D labs, HVAC system diagnostics, educational laboratories, and field service and maintenance. Its portability and advanced features make it a versatile instrument for engineers and technicians needing precise and reliable testing instruments on the go.
