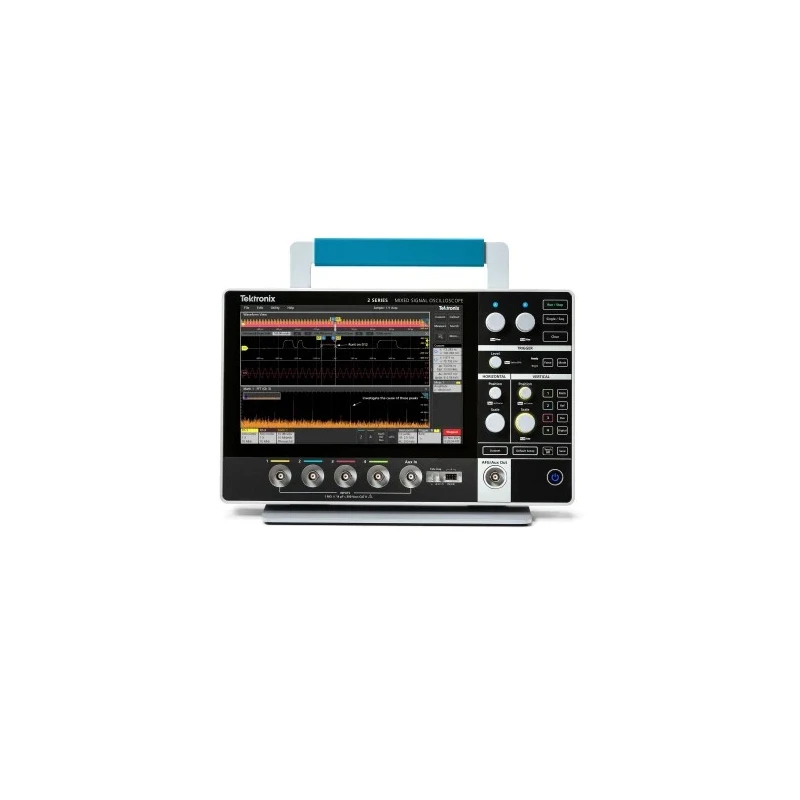

Tektronix 2 Series Mixed Signal Ultra Compact Oscilloscope 70 MHz Bandwidth 4 Channels Capacitive Touch Display MSO24 2-BW-70

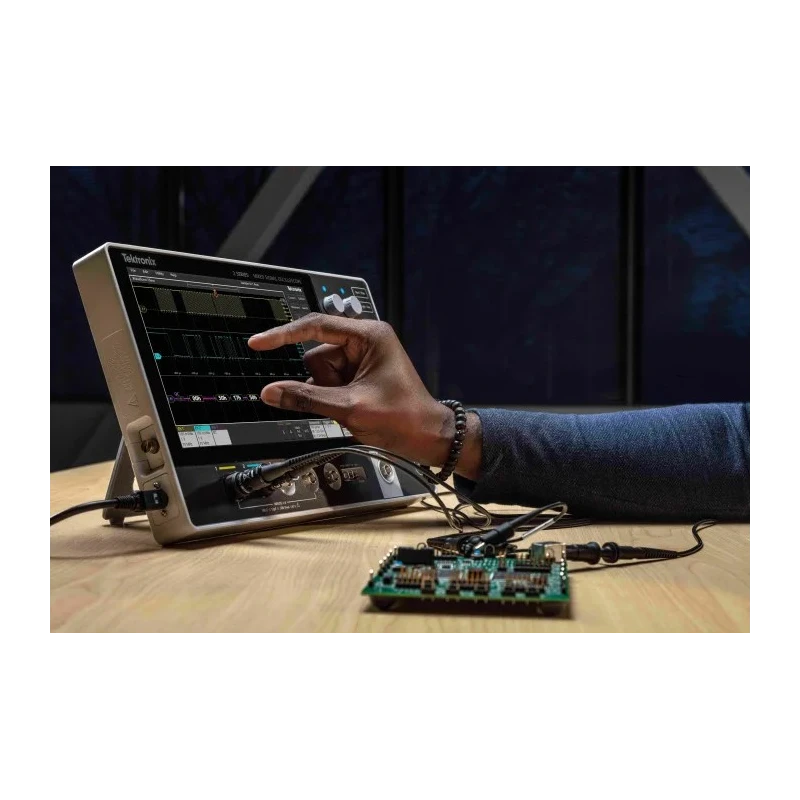

Tektronix MSO24 2-BW-70 2 Series Mixed Signal Oscilloscope is an ultra-compact instrument designed for advanced electronic debugging and test applications. Featuring a bandwidth of 70 MHz and 4 analog channels, this oscilloscope delivers precise waveform analysis in a portable form factor measuring just 210 mm in height, 344 mm in width, and 40.4 mm in depth.

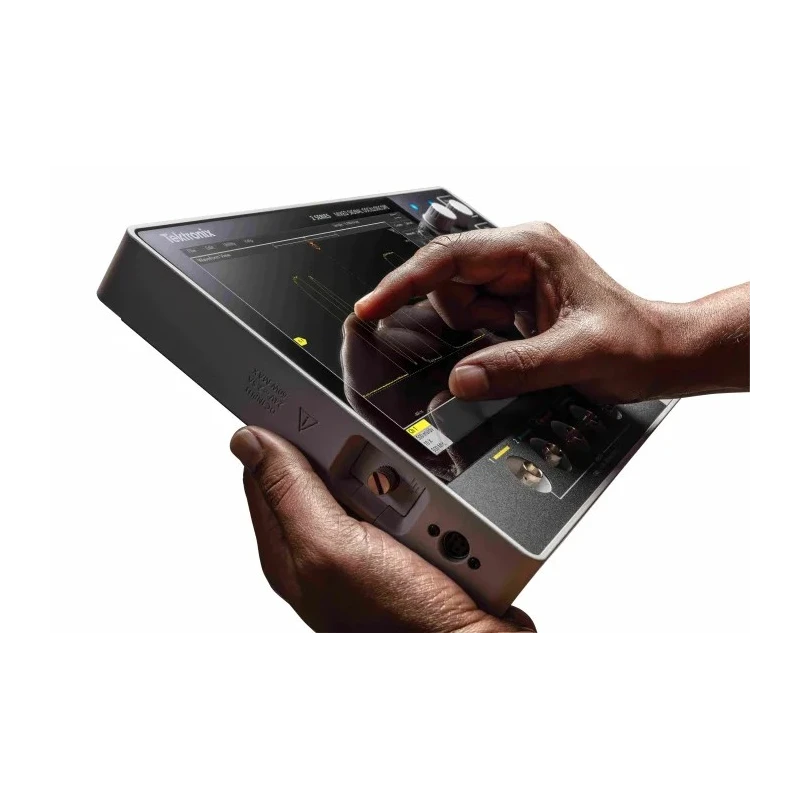

The Oscilloscope integrates a bright 10.1-inch capacitive touchscreen display that provides a user-friendly interface optimized for touch controls. Its mixed signal capabilities and multiple communication interfaces such as CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB make it ideal for automotive, industrial, and embedded system diagnostics.

Tektronix ensures accuracy with UKAS certified calibration and compliance with CE, RoHS, and UL safety standards. Its lightweight, compact design at 1.8 kg (instrument only) combined with an optional lithium-ion battery pack enables up to 8 hours of unplugged testing, supporting both benchtop and field measurements.

Additional features include VESA mount compatibility for flexible mounting options, built-in VNC server for remote control via PC, tablet or phone, and a suite of optional accessories such as 16 digital channel MSO, 50 MHz arbitrary function generator, digital pattern generator, advanced triggers, protocol decoding, and frequency counter functionalities.

Set contents include TPP0200 200 MHz 10x probes (one per channel), instrument stand, external power supply, embedded help, installation and safety manuals (English, Japanese, Simplified Chinese), and a calibration certificate documenting traceability to national metrology institutes. This instrument is backed by a one-year warranty covering all parts and labor.

Ultra-compact and lightweight design saves bench space and enhances portability. Intuitive capacitive touchscreen provides simplified user experience. Wide interface support for versatile communication protocol debugging.

Battery powered for extended untethered operation. Includes certified calibration for trusted measurement accuracy. Compatible with broad range of probes and accessories for diverse applications. Equipped with built-in VNC server for remote operation flexibility.

Meets multiple international safety and quality standards.

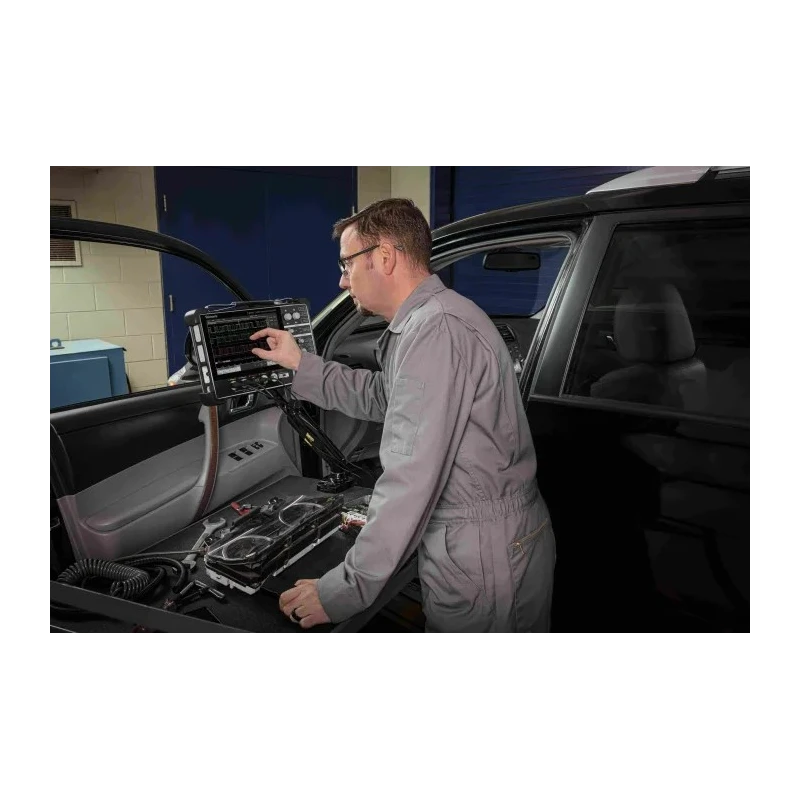

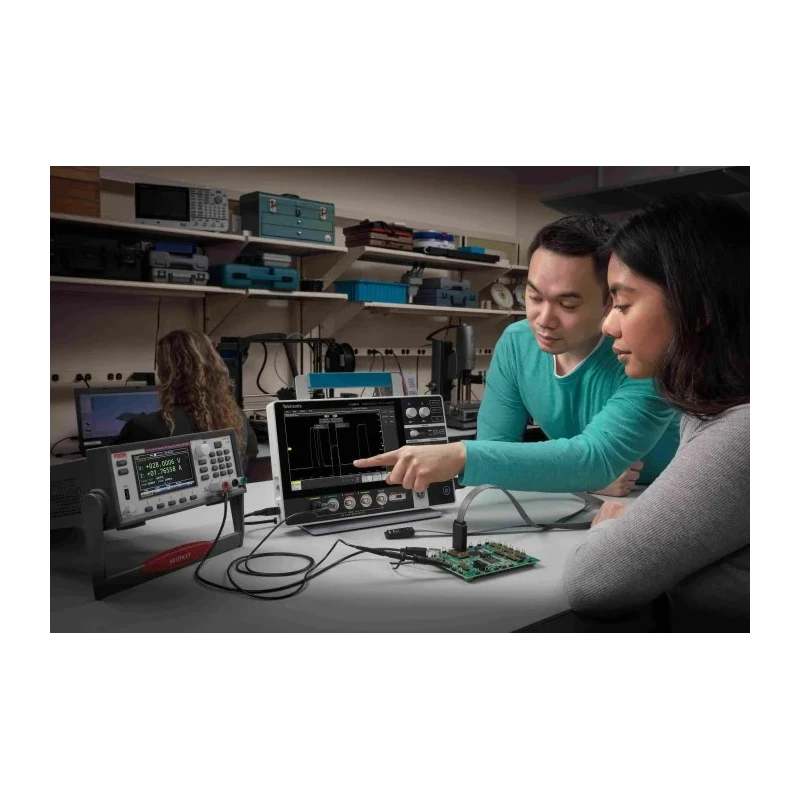

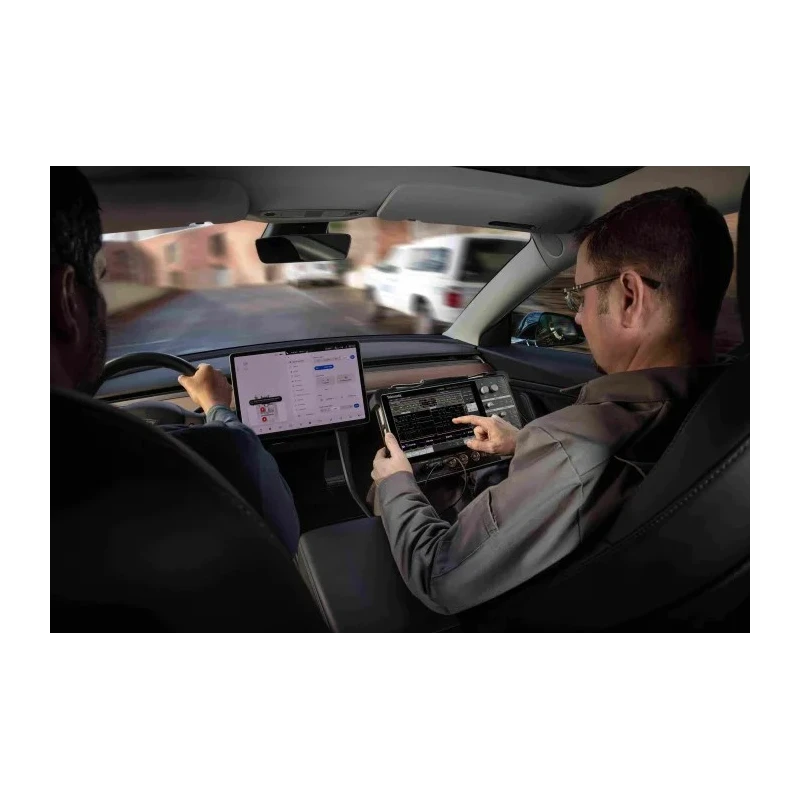

The Tektronix 2 Series MSO is suitable for industrial, laboratory, automotive diagnostic, manufacturing testing, and educational applications requiring portable, accurate mixed signal measurement solutions. Explore matched probes, accessories, and software for enhanced functionality within the EnvMart platform.
