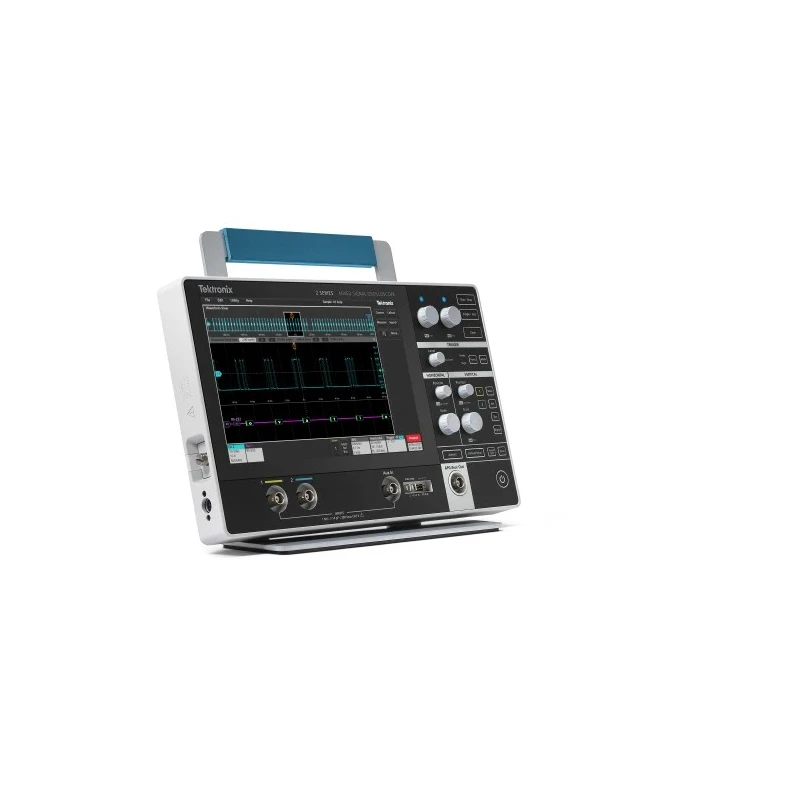

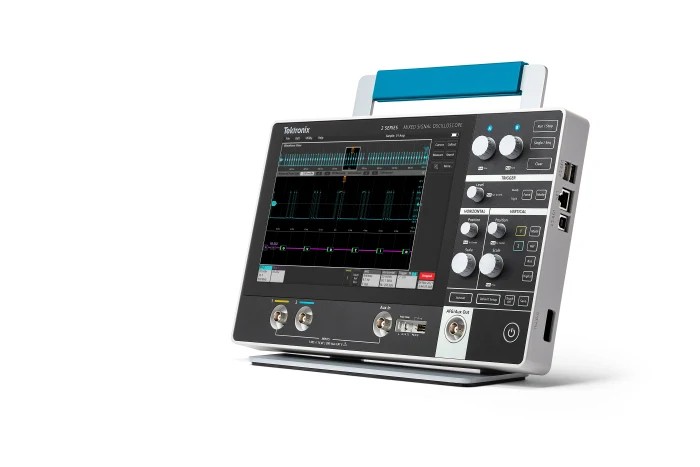

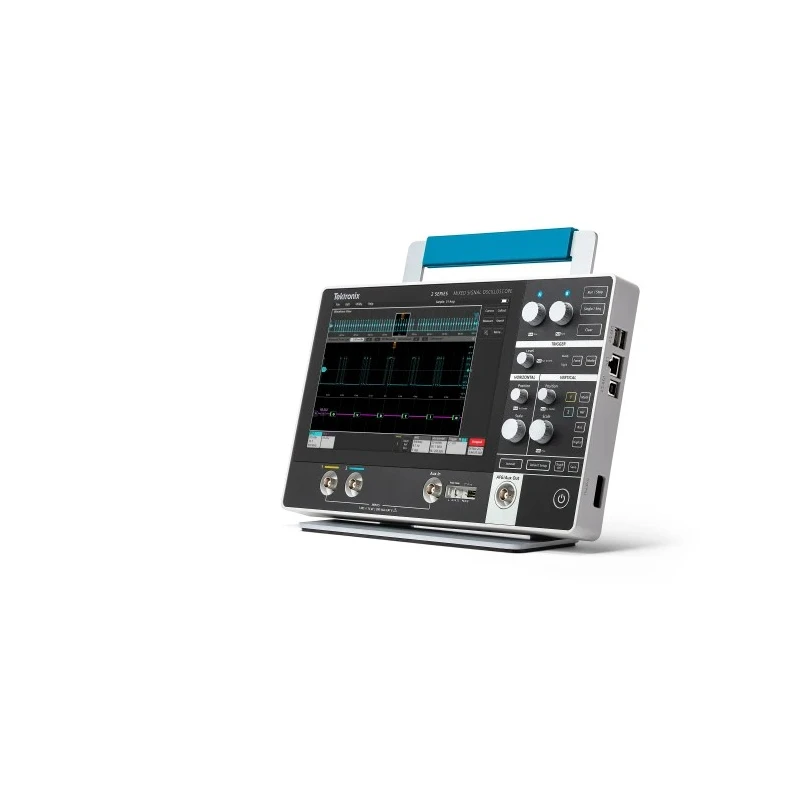

Tektronix 2 Series MSO Mixed Signal Oscilloscope, 200 MHz, 2 Channels, Ultra Compact, Capacitive Touch MSO22 2-BW-200

Tektronix MSO22 2-BW-200 2 Series MSO Mixed Signal Oscilloscope is engineered for demanding electronic test and measurement environments, delivering a blend of performance, portability, and robust features suitable for research, design, and engineering labs.

With 200 MHz analog bandwidth and 2 channels, this ultra-compact instrument enables precise measurement and reliable signal analysis. The Series MSO Oscilloscope supports a capacitive touch interface through a bright 10.1-inch color screen, allowing intuitive control and streamlined workflows. Its design accommodates bench, field and mobile applications, weighing only 1.8 kg and supporting battery operation for up to 8 hours; it is further enhanced by hot-swappable lithium-ion batteries for extended unplugged use.

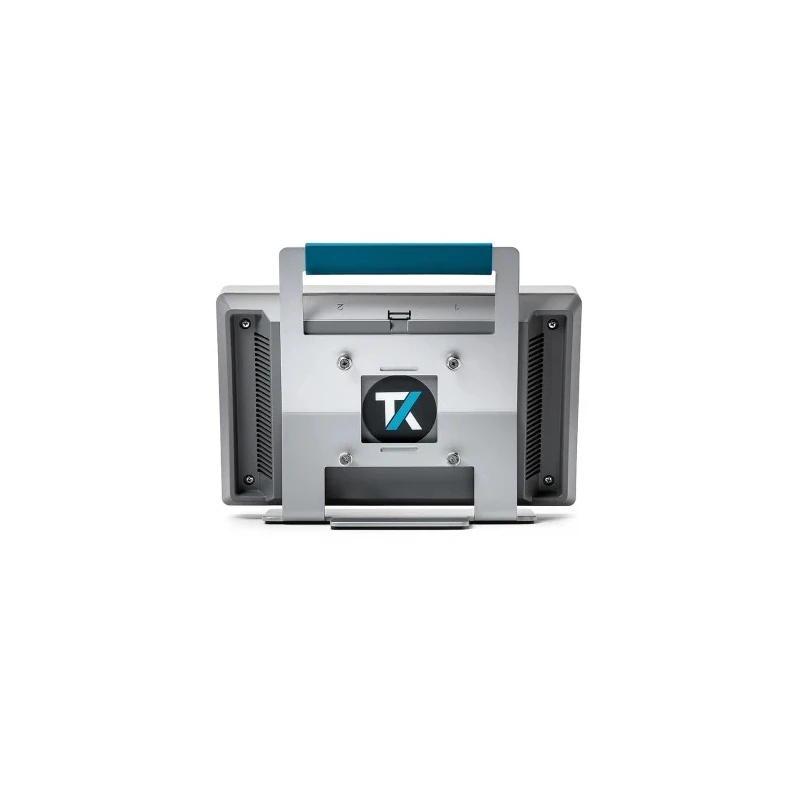

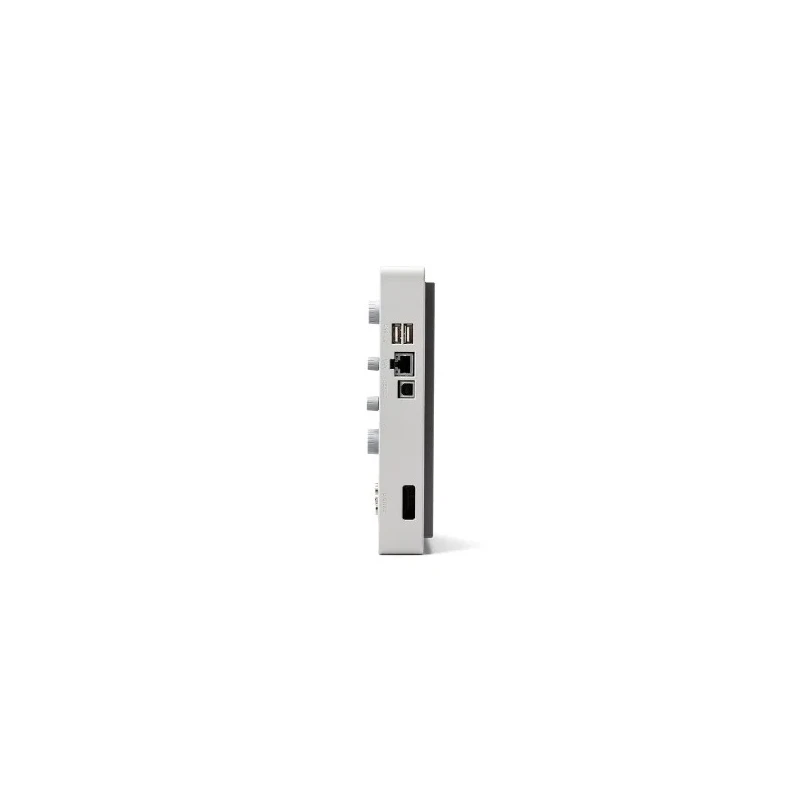

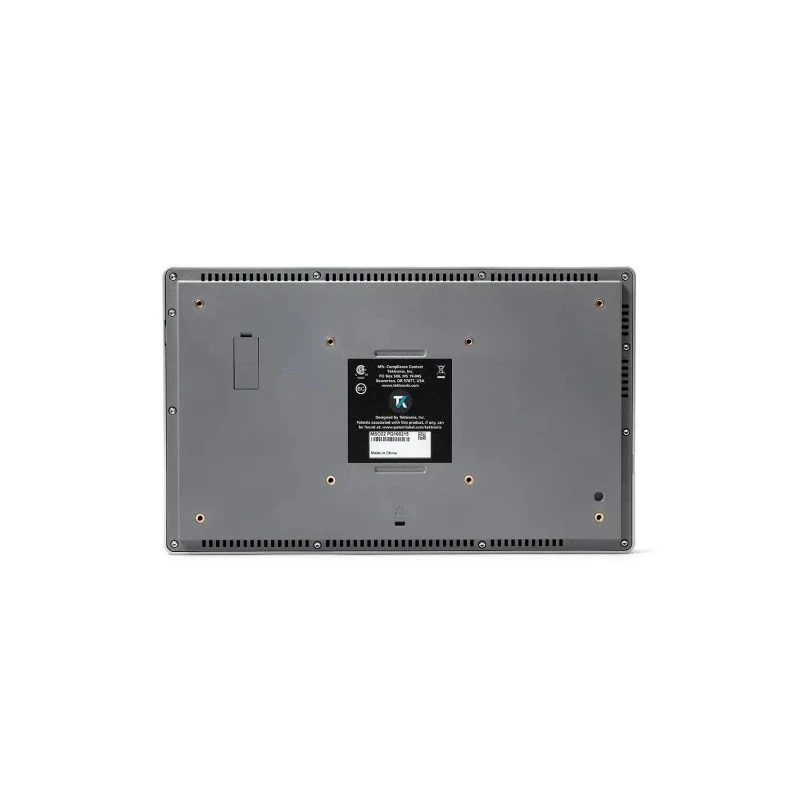

The oscilloscope integrates multiple protocol interfaces, including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB connectivity, making it ideal for mixed signal debugging and embedded system design. It offers vertical resolution of 8 bits and supports up to 16 optional digital channels, enabling detailed capture and analysis of complex signals. Built with a VESA mount, the unit saves valuable bench space and is easy to position for optimal viewing and operation in industrial and laboratory settings.

Safety and compliance are assured with CE, RoHS, and UL certifications, alongside a CAT II rating. As standard, the MSO22 2-BW-200 model ships with TPP0200 200 MHz 10x probes (one per channel), an instrument stand, external power supply, calibration certificates, installation and safety manuals translated in multiple languages, and embedded help documentation. Traceability to national metrology institutes and ISO9001/ISO17025 system registration is included.

200 MHz bandwidth enables precise signal analysis and electronic debugging. 2 analog channels support comprehensive mixed signal testing. Compact instrument dimensions: H 210 mm x W 344 mm x D 40.4 mm (instrument only). Lightweight, portable device - 1.8 kg without battery, up to 3.6 kg with battery pack.

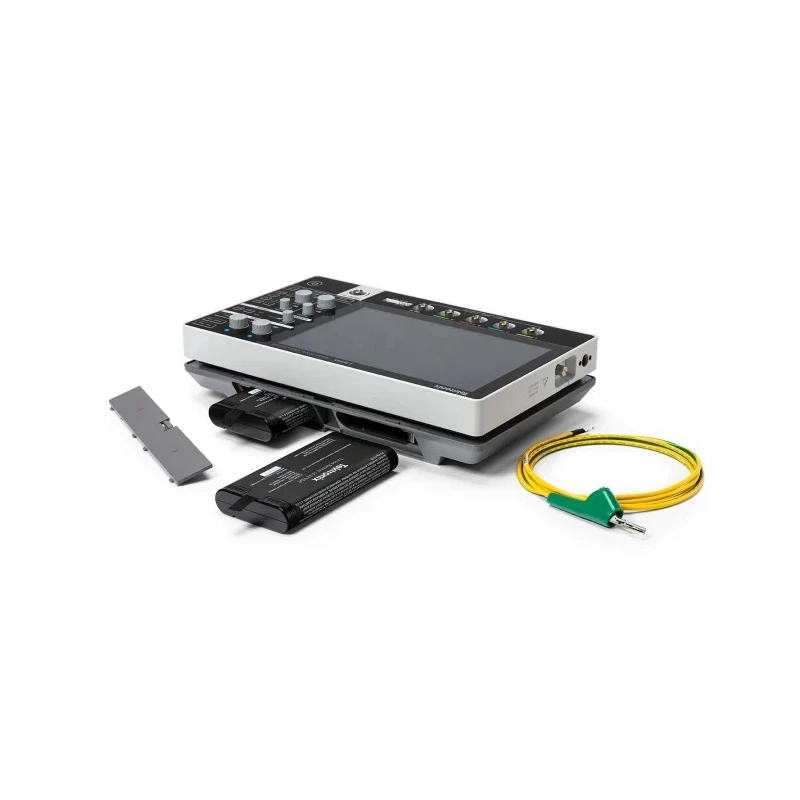

Capacitive touchscreen provides clear interface and responsive control. Lithium-ion batteries deliver long battery life and hot-swappable capability for fieldwork. Supports multiple protocols: CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB, digital channels optional.

Safety with CAT II rating and IEC/CE/UL compliance. Delivered with calibration package, probes, and essential accessories for bench or field use. VESA mount compatibility leverages flexible bench integration.

Tektronix oscilloscopes are widely used in electronics manufacturing, laboratory research, embedded system debugging, industrial test environments, R&D, automotive electronics, commercial device testing, and engineering education.
