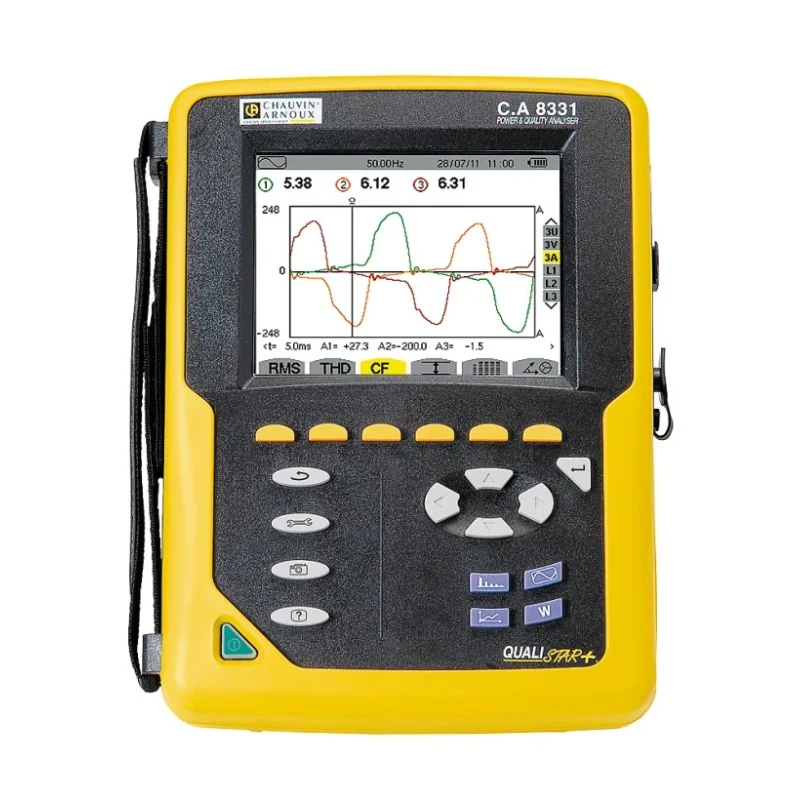

Chauvin Arnoux Power Quality Analyser 3-Phase 100 mA Max 1000 V AC 1200 V DC CA 8331 P01160511

Chauvin Arnoux P01160511 Power Quality Analyser CA 8331 is a precision instrument designed for maintenance and testing departments in industrial and administrative environments to monitor and analyze electrical network quality.

This 3-Phase analyser supports maximum current measurement of 100 mA and voltage measurements up to 1000 V AC and 1200 V DC. The analyser features a high-resolution TFT LCD display facilitating easy reading of detailed electrical parameters.

It accurately measures currents and voltages with accuracies of ±0.5% reading plus 2 mA for current and ±(0.5% + 200 mV) for voltage. Measurement capabilities include TRMS AC and DC for voltage and current, frequency range from 40 Hz to 70 Hz, power parameters such as W, VA, var, power factor, and energy values including Wh, varh, VAh, and others.

The CA 8331 supports in-depth power quality analysis including harmonics analysis up to the 50th order, flicker measurements (Pst and Plt), as well as vectorial representation of power signals and peak detection functions. It offers data logging and recording functionalities with sampling rates adjustable from 4 hours up to 2 weeks.

Powered by a rechargeable Nickel-Metal Hydride battery, it provides up to 13 hours of portable operation and can also run on mains power. The product complies with IEC 61010 safety standards with high safety category ratings of CAT III 1000 V and CAT IV 600 V, making it suitable for demanding electrical environments.

The analyser’s compact size and weight make it easy to handle and transport. It is supplied with essential accessories including a protective bag, voltage leads, crocodile clips, screen protector, USB and power cables, safety datasheet, multi-language operation manual CD, and software for data retrieval and analysis.

This device is highly applicable in industrial maintenance, electrical network quality testing, laboratory testing, commercial and HVAC electrical energy management, and manufacturing power quality monitoring.

Designed for industrial and administrative building electrical network quality analysis. Features a large color TFT LCD screen for clear and efficient data presentation. Capable of TRMS AC plus DC voltage and current, along with frequency measurement.

Measures power, energy, harmonics up to the 50th order, flicker, and conducts peak detection. Equipped with USB communication for data transfer and PC connectivity. Battery powered with rechargeable Nickel-Metal Hydride offering up to 13 hours operation.

Complies with IEC 61010 safety standards, suitable for 1000 V CAT III and 600 V CAT IV environments. Compact dimensions of 240 mm length, 180 mm width, and 55 mm height with a weight of 1.9 kg. Includes accessories like voltage leads, crocodile clips, screen protector, USB and power cables, user manuals, and PC software.
