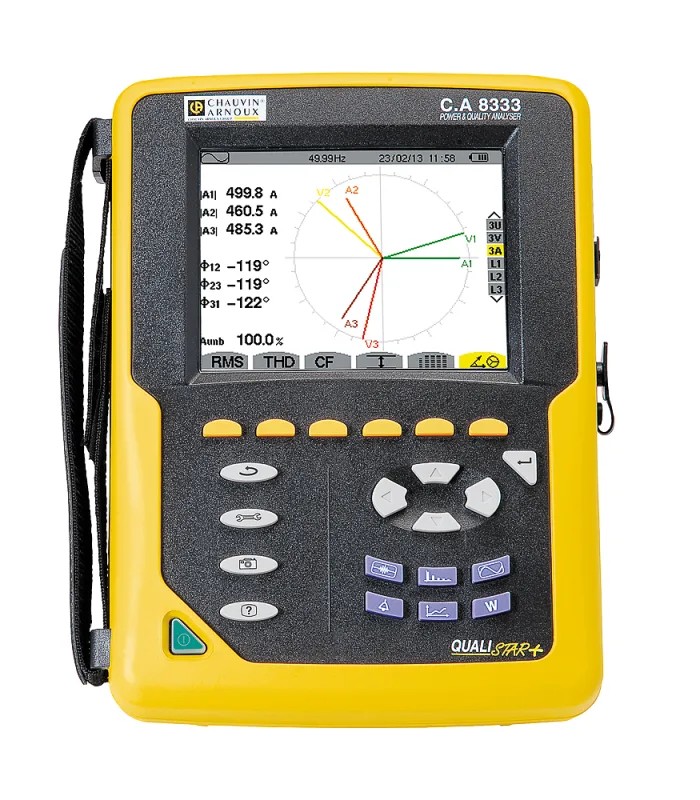

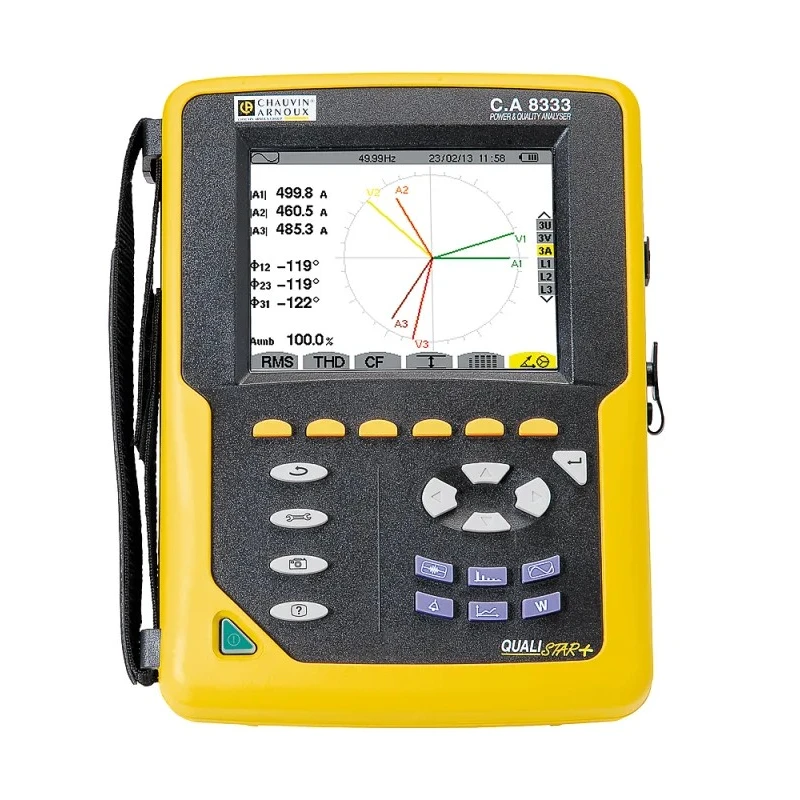

Chauvin Arnoux CA 8333 Power Quality Analyser, 3-Phase, 10000 A Max, 1000 V AC, 1200 V DC, Rechargeable NiMH P01160541
Specifications
| Country of Origin | France |
|---|---|
| Display Type | TFT LCD |
| Brand | Chauvin Arnoux |
| Battery Life | 13h |
| Battery type | Rechargeable Nickel-Metal Hydride |
| Height | 55mm |
| Length | 240mm |
| Model | P01160541 |
| Gross Weight | 1.9kg |
| Width | 180mm |
| Sampling rate | for several days to several weeks |
| Maximum Operating Temperature | 50°C |
| Voltage Accuracy | ±(0.5 % + 200 mV) |
| MEASUREMENT TYPE | Voltage, Current |
| ALARMS | 4000 of 10 different types |
| Minimum Operating Temperature | 0°C |
| Current Accuracy | ±0.5 % rdg + 2 mA |
| Interfaces | languages |
| Number of Phases | 3 |
| Interface Type | USB |
| Standards/Approvals | IEC 61010 |
| Maximum Frequency | 70Hz |
| Minimum Frequency | 40Hz |
| Maximum Voltage Measurement | 1000, 1200V ac |
| Maximum Current Measurement | 10000A |
| Maximum Power Measurement | 10mW |
| Measurement Standards | EN, IEC 61000-4-30 |
| Energy values | Wh, varh, VAh, VADh, BTU, toe, Joule |
| TRMS AC+ DC current | 5 mA to 10 kA depending on the sensors |
| Transients | up to 50 |
Key Features
- Equipped with a large color TFT LCD for clear and detailed readings.
- Operates with a rechargeable Nickel-Metal Hydride battery providing up to 13 hours of continuous use.
- Offers measurement of voltage, current, power values, harmonics up to the 50th order, and transients.
- Complies with IEC 61000-4-30 Class B measurement standards ensuring accurate and reliable data.
- Features a compact design with dimensions 240 mm length, 180 mm width, and 55 mm height for ease of handling.
- Includes USB interface for seamless data transfer and communication.
- Suitable for industrial, commercial, and laboratory environments with temperature operating range from 0°C to 50°C.
- Records multiple parameters simultaneously and supports long-term sampling for several days to weeks.
Product Description
Chauvin Arnoux CA 8333 Power Quality Analyser 3-Phase is a high-precision instrument designed for maintenance and test departments in industrial and administrative buildings to monitor electrical network quality. This analyser offers advanced power quality measurement capabilities including TRMS AC+DC voltage and current measurement, harmonics analysis, inrush current monitoring, and transient detection.
This model features a large TFT LCD display for easy viewing of complex data and supports multiple languages for global usability. It is powered by a rechargeable Nickel-Metal Hydride battery allowing up to 13 hours of operation, making it suitable for extended field use.
The CA 8333 supports measurement standards EN and IEC 61000-4-30 Class B, ensuring high accuracy. Its robust build with IP53/IK08 protection rating provides durability in demanding industrial environments. It includes USB connectivity for efficient data transfer to PC software for detailed analysis.
The analyser measures voltage ranges up to 1000 V AC and 1200 V DC, and current up to 10,000 A depending on sensors used. It calculates various power and energy values such as W, VA, var, Wh, varh and more. It offers alarm functions with up to 4000 alarms of 10 different types and records transients up to 50 counts over multiple periods.
Ideal for troubleshooting power quality issues, sizing installations, and compliance verification, the CA 8333 enhances electrical maintenance and diagnostics in industrial, commercial, manufacturing, laboratory, and power utility contexts.
Large color TFT LCD for clear data visualization. Rechargeable NiMH battery with 13-hour life for field work. TRMS AC+DC voltage and current measurement including harmonics and transients. Compliant with IEC 61000-4-30 Class B measurement standards.
USB interface for data transfer and analysis software integration. Compact dimensions and IP53/IK08 protection for industrial durability. Supports long-term sampling and recording of multiple electrical parameters.
The package includes a bag for accessories, voltage leads, crocodile clips, color-coded inserts, a screen protector, USB and power cables, safety datasheet, user manual CD, and PC data retrieval software. This ensures immediate readiness for professional power quality analysis tasks.
Explore more Power Quality Analysers and measuring instruments in the Industrial Machines & Instruments category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure voltages up to 1000 V AC and 1200 V DC.
It has a maximum current measurement capacity of 10,000 A, depending on the sensors used.
The operating temperature range is from 0°C to 50°C.
The rechargeable Nickel-Metal Hydride battery provides up to 13 hours of continuous use.
It complies with IEC 61000-4-30 Class B measurement standards, ensuring accurate data collection.
It can measure voltage, current, power values, harmonics up to the 50th order, and transients.
It features a large color TFT LCD for clear and detailed readings.
The gross weight of this unit is 1.9 kg.
It includes a USB interface for seamless data transfer and communication with PC software.
It can record up to 4000 alarms of 10 different types.
It supports long-term sampling for several days to weeks.
This model has dimensions of 240 mm in length, 180 mm in width, and 55 mm in height.
