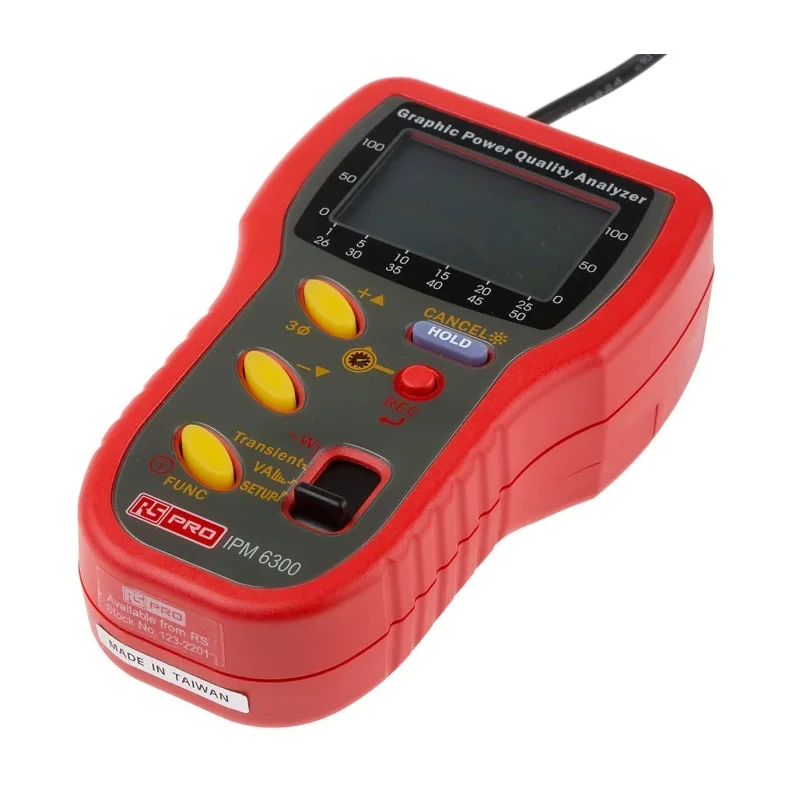

RS PRO Power Quality Analyser 600V with LCD Display, RS232C Interface IPM6300
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Battery Life | 200h |
| Battery type | AA |
| Height | 130mm |
| Length | 80mm |
| Model | IPM6300 |
| Gross Weight | 450g |
| Width | 43mm |
| Maximum Operating Temperature | 50°C |
| MEASUREMENT TYPE | Current |
| Minimum Operating Temperature | -10°C |
| Current Accuracy | ±1 % |
| Interface Type | RS232C |
| Maximum Frequency | 65Hz |
| Minimum Frequency | 65Hz |
| Maximum Voltage Measurement | 600V |
| Maximum Power Measurement | 9999kW |
Key Features
- Measures single and balanced three-phase voltage and current waveforms accurately.
- Displays active, reactive, and apparent power along with power factor and phase angle.
- Supports energy calculation and transient event detection including swell, dip, and outage.
- Features graphical harmonic analysis up to the 50th order and total harmonic distortion assessment.
- Programmable CT ratio and data logging capacity up to 50,000 readings with flexible intervals.
- Includes backlit 128x64 dot matrix LCD and real-time clock.
- Operates between -10°C and 50°C with AA battery powered operation lasting approximately 200 hours.

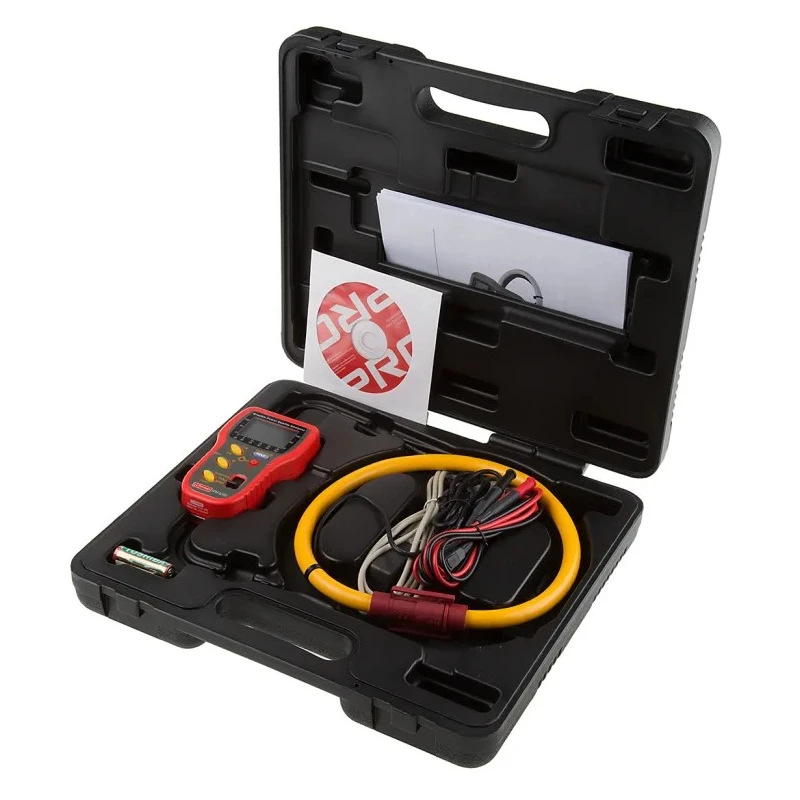

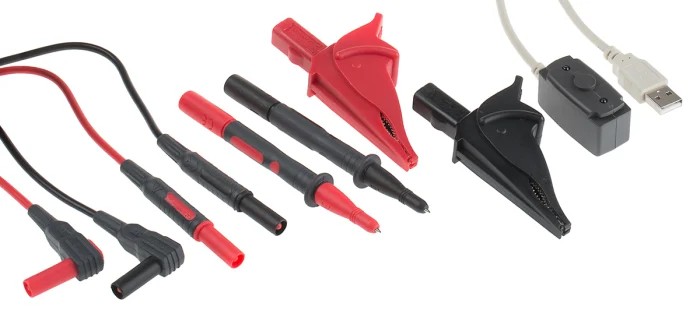

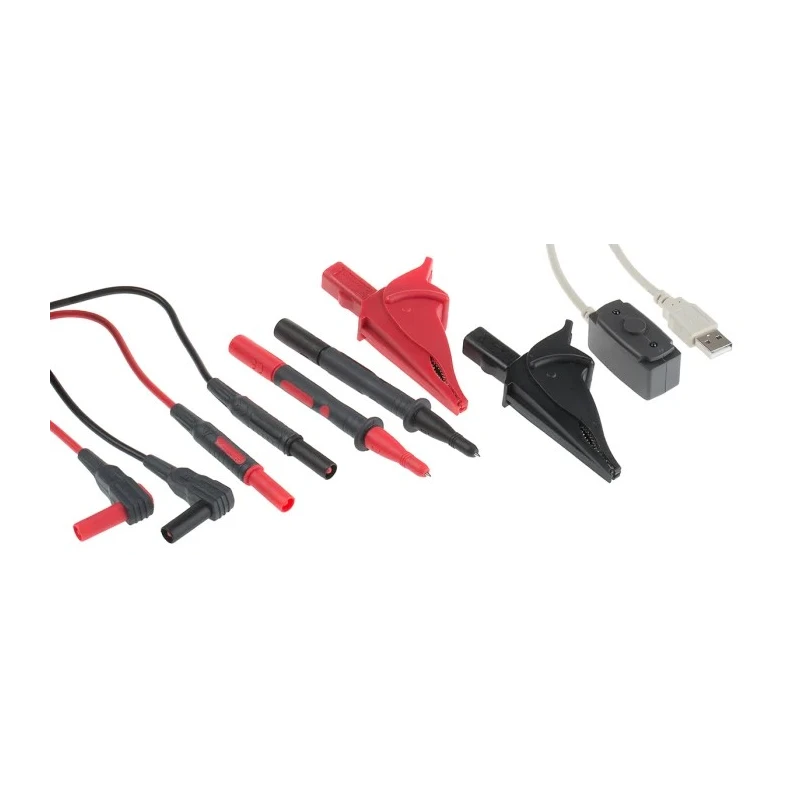

- Equipped with opto-isolated USB lead, PC software, test leads with crocodile clips, and user manuals.
Product Description

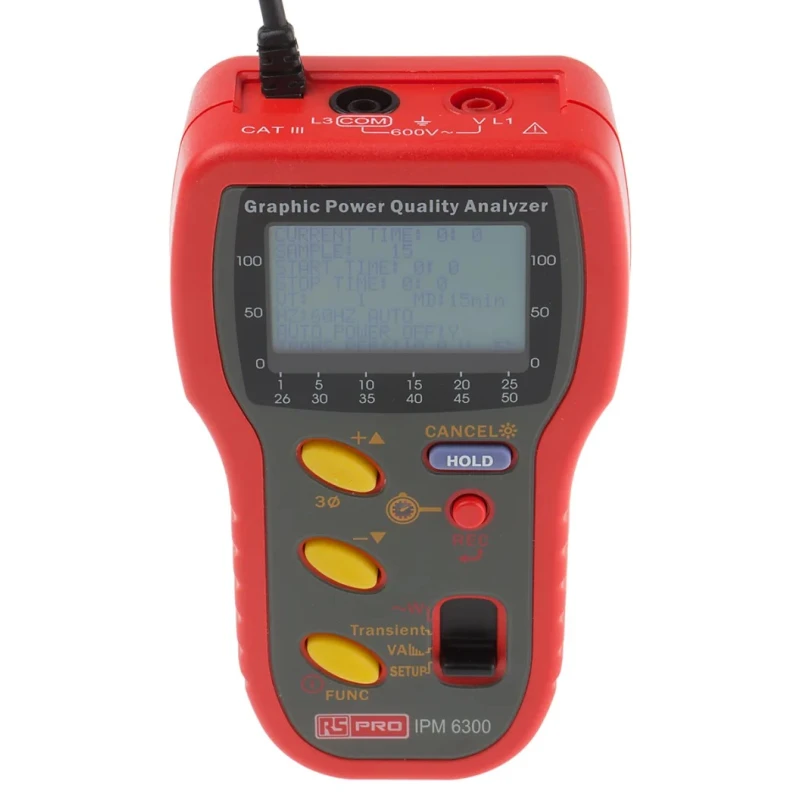

RS PRO IPM6300 Power Quality Analyser 600V is a versatile instrument designed for accurate monitoring and diagnosis of power quality in electrical systems. Equipped with a 128x64 dot matrix LCD with backlight, it provides graphical display of voltage and current waveforms for both single-phase and balanced three-phase systems. The analyser measures active power, reactive power, apparent power, power factor, and phase angle, enabling comprehensive energy efficiency analysis.
The device supports energy calculations in watt-hours and kilowatt-hours and includes transient detection capabilities for swell, dip, and outage events. Its graphical harmonic analysis features enable the examination of voltage and current harmonics up to the 50th order, including total harmonic distortion (THD) analyses. Programmable CT ratios up to 3000 and data logging of up to 50,000 readings ensure suitability for high-power industrial applications.
The IPM6300 is powered by AA batteries providing an operational life of approximately 200 hours and operates reliably in ambient temperatures from -10°C to 50°C. Connectivity is supported via RS232C interface and an opto-isolated USB lead is included for safe PC communications and data transfer using supplied analysis software.
Applications include comprehensive power quality analysis and fault diagnosis in electrical installations, commercial power circuits, and industrial machinery. The analyser is an essential tool for engineers and maintenance professionals aiming to optimize power usage and improve system reliability.
Measures single and balanced three-phase voltage and current. Graphical LCD display with backlight for clear data visualization. Active, reactive, and apparent power measurement with power factor. Energy calculations and transient event logging.
Harmonic analysis up to the 50th order with THD assessment. Programmable CT ratio and extensive data logging capabilities. RS232C interface with included opto-isolated USB lead and PC software. Battery powered with long operational life and wide temperature range.
The RS PRO IPM6300 Power Quality Analyser combines user-friendly operation with advanced measurement features to serve a broad spectrum of industrial, laboratory, and commercial power quality testing needs. Explore more power measurement solutions at EnvMart for enhanced electrical infrastructure management.
Explore more products in our Power Quality Analysers category.
