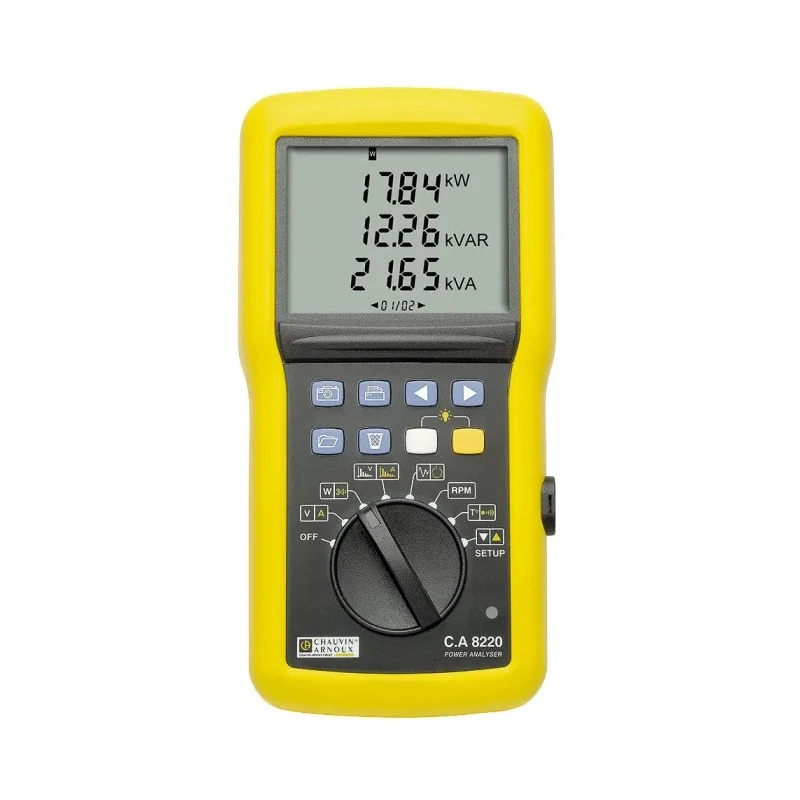

Chauvin Arnoux CA 8220 Power Quality Analyser, 3-Phase, 6500 A Max, 600 V AC, IEC 62301, LCD Backlight Display P01160620
Specifications
| Country of Origin | France |
|---|---|
| Accuracy | 0.5% |
| Display Type | LCD Backlight |
| Brand | Chauvin Arnoux |
| Power | 1.2 W → 10 MW - VA, var, PF / Cos / Tan |
| Battery Life | 20h |
| Battery type | AA |
| Height | 60mm |
| Length | 211mm |
| Memory | 99 pages max |
| Model | P01160620 |
| Gross Weight | 880g |
| Width | 108mm |
| Sampling frequency | 12.8 kHz |
| Bandwidth | 40 → 70 Hz |
| Maximum Operating Temperature | 50°C |
| Functions | Threshold monitoring |
| MEASUREMENT TYPE | Current, Voltage, Frequency |
| Minimum Operating Temperature | 0°C |
| Current Accuracy | ±0.5 % rdg + 1 Digits |
| Harmonics | THD, 1 to 50th order rk rms and % |
| Number of Phases | 3 |
| Interface Type | USB, RS232 |
| Standards/Approvals | IEC 61010 |
| Maximum Frequency | 69Hz |
| Minimum Frequency | 40Hz |
| Maximum Voltage Measurement | 600V ac |
| Maximum Current Measurement | 6500A |
| Maximum Power Measurement | 9999kW |
| Measurement Standards | IEC 62301 |
| Current probes are available as accessories | Ampflex A193 and MN93A |
| V Max | 600 VRMS |
| Values | Min, Max, Peak |
Key Features
- Measures current, voltage, and frequency with high accuracy for electrical installations.
- Maximum power measurement up to 9999 kW, ideal for industrial applications.
- Operates within temperature range of 0°C to 50°C for versatile use.
- Supports USB and RS232 interfaces for easy data transfer and communication.
- Battery powered with AA batteries providing up to 20 hours of usage time.
- Compact and ergonomic design measuring 211 mm length, 108 mm width, and 60 mm height.
- Compliant with IEC 61010 safety standards ensuring reliable operation.
- Memory capacity of up to 99 pages for data storage and analysis.
Product Description

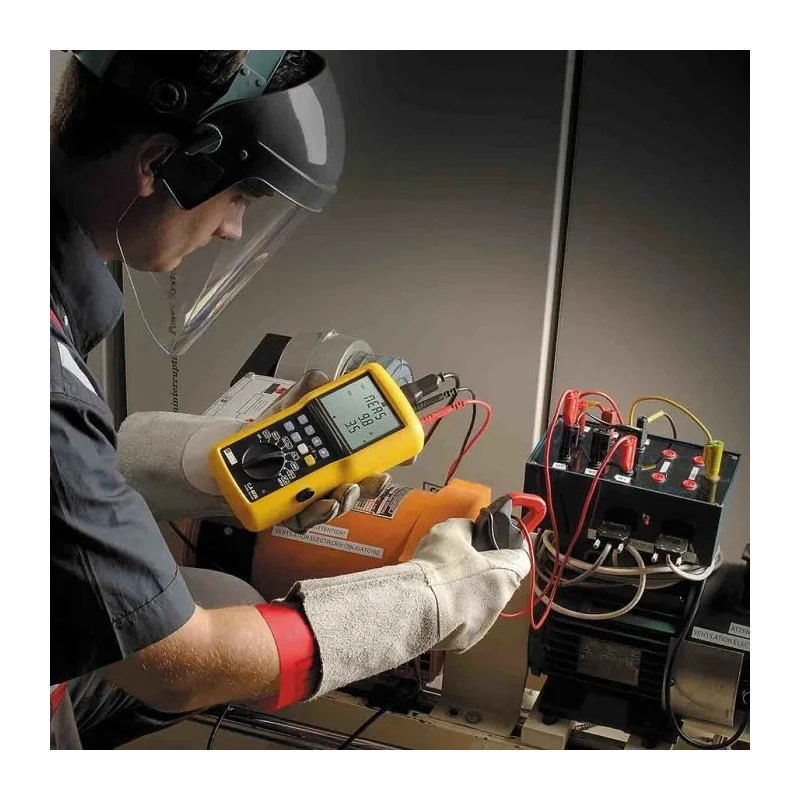

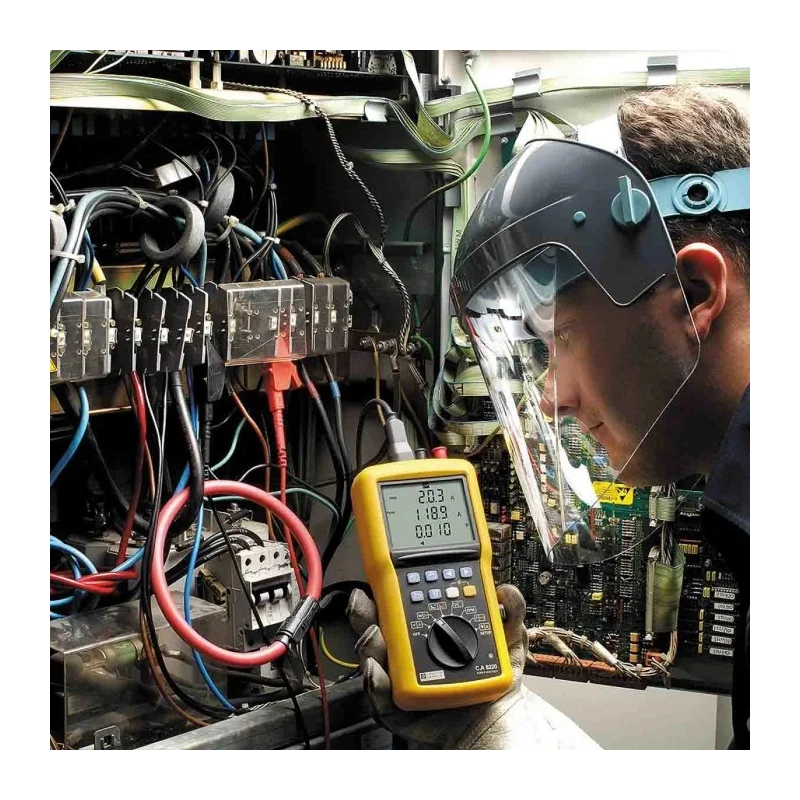

Chauvin Arnoux P01160620 is a professional-grade CA 8220 Power Quality Analyser designed for tradesmen, installers, and maintenance departments in construction and electrical systems analysis. This 3-phase analyser supports measurements of current, voltage, and frequency up to a maximum of 6500 A and 600 V AC, making it suitable for industrial and commercial electrical testing.
Equipped with a high-contrast LCD backlight display, it offers clear visualization of data including power parameters such as VA, VAR, W, power factor (PF), and harmonics analysis. The instrument conforms to IEC 62301 and IEC 61010 standards for measurement and safety compliance.

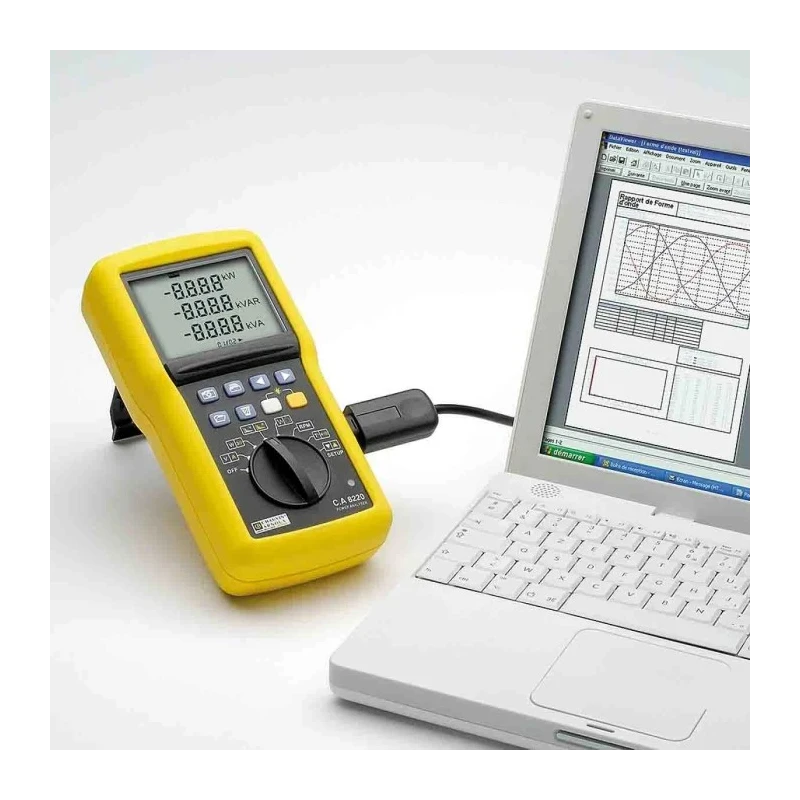

The device includes USB and RS232 interfaces for seamless connection with PCs, complemented by the PAT (Power Analyser Transfer) software that enhances data configuration and processing capabilities. Its battery operation with AA cells provides approximately 20 hours of continuous use, ensuring portability and flexibility in field measurements.

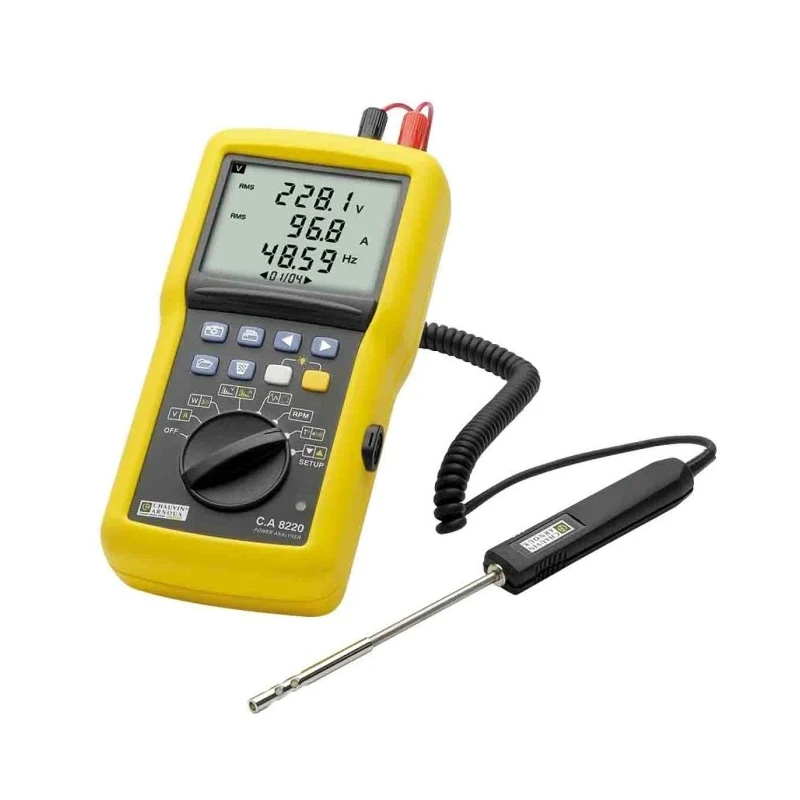

The compact dimensions (211 mm × 108 mm × 60 mm) and light weight of 880 g make it easy to handle and transport. It has a memory capacity that stores up to 99 pages of recorded data, suitable for logging and analysis over time. Advanced features include detection of phase rotation, speed of rotation, threshold monitoring, and measurement of energy and temperature (PT100 sensor support).
The CA 8220 model is ideal for electrical installation testing, maintenance, and educational use, especially where systems incorporate power electronics. Current sensors such as Ampflex A193 and MN93A are available as accessories, allowing for extended measurement capabilities.
High accuracy measurements with ±0.5% reading + digits tolerance. Bandwidth from 40 Hz to 70 Hz with sampling frequency at 12.8 kHz. Monitors total harmonic distortion (THD) up to 50th order. Functions include minimum, maximum, and peak value logging.
Automatic sensor recognition enhances usability and safety during operation. This analyser supports diverse industrial, laboratory, construction, and maintenance applications, providing reliable power quality diagnostics and performance evaluation.
