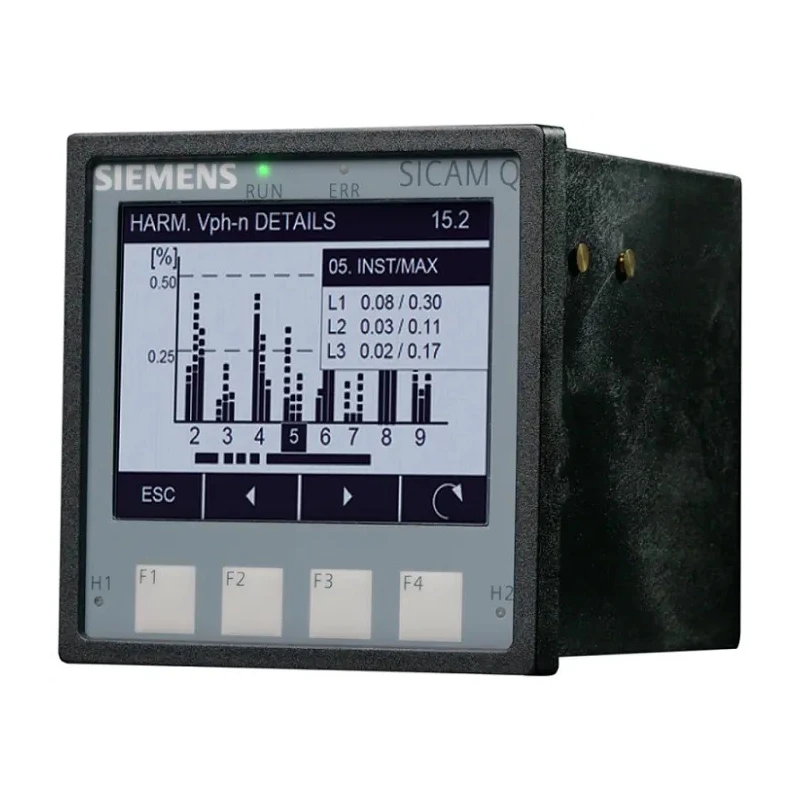

Siemens Power Quality Analyser AC/DC 10A Maximum Current, 690V Maximum Voltage, IEC 61000 Standard 7KG9501-0AA01-2AA1

Siemens 7KG9501-0AA01-2AA1 Power Quality Analyser AC/DC is an advanced instrument engineered to provide accurate and comprehensive power quality monitoring in industrial, commercial, HVAC, and energy management systems. The device supports both AC and DC current types with a maximum current capacity of 10 A and can handle voltages up to 690 V, ensuring applicability across diverse electrical networks.

The analyser conforms to IEC 61000 standards, ensuring precise and reliable measurements essential for power quality assessment, including transient events, voltage dips, and asymmetry detection. Its compact form factor of 100 x 96 x 96 mm facilitates easy integration within control panels and electrical cabinets.

User interaction is enhanced via the LCD display, while the built-in web server enables remote parameter adjustments and real-time monitoring. Communication compatibility with Modbus TCP and IEC 61850 protocols ensures seamless integration within automation and SCADA systems. The device’s 2GB memory storage supports extensive data logging, making it suitable for long-term energy monitoring and disturbance analysis.

Synchronization of data with network time via NTP provides accurate event time stamping. Its electrical connections use screw terminals, accommodating conductor cross-sections from 0.2 mm² to 2.5 mm², which is optimal for various industrial wiring standards.

Capable of measuring four AC voltage and current inputs for detailed system analysis. Comprehensive power quality analysis facilitated by Total Harmonic Distortion measurement capabilities. Designed to operate efficiently in ambient temperatures ranging from -25 °C to +55 °C.

Ideal for industrial energy management, load profiling, and power disturbance logging. Ensures reliability and compliance for critical electrical monitoring applications.

This Siemens power quality analyser is manufactured in India and represents a highly reliable solution for professionals in electrical and automation fields. For more power quality measurement products and accessories, explore the EnvMart industrial instruments category.
