Neutrik 20A 250V Panel Mount Nylon Body Mains Plug Crimp Termination NAC3MPXXB
Specifications
| Country of Origin | Liechtenstein |
|---|---|
| Voltage | 250V |
| Brand | Neutrik |
| Colour | Black, Grey |
| Orientation | Straight |
| Body Material | Nylon |
| Current | 20A |
| Model | NAC3MPXXB |
| Connector Type | Appliance Outlet Connector |
| Mount Type | Panel Mount |
| Contact Material | Copper Alloy |
| Series | PowerCON |
| Termination Type | Crimp |
| Pole Format | 3 |
| Contact Plating | Silver |
| Maximum Cable Diameter | 2.05mm |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Male |
| Connector Gender | Male |
| Number of USB Ports | 0 |
| Neutrik, 20A, 250V Mains Plug Blue, Black, Panel Mount Nylon, CrimpBrand | Neutrik |
Key Features
- Provides reliable panel mount installation with a straight orientation.
- Constructed with a black and grey nylon body for strength and durability.
- Features crimp termination and male connector gender for secure cable connection.
- Designed for up to 20A current and 250 volts AC voltage rating.
- Includes copper alloy contacts with silver plating for excellent conductivity.
- Supports a maximum cable diameter of 2.05 mm for compatibility with various cables.
- Utilizes a PowerCON series design ensuring ergonomic, robust, and safe locking functionality.
- Complies with industry safety standards providing secure earth connection and quick lock release.
Product Description

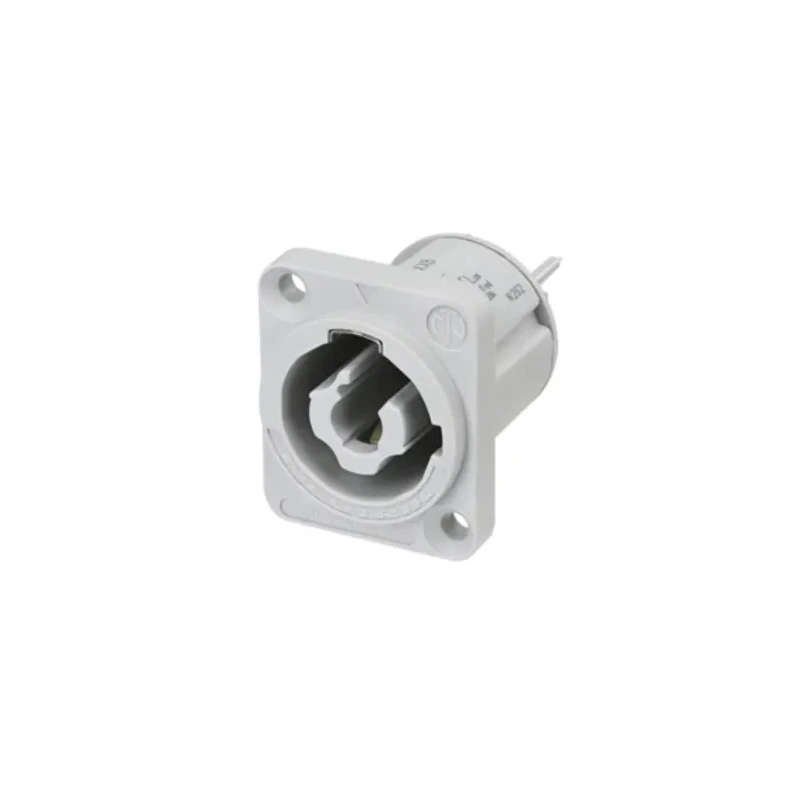

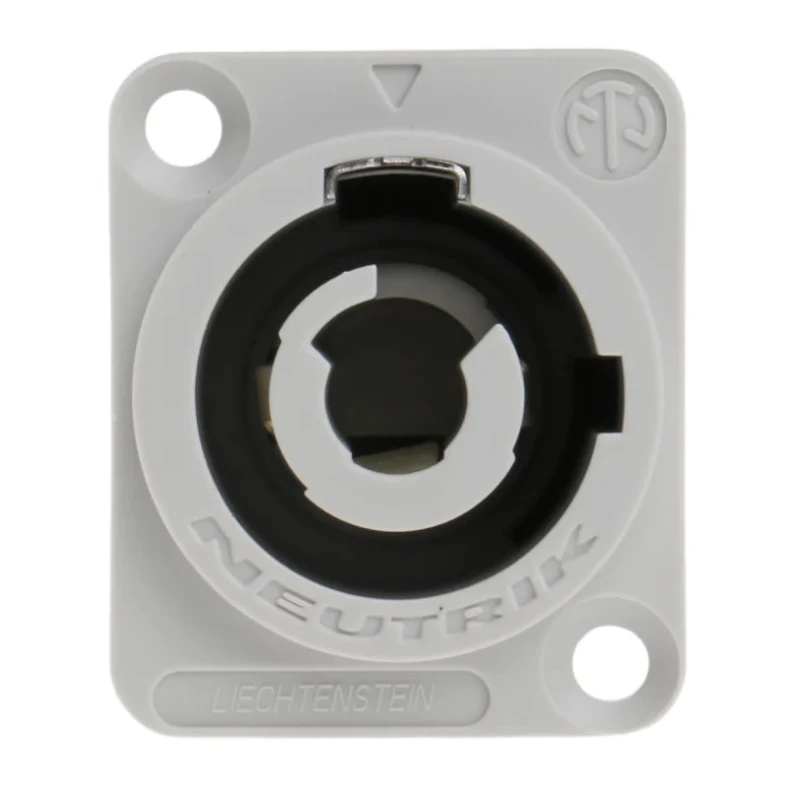

Neutrik NAC3MPXXB is a professional-grade 20A, 250V mains plug designed for panel mount applications. It features a rugged black and grey nylon body providing excellent mechanical strength and insulation. This connector is ideal for industrial, audio-visual, and power distribution equipment requiring secure locking power connections.
The panel mount design has a straight orientation with male connector contacts finished in silver-plated copper alloy, ensuring superior electrical conductivity and corrosion resistance. The termination type is crimp, allowing secure attachment to cables up to 2.05 mm diameter.
This connector belongs to the PowerCON series, well known for enhanced safety and reliability. It incorporates an ergonomic design with a fast and easy twist lock latching system and colour-coded, non-interchangeable A (Power In) type. The earth connection is made first to guarantee safe operation.
The connector is UL approved, SEV approved, and VDE certified, meeting stringent industry requirements for electrical safety and robustness. Its unique chuck type strain relief and two-component bushing provide improved kink protection and long service life.
Panel mount quick lock with release lever. Colour-coded and non-interchangeable for safety. Robust and ergonomic design for demanding industrial use. Silver-plated copper alloy contacts ensure reliable power transfer. Rated for 20A and 250V AC for high current applications.
Compact panel mount variant suitable for control panels and equipment enclosures. Manufactured in Liechtenstein with guaranteed quality. Compatible with PowerCON systems for professional installations.
This panel mount mains plug is widely used in industrial, laboratory, commercial audio-visual, and manufacturing power distribution systems. Its combination of durability, safety certifications, and ergonomic design makes it an excellent choice for professional power connector needs.
Explore more Power Connectors and Mains Plugs from Neutrik and other leading brands in EnvMart to meet your industrial and electrical connector requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 20A.
It has a voltage rating of 250V AC.
The body is made of nylon, and it features copper alloy contacts with silver plating for conductivity.
It supports a maximum cable diameter of 2.05 mm.
It utilizes a crimp termination type for secure cable attachment.
It features a twist lock latching system that ensures secure connections and allows for quick release.
The connector has a straight orientation for panel mount applications.
It is UL approved, SEV approved, and VDE certified, meeting industry safety standards.
This model is manufactured in Liechtenstein.
It belongs to the PowerCON series, known for enhanced safety and reliability.
This connector features a male connector gender.
