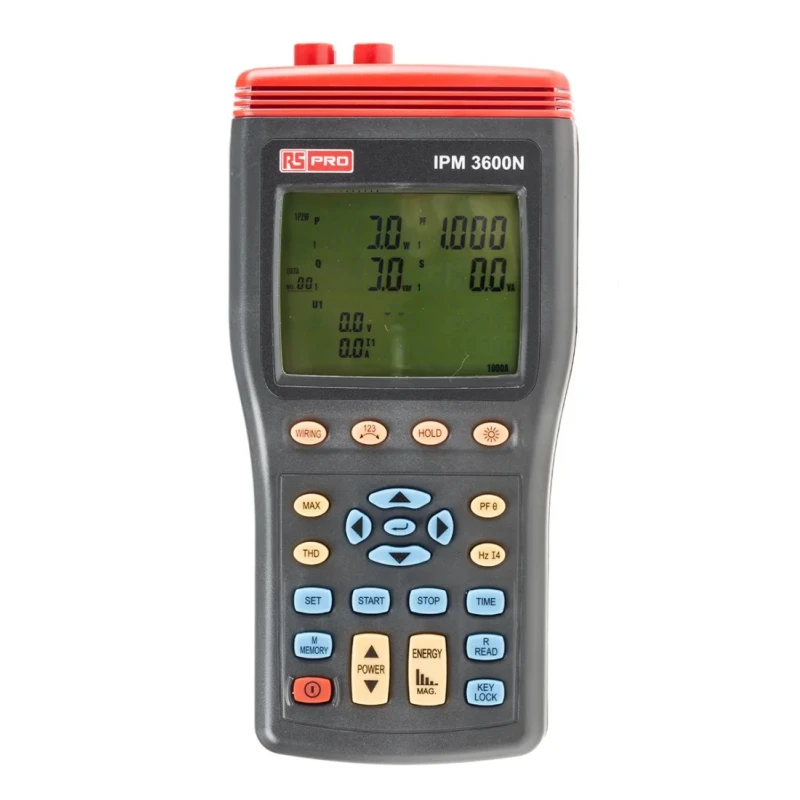

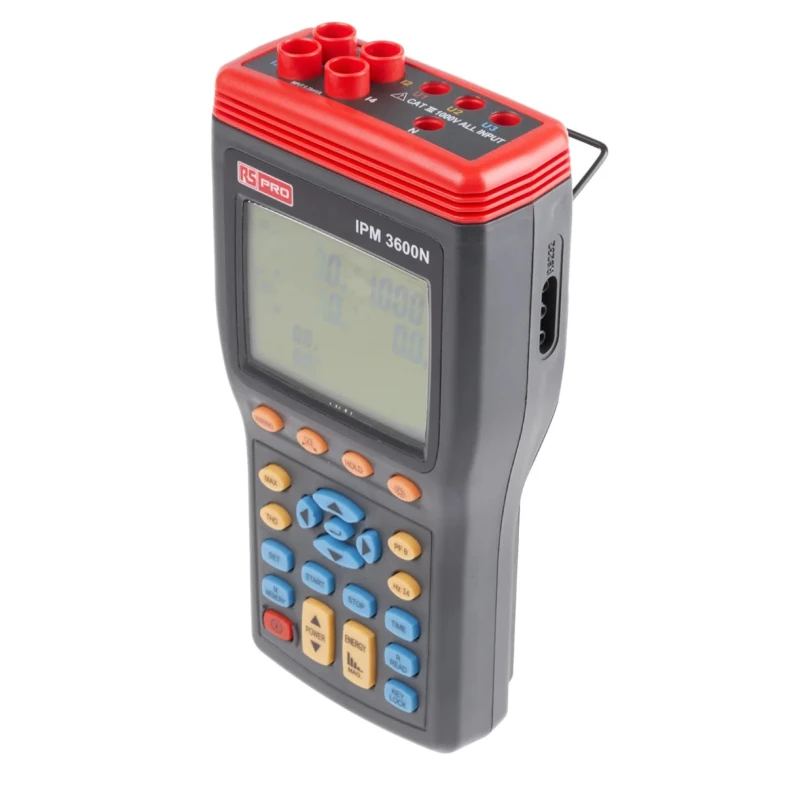

RS PRO 3-Phase Power Quality Analyser IPM3600N, 999.9 A Max Current, 999.9 V Max Voltage IPM3600N

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 3-Phase Power Quality Analyser IPM3600N, 999.9 A Max Current, 999.9 V Max Voltage IPM3600N

Name: RS PRO 3-Phase Power Quality Analyser IPM3600N, 999.9 A Max Current, 999.9 V Max Voltage IPM3600N
Brand: RS PRO
SKU: 191825
Price: 1791.39 USD
Availability: InStock



Category Power Quality Analysers Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Display Type	LCD
Display	screen
Brand	RS PRO
Battery Life	50h
Battery type	AA
Height	235mm
Length	116mm
Model	IPM3600N
Gross Weight	730g
Width	54mm
Maximum Operating Temperature	50°C
MEASUREMENT TYPE	Current, Frequency
Minimum Operating Temperature	0°C
Current Accuracy	±0.5 % rdg ±15 Digits
Interfaces	USB optical interface with three phase voltage / current waveform display and harmonic analysis
Memory size	4GB
Number of Phases	3
Interface Type	USB
Standards/Approvals	RoHS
Maximum Frequency	60Hz
Minimum Frequency	50Hz
Maximum Voltage Measurement	999.9V
Maximum Current Measurement	999.9A
Maximum Power Measurement	999.9kW

Key Features

High accuracy measurements with ±0.5% reading accuracy for current.
Features a bright LCD screen with backlight for easy viewing in various environments.
Supports USB interface for data transfer and waveform analysis on PC.
Records and logs data with 4GB memory capacity and can store up to 20,000 sets.
Portable and lightweight design for field use with AA battery support and 50 hours battery life.
Measures power parameters including KW, KVAR, KVA, power factor, frequency, and energy consumption.
Includes phase sequence indicator and programmable trigger functions.
Operates reliably between 0°C and 50°C ambient temperatures.

Product Description

RS PRO IPM3600N is a high-performance 3-Phase Power Quality Analyser capable of measuring up to 999.9 A maximum current and 999.9 V maximum voltage. It provides accurate monitoring and diagnosis of power quality in industrial and electrical installations, helping to identify issues that may lead to equipment failure, increased energy consumption, or operational inefficiencies.

The device features a clear and easy-to-read LCD display with backlight, allowing users to view measurements easily in various lighting conditions. It connects to a PC via USB to upload data, view graphical waveform displays, and perform harmonic analysis. The software enables exporting recorded data in Excel format for further analysis.

With a memory size of 4GB, this analyser can log up to 20,000 data sets and store 99 manual data points. The programmable trigger function enables precise control over data recording start and stop times. Phase sequence indication is provided for installation verification.

Powered by AA batteries, the unit offers portability and approximately 50 hours of operation. It is designed to operate reliably in ambient temperatures ranging from 0°C to 50°C. The analyser complies with RoHS standards and is manufactured in Taiwan, Province Of China.

Key applications include troubleshooting electrical installations, monitoring power circuits, analysing harmonics, and managing energy costs in industrial, commercial, and manufacturing settings. It is ideal for use by electrical engineers, maintenance personnel, and energy managers.

High accuracy current and voltage measurements for power quality analysis. Data logging and storage with large capacity memory. USB interface and software for detailed data analysis and reporting. Portable design with long battery life for field use.

Supports power parameters such as KW, KVAR, KVA, PF, frequency, and energy measurements. Explore the RS PRO range to find advanced measuring instruments and Power Quality Analysers tailored for industrial and laboratory environments on EnvMart.
