Chauvin Arnoux Power Quality Analyser 3-Phase 1000 V ac 1200 V dc CA8345

Free Delivery in India | Lowest Global Shipping Charges

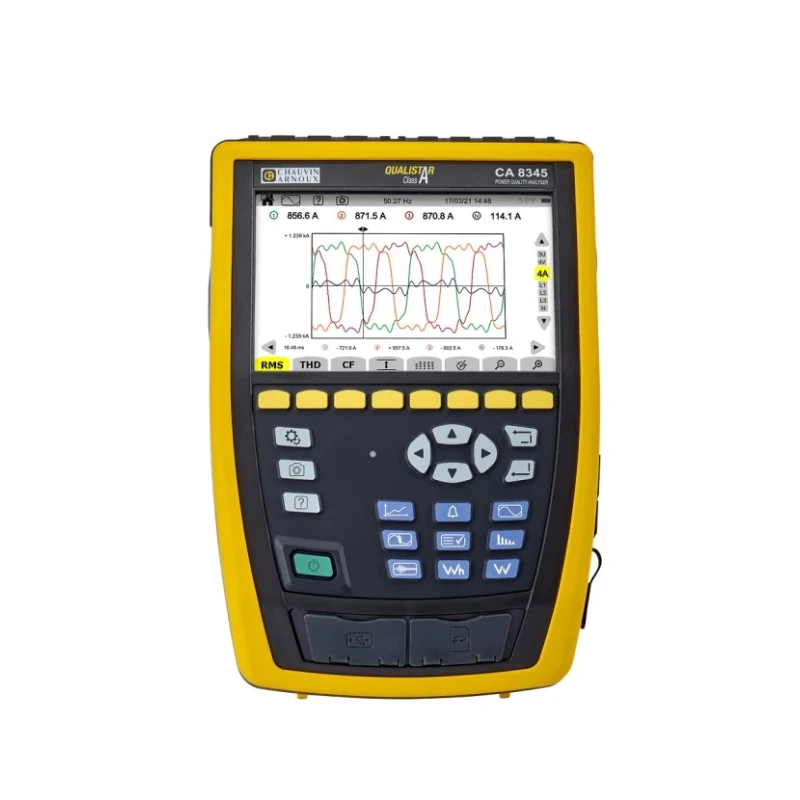

Chauvin Arnoux Power Quality Analyser 3-Phase 1000 V ac 1200 V dc CA8345

Name: Chauvin Arnoux Power Quality Analyser 3-Phase 1000 V ac 1200 V dc CA8345
Brand: Chauvin Arnoux
SKU: 176922
Price: 10154.46 USD
Availability: InStock



Category Power Quality Analysers Brand Chauvin Arnoux Condition New

Specifications

Country of Origin	France
Display Type	Colour LCD Touch Screen
Display	touch screen
Brand	Chauvin Arnoux
Battery Life	10h
Battery type	Lithium-ion
Height	55mm
Length	285mm
Model	CA8345
Gross Weight	1.9kg
Width	200mm
Maximum Operating Temperature	45°C
MEASUREMENT TYPE	Current
Minimum Operating Temperature	-5°C
Current Accuracy	0.5 %
Memory size	64
Number of Phases	3
Interface Type	WiFi, USB, RJ45
Standards/Approvals	CE, IEC/EN 610102032, EU, BS EN 610102032, EMC
Maximum Frequency	69Hz
Minimum Frequency	42.5Hz
Maximum Voltage Measurement	1000, 1200V ac
Maximum Power Measurement	10mW
Measurement Standards	IEC 61000-4-30

Key Features

Accurately measures 3-phase power networks with 0.5% current accuracy.
Features a 7-inch colour LCD touch screen for clear real-time waveform display.
Supports maximum voltage measurement of 1000 V ac and 1200 V dc.
Equipped with WiFi, USB, and RJ45 interfaces for versatile connectivity.
Battery-powered with lithium-ion battery offering up to 10 hours of operation.
Operates in temperatures ranging from -5°C to 45°C.
Complies with IEC 61000-4-30 edition 3.0 Class A measurement standards.
Portable and user-friendly with multilingual GUI and real-time electrical network monitoring with alarms.

Product Description

Chauvin Arnoux CA8345 Power Quality Analyser is a highly precise Class A analyser engineered for inspection and maintenance teams in industrial and tertiary environments. It provides a comprehensive snapshot of electrical network quality for 3-phase systems, including connections like the Aron configuration.

This analyser features a wide 7-inch colour LCD touch screen that displays real-time waveforms and electrical parameters, facilitating in-depth power quality analysis and monitoring. It supports measurements of AC voltage up to 1000 V and DC voltage up to 1200 V, with current accuracy rated at 0.5% and voltage accuracy at 0.1%. The device meets IEC 61000-4-30 edition 3.0 Class A standards for all its functions, ensuring reliability in diverse applications.

Connectivity options include WiFi, USB, and RJ45 interfaces, enabling easy data transfer and networking capabilities. The unit is powered by a rechargeable lithium-ion battery providing up to 10 hours of operation, or can be powered from mains supply, ensuring flexibility for on-site and laboratory use.

Portable and compact, the CA8345 measures 285mm in length, 200mm in width, and 55mm in height, weighing 1.9 kg. Its robust design suits demanding industrial, electrical maintenance, construction, manufacturing, and power quality assessment tasks. The device incorporates a multilingual, user-friendly graphical interface with settings for alarm notifications to promptly indicate network abnormalities.

High accuracy current and voltage measurement for precise power quality analysis. Real-time graphical display via large colour touch screen. Supports three-phase and complex network configurations. Industrial-grade compliance with international IEC standards.

Long-lasting lithium-ion battery for portable operation. Multiple interface connectivity for data communication. Compact and ergonomic design for ease of use on-site. Versatile application in power monitoring, maintenance, and troubleshooting.

Environmental operational range suitable for harsh industrial conditions. CE certified and compliant with EMC regulations.

Chauvin Arnoux Power Quality Analysers like the CA8345 deliver unmatched precision and user convenience. Explore more professional measuring instruments and power analysers at EnvMart for your industrial and commercial electrical testing needs.
