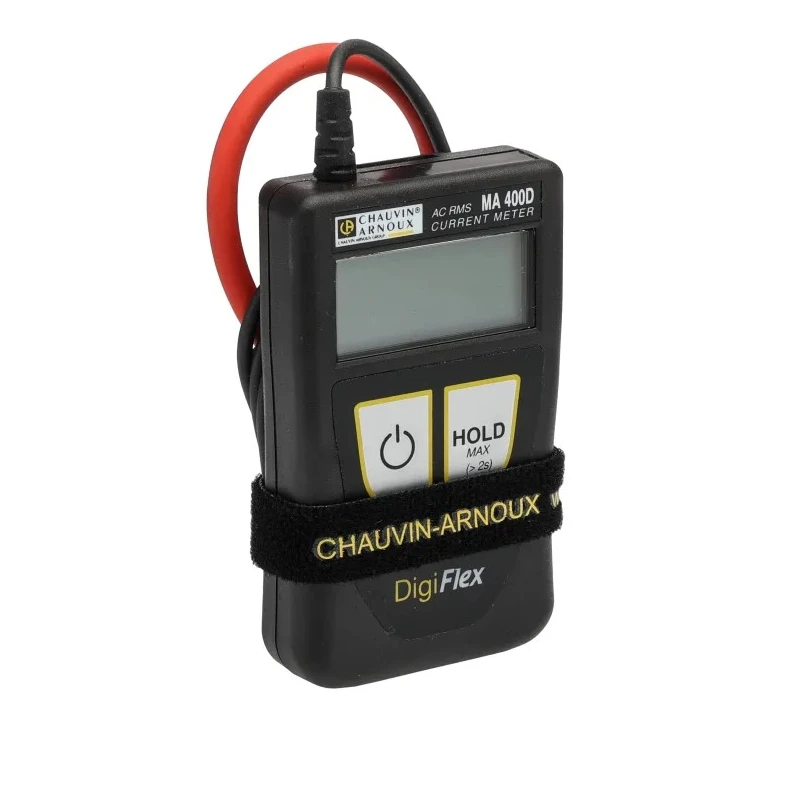

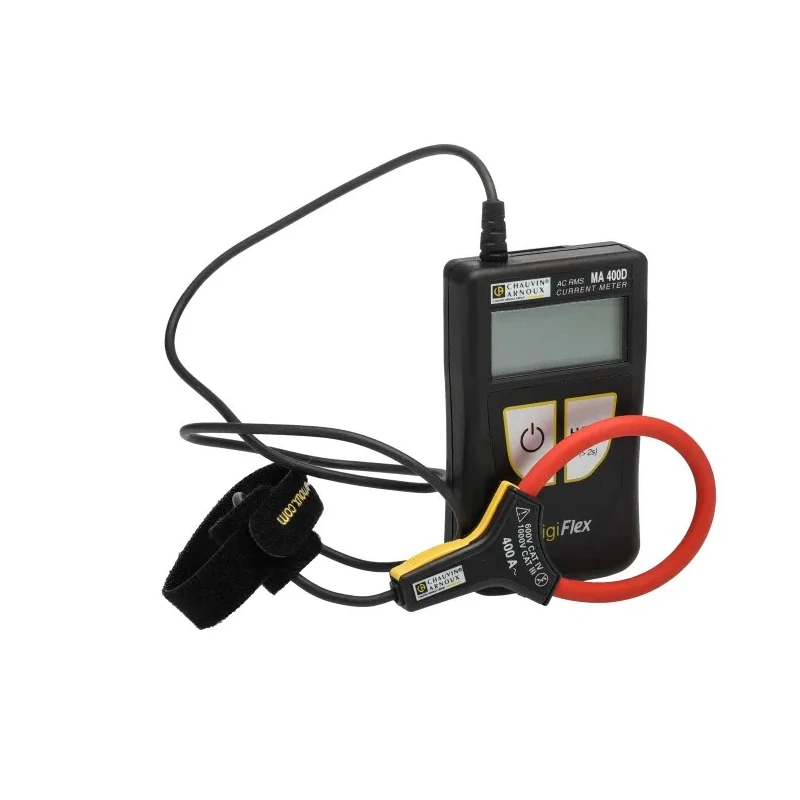

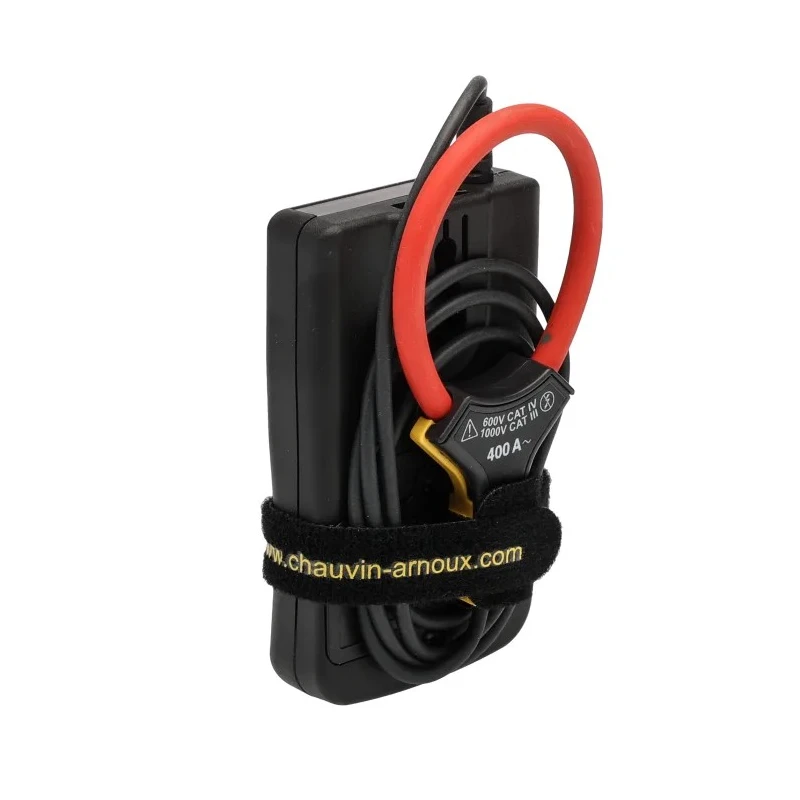

Chauvin Arnoux AC Flexible Clamp Meter 399.9 A AC 600 V CAT IV MA400D-170

Free Delivery in India | Lowest Global Shipping Charges

Chauvin Arnoux AC Flexible Clamp Meter 399.9 A AC 600 V CAT IV MA400D-170

Name: Chauvin Arnoux AC Flexible Clamp Meter 399.9 A AC 600 V CAT IV MA400D-170
Brand: Chauvin Arnoux
SKU: 131182
Price: 317.9 USD
Availability: InStock



Category Clamp Meter Brand Chauvin Arnoux Condition New

Specifications

Country of Origin	France
Display Type	LCD
Brand	Chauvin Arnoux
Battery Life	70h
Battery type	AAA
Height	20mm
Length	100mm
Model	MA400D-170
Gross Weight	130g
Width	60mm
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
AC Current Accuracy	±2% +10 counts
AC Current Resolution	1mA
Maximum Jaw Opening	45mm
Standards/Approvals	IEC 61010
Functions Measured	AC Current
Maximum AC Current Measurement	399.9A ac
Maximum AC Voltage Measurement	600V ac
Safety Category Level	CAT IV
Safety Category Voltage	600V
Maximum AC Voltage	600 V
Maximum AC Current	399.9 A
Maximum Conductor Size	45mm
Clamp Meter Type	AC Flexible Clamp Meter

Key Features

Measures AC current up to 399.9 A with ±2% +10 counts accuracy.
Maximum AC voltage measurement of 600 V AC with True RMS capability.

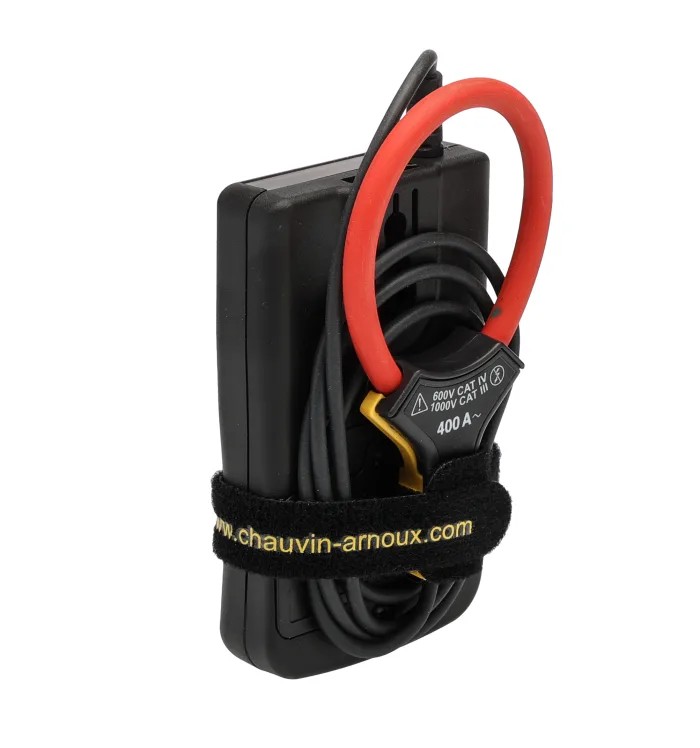

Flexible clamp design with 45mm maximum jaw opening for easy conductor access.
Compact and lightweight with dimensions 100mm x 60mm x 20mm and weight 130 grams.
Equipped with an LCD display and powered by AAA batteries providing up to 70 hours of operation.
Operates safely in CAT IV 600 V rated environments.
Designed for residential and industrial electrical system testing.
Complies with IEC 61010 standards ensuring robust safety and reliability.

Product Description

Chauvin Arnoux MA400D-170 AC Flexible Clamp Meter is designed for accurate True RMS measurements of AC current up to 399.9 A and AC voltage up to 600 V, making it ideal for use in residential as well as industrial electrical testing environments. Its flexible clamp allows effortless positioning around electrical conductors up to 45mm in diameter, providing versatility where access is limited.

The instrument features a high-contrast LCD display with a 4000 count resolution and a compact form factor measuring only 100mm in length, 60mm in width, and 20mm in height, weighing just 130 grams for easy portability. Powered by standard AAA batteries, it offers up to 70 hours of continuous use.

Safety is paramount with the MA400D-170 clamp meter, certified to IEC 61010 CAT IV 600 V standards, making it suitable for measurement tasks in high-energy distribution systems with enhanced protection.

This clamp meter accurately measures AC current with an accuracy of ±2% +10 counts and offers a current resolution of 1 mA, ensuring precise readings for electrical diagnostic and maintenance tasks. The flexible sensor technology simplifies challenging measurement situations and increases operational efficiency.

Measurements of up to 399.9 A AC current, 600 V AC voltage with True RMS accuracy. Compact, lightweight design with flexible 45mm jaw opening. Complies with IEC 61010 CAT IV 600 V safety standards. Long battery life and easy-to-read LCD display.

Commonly used across industrial, residential, laboratory, manufacturing, HVAC, and electrical maintenance sectors, the Chauvin Arnoux MA400D-170 offers reliable performance for professionals requiring precise current and voltage analysis. EnvMart customers can find this Clamp Meter an essential instrument for electrical testing and troubleshooting applications.
