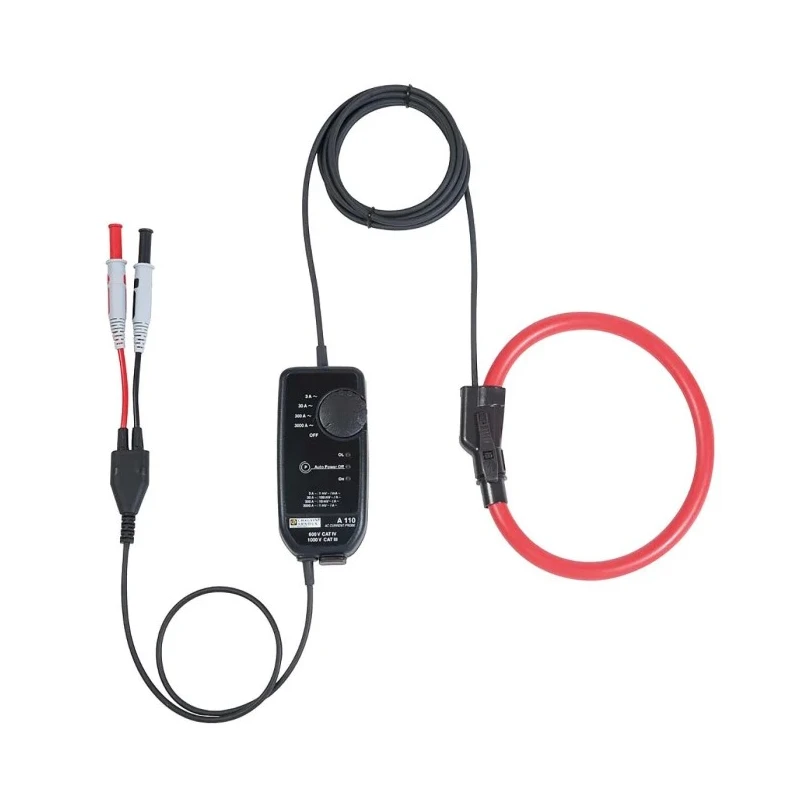

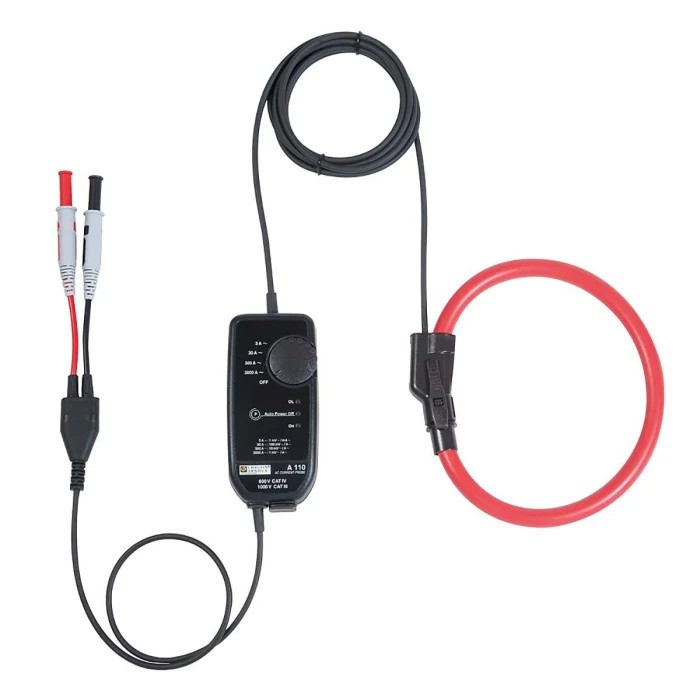

Chauvin Arnoux AmpFlex A110-045 Flexible Current Probe 3 kA AC Max Voltage Output P01120630

Chauvin Arnoux P01120630 AmpFlex A110-045 flexible current probe is designed for precise AC current measurement up to 3 kA maximum with voltage output suitable for integration with multimeters, wattmeters, and data loggers. This model belongs to the AmpFlex A110 Series known for compact, lightweight, and ergonomically flexible sensors that clamp conductors of various shapes and sizes with a diameter of up to 140 mm.

Its flexible coil architecture makes it ideal for use in confined or complex industrial and tertiary sector installations. The sensor's flexibility allows measurements on multiple conductor types including bars and wires, ensuring adaptability to diverse electrical setups.

The probe supports a broad measurement range from 80 mA up to 30 kA across four calibration ranges, delivering consistent accuracy of 1%. Its 2-meter cable terminated with 4 mm male banana plugs facilitates standard connectivity.

The unit is battery powered by two AA LR6 alkaline cells offering up to 300 hours of continuous use. It features an ingress protection rating of IP67 for the sensor and IP54 for the processing unit, safeguarding it against harsh environmental ingress such as dust and water splash.

This current sensor operates in temperatures from -10°C to 55°C, making it robust for varied operational climates. It complies with the CAT IV safety category at 1 kV, ensuring safe use at high voltage levels with a low phase shift output ideal for wattmetric measurements and harmonic analysis without saturation or overheating.

Additional benefits include rapid clamp operation that is manageable with safety gloves, enhancing operational convenience and safety. The product package includes the flexible current sensor, batteries, user manual in five languages, safety datasheet, and verification certificate.

This product is widely used in industrial monitoring, electrical testing, energy auditing, and maintenance to accurately assess current flow while ensuring user safety and operational reliability.

The flexible coil design enables clamping around conductors up to 140 mm diameter. High measurement range combined with stable voltage output supports versatile testing requirements. Robust ingress protection ratings safeguard against environmental hazards.

Battery operated for portable, on-site measurement capability. Meets CAT IV 1 kV safety standards for industrial electrical environments. Explore the complete range of measuring instruments and accessories under the Current Probes category on EnvMart for industrial and laboratory applications.
