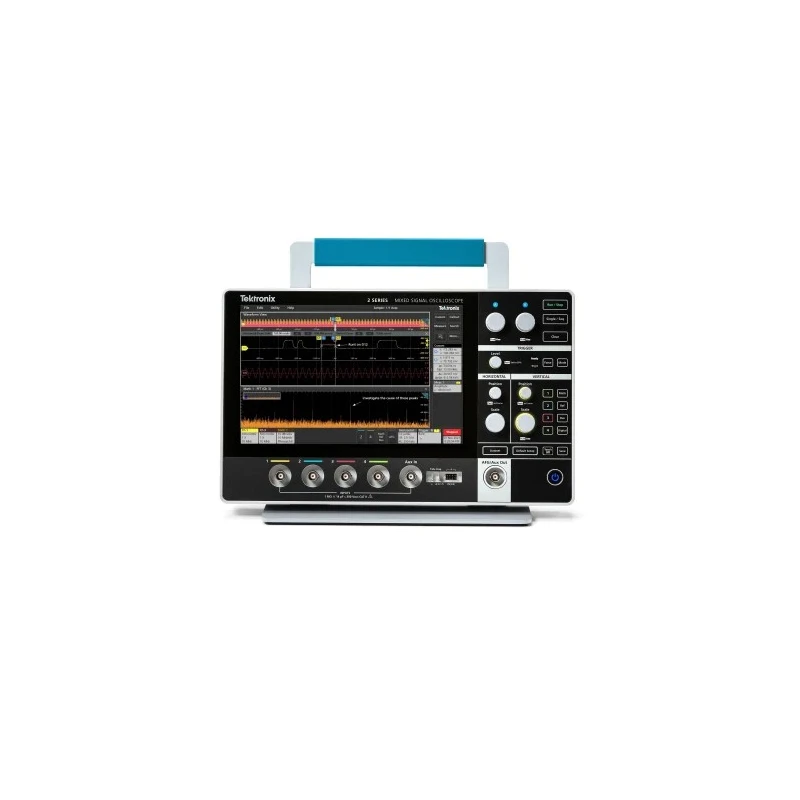

Tektronix 2 Series MSO 70 MHz Ultra Compact Mixed Signal Oscilloscope 4 Channels MSO24 2-BW-70

Free Delivery in India | Lowest Global Shipping Charges

Tektronix 2 Series MSO 70 MHz Ultra Compact Mixed Signal Oscilloscope 4 Channels MSO24 2-BW-70

Name: Tektronix 2 Series MSO 70 MHz Ultra Compact Mixed Signal Oscilloscope 4 Channels MSO24 2-BW-70
Brand: TEKTRONIX
SKU: 177591



Category Oscilloscope Brand TEKTRONIX Condition New

Specifications

Country of Origin	China
Display Type	Capacitive Touch Display
Brand	Tektronix
Battery Life	8h
Battery type	Lithium-ion
Height	210mm
Model	MSO24 2-BW-70
Depth	40.4mm
Width	344mm
Bandwidth	70MHz
Series	2 Series MSO
Screen Size	10.1 in
Number Of Channels	4
Vertical Resolution	1 (Digital) bit, 8 (Analogue) bit
Interface Type	CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB
Oscilloscope Type	Ultra Compact
Digital Channels	16
Standards/Approvals	CE, RoHS, UL
Safety Category Level	CAT II
Calibrated	RSCAL
Oscilloscope Form	Mixed Signal
Lightweight and Portable	Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs)
Award Winning Touchscreen UI	Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function
Compact	Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm
Battery Powered	Optional battery pack supports two hot-swappable batteries for hours of unplugged testing
Bench Space Saver	VESA mount compatible with many off-the shelf VESA accessories
Built-in VNC Server	View and control your oscilloscope from PC, Tablet or Phone
Optional Extras Includes	Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below)

Key Features

Compact and lightweight design suitable for bench and field work.
Features a 10.1-inch capacitive touchscreen for intuitive operation.
Supports up to 4 analog channels with 70 MHz bandwidth.
Optional battery pack enables up to 8 hours battery life for portable use.
Includes multiple digital interfaces such as CAN, LIN, SPI, UART, and USB.
Bench space saver with VESA mount compatibility for flexible installation.
Includes calibration with traceability to national standards and quality system registration.
Supplied with TPP0200 200 MHz, 10x probes and instrument stand.

Product Description

Tektronix MSO24 2-BW-70 2 Series MSO 70 MHz Ultra Compact Mixed Signal Oscilloscope with 4 Channels delivers professional-grade electronic test and measurement in a portable, compact format. Its slim profile of approximately 1.5 inches thickness makes it ideal for diverse environments including industrial, laboratory, construction, and field applications.

This oscilloscope features up to 4 analog channels with a 70 MHz bandwidth and a sampling rate of 2.5 GS/s. It is equipped with a 10.1-inch capacitive touchscreen and an award-winning user interface designed for simplified operation and enhanced productivity.

The instrument supports extensive digital interfaces such as CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB protocols, making it suitable for automotive, embedded systems, and general electronics debugging.

The optional lithium-ion battery pack supports hot-swappable batteries providing up to 8 hours of continuous operation, which facilitates portable testing without the need for constant external power supply.

Its compact size (Height 210 mm, Width 344 mm, Depth 40.4 mm) and lightweight build (1.8 kg instrument only) allow easy transport and bench space optimization. The oscilloscope is compatible with VESA mounts enabling integration with various off-the-shelf mounting accessories.

Included in the shipment are high-quality TPP0200 200 MHz, 10x probes, an instrument stand, external power supply, embedded help documentation, installation and safety manuals in multiple languages, and a calibration certificate demonstrating traceability to national metrology institutes under ISO9001/ISO17025 standards. The product carries a one-year comprehensive warranty covering parts and labor for both the oscilloscope and included probes.

Compact and portable design with slim form factor. High-resolution capacitive touchscreen for ease of use. Four analog channels supporting mixed signal measurements. Wide range of protocol interfaces for versatile testing.

Optional battery pack with hot-swappable lithium-ion batteries. VESA mount compatibility for flexible installation. Includes calibration certification and one-year warranty. Suitable for industrial, laboratory, automotive, and field applications.

Explore the Tektronix range of advanced Oscilloscopes and accessories on EnvMart for optimized electronic measurement solutions.
