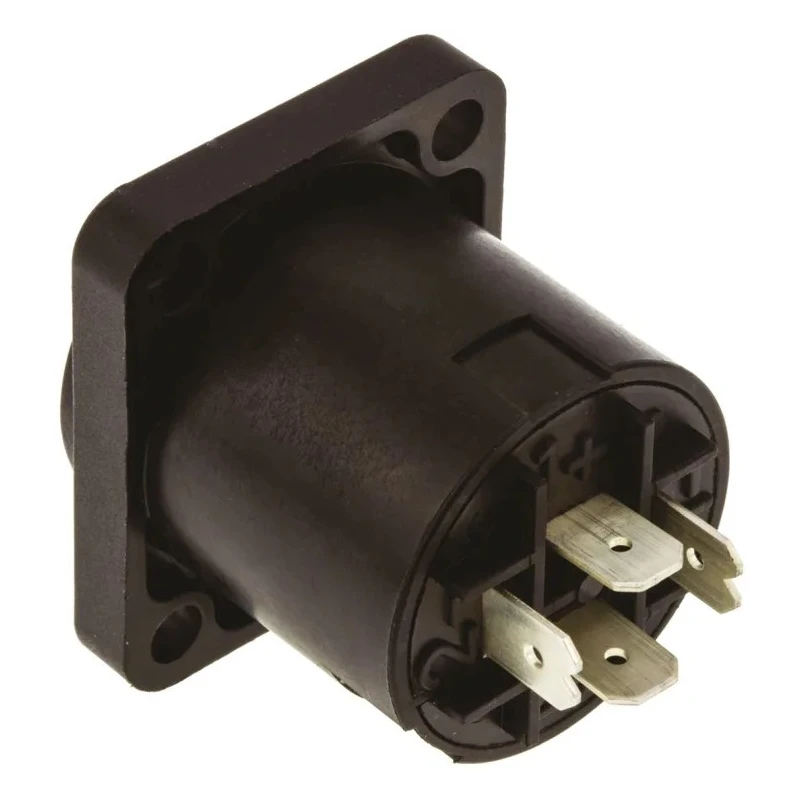

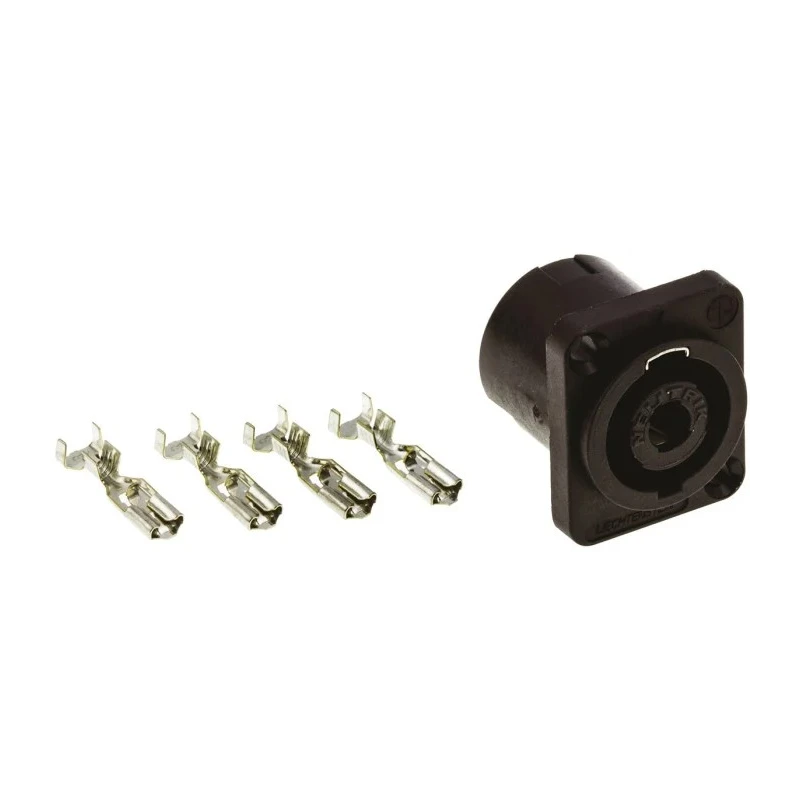

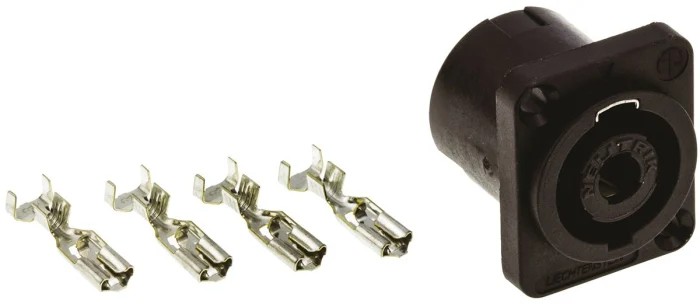

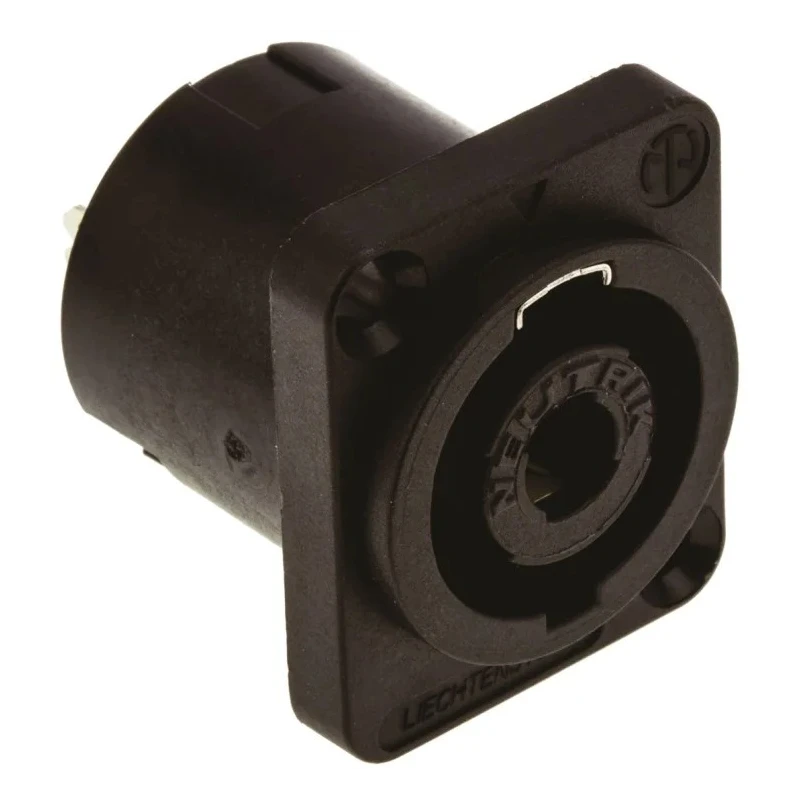

Neutrik Loudspeaker Connector 4 Way Male Panel Mount 40A 250V Solder Termination NL4MPXX

Free Delivery in India | Lowest Global Shipping Charges

Neutrik Loudspeaker Connector 4 Way Male Panel Mount 40A 250V Solder Termination NL4MPXX

Name: Neutrik Loudspeaker Connector 4 Way Male Panel Mount 40A 250V Solder Termination NL4MPXX
Brand: Neutrik
SKU: 138739
Price: 5.04 USD
Availability: InStock



Category Speaker Connector Brand Neutrik Condition New

Specifications

Country of Origin	Liechtenstein
Voltage	250V
Brand	Neutrik
Orientation	Straight
Current	40A
Model	NL4MPXX
Mount Type	Panel
Housing Material	Nylon
Contact Material	Bronze
Series	SpeakON
Termination Type	Solder
Maximum Operating Temperature	80°C
Standard Version	Up to 30 A rms
Minimum Operating Temperature	-30°C
Contact Plating	Silver
Number of Contacts	4
Contact Gender	Male
Connector Gender	Male
Ultra high current version	Up to 50 A audio current
Neutrik RSNL8MPRXX Straight Panel Loudspeaker Connector, 8 Way Male, 40ABrand	Neutrik

Key Features

Optimized for high-quality loudspeaker connections with patented speakON twist-lock system.
Constructed with bronze contacts and silver plating for superior conductivity.
Durable nylon housing with airtight and touch-proof design for secure connections.
Suitable for panel mounting using standard D or G panel cut-outs.
Operates reliably from -30°C to 80°C in demanding audio environments.
Solder termination type ensures a strong and permanent electrical connection.
Meets IEC safety test standards with touch-proof contacts enhancing user safety.
Designed for professional audio, industrial, and commercial applications requiring robust speaker connectors.

Product Description

Neutrik NL4MPXX is a high-quality 4 way male loudspeaker connector designed for panel mounting. Rated for 40A current and 250V voltage, it features solder termination ensuring a secure and reliable electrical connection. This connector is part of Neutrik's SpeakON series, introduced in 1987 to deliver a user-friendly, dependable connection system optimized for loudspeaker applications.

The connector housing is made of durable nylon material providing robustness and insulation, while the contacts are made from bronze with silver plating to optimize conductivity and resist corrosion. The connector is designed with an airtight and touch-proof mechanism for enhanced safety and environmental resistance.

The NL4MPXX supports a wide operating temperature range from -30°C to 80°C, making it suitable for demanding professional audio and industrial environments. The twist-lock latching system ensures secure, precise mechanical mating with panel cut-outs designed for easy mounting via countersunk holes.

This connector is ideal for use in industrial sound systems, professional audio installations, theaters, auditoriums, and manufacturing setups requiring reliable and safe speaker connections. The standardized panel mount design and solder termination type offer durability and ease of installation.

Optimized SpeakON twist-lock system provides secure electrical and mechanical performance. Bronze contacts with silver plating improve signal integrity and corrosion resistance. Robust nylon housing offers durability and environmental protection.

Airtight and touch-proof design meets IEC safety standards. Wide operating temperature range suitable for various environments. Panel mount with standard cut-outs for straightforward installation. Solder termination guarantees lasting contact stability and reliability.

Designed for professional, industrial, and commercial loudspeaker applications. Package contains 1 Neutrik NL4MPXX straight panel loudspeaker 4-way male connector. Explore more Speaker Connector products and high-quality Neutrik audio solutions at EnvMart for your industrial and commercial needs.
