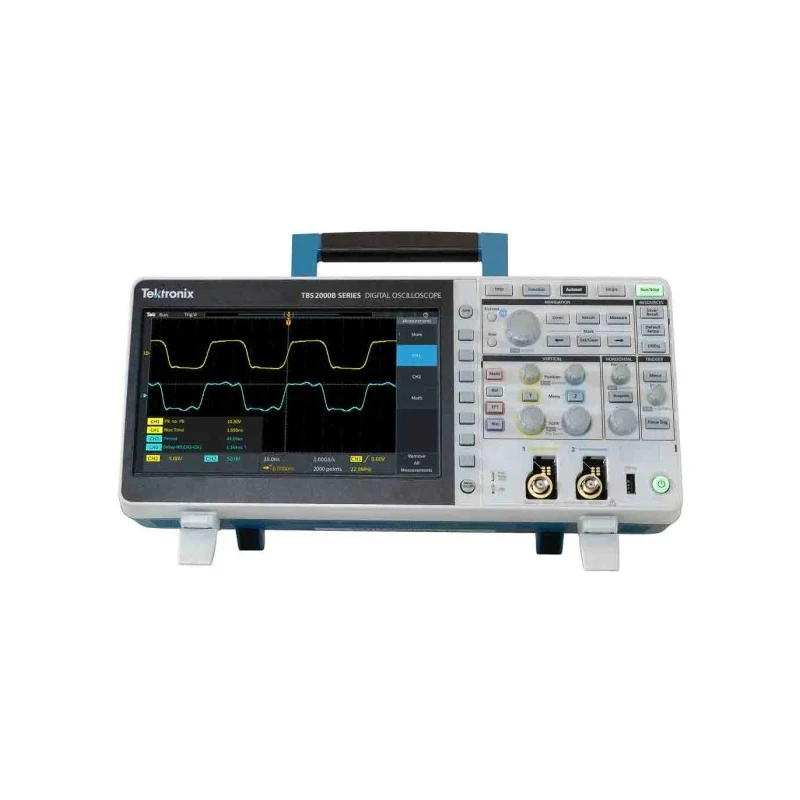

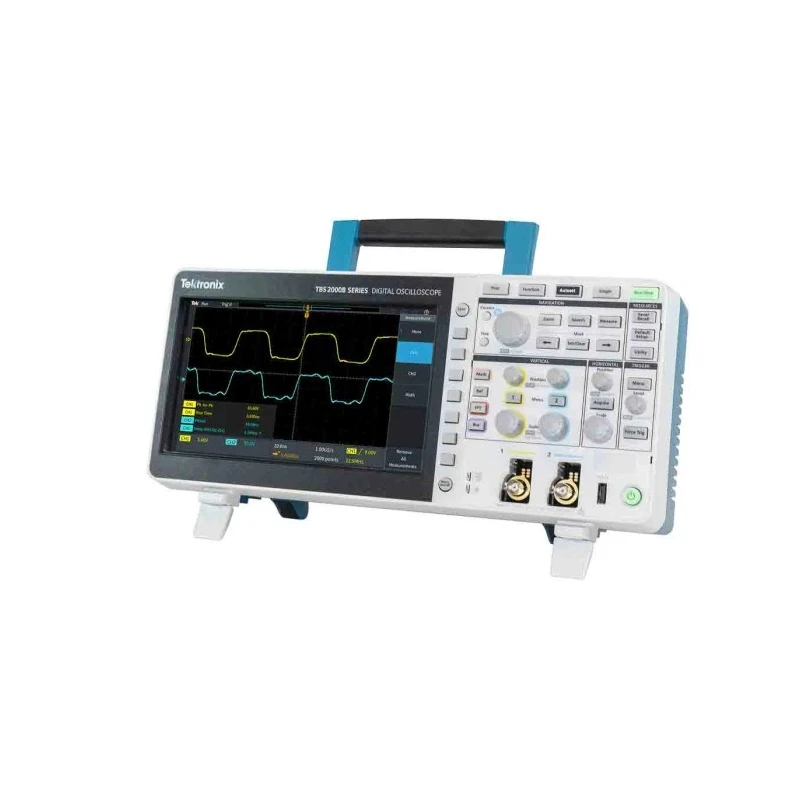

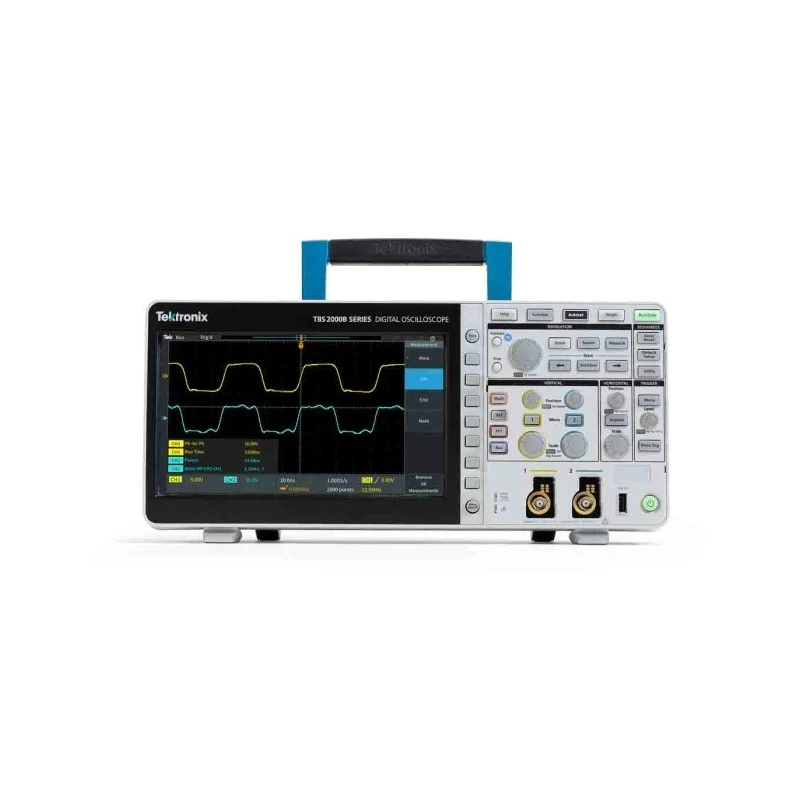

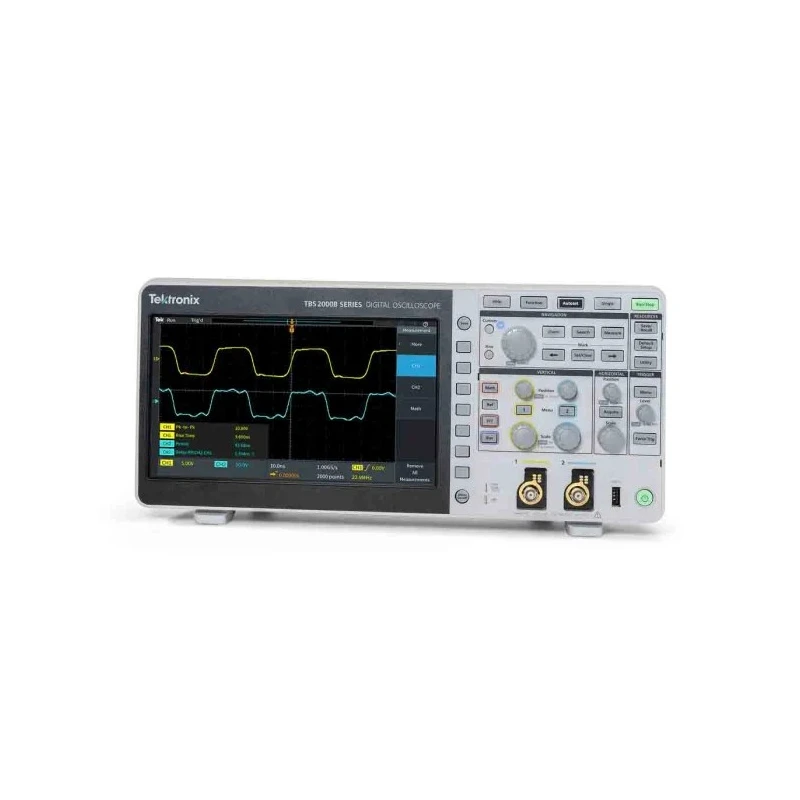

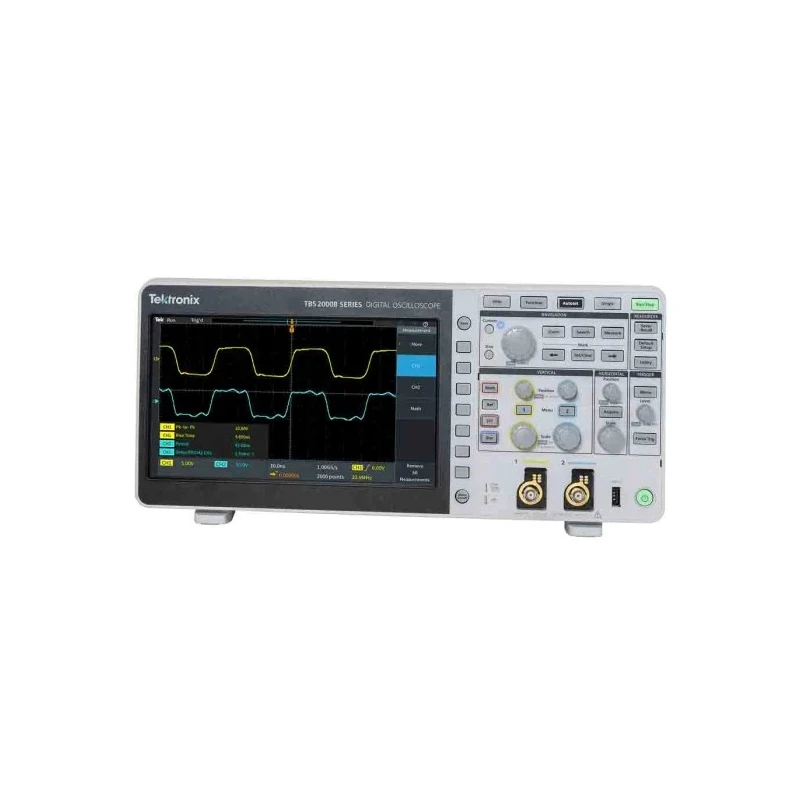

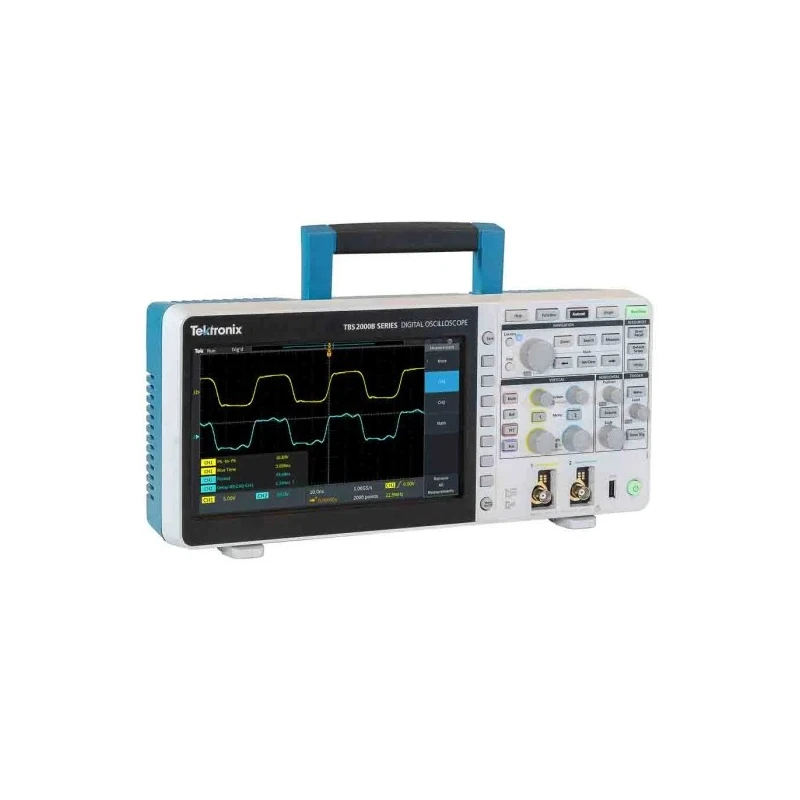

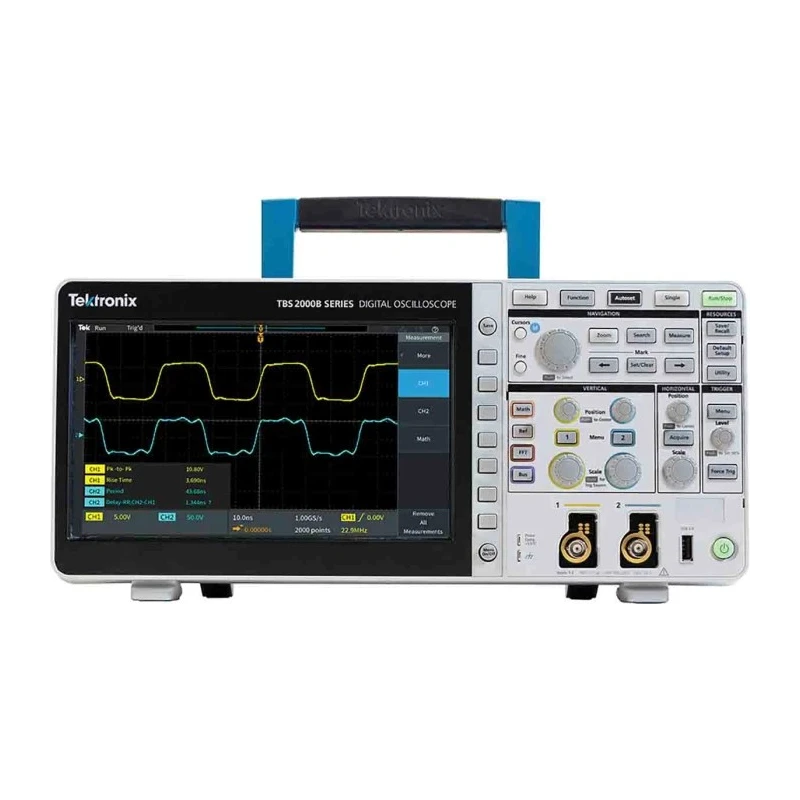

Tektronix Bench Digital Storage Oscilloscope, 70 MHz Bandwidth, 2 Channels, TBS2000B Series

Tektronix TBS2072B is a modern bench digital storage oscilloscope designed for accurate test and measurement in laboratory and industrial environments. As part of the TBS2000B series, it provides a 70 MHz bandwidth and 2 channels, making it suitable for examining analog and digital waveforms across a range of applications. Its advanced design offers reliable performance for engineers, researchers, educators, and embedded design professionals.

The oscilloscope stands out with its expansive 9-inch WVGA colour TFT LCD display, enabling clear signal visualization and easy access to menu information and measurement results. With 15 horizontal divisions on the screen, users can observe more signal detail and interact with functions like zoom and pan to inspect longer time windows and waveform characteristics.

Designed for flexibility and deep measurement capabilities, the TBS2072B supports a 5M record length, capturing lengthy signal events for thorough debugging and validation. The oscilloscope includes 32 automated measurements and a built-in FFT analysis function, allowing engineers to analyze signals efficiently and gain valuable insight into frequency components and transient features.

Performance is reliability-optimized, featuring a new low-noise front-end design that improves signal integrity and measurement accuracy. The vertical resolution is 8-bit, and vertical sensitivity ranges from 1mV/div to 10mV/div, with a minimum time base of 1ns/div and maximum time base of 100s/div, catering to various diagnostic requirements.

The TekVPI probe interface enhances measurement versatility, supporting traditional passive BNC probes as well as state-of-the-art active voltage, differential, and current probes. This allows the scope to be used for everything from basic circuit analysis to complex embedded system debugging.

Connectivity is extensive - a USB Wi-Fi dongle and multiple USB host ports offer wireless sharing and remote operation, while the 100-BaseT Ethernet port facilitates collaborative workflows in industrial, academic, and laboratory contexts. Educational aids like the HelpEverywhere on-screen tips and courseware support training in universities and teaching labs.

On-waveform cursor readouts with search and mark features simplify event identification within acquired waveforms, accelerating the measurement process. Field-upgradeable bandwidth and user interface translation into ten languages add further accessibility and flexibility to the TBS2000B series.

The TBS2072B's compact bench form factor, robust standards, and comprehensive feature set make it a cornerstone instrument for electrical engineering, R&D, manufacturing testing, and academic laboratories.
