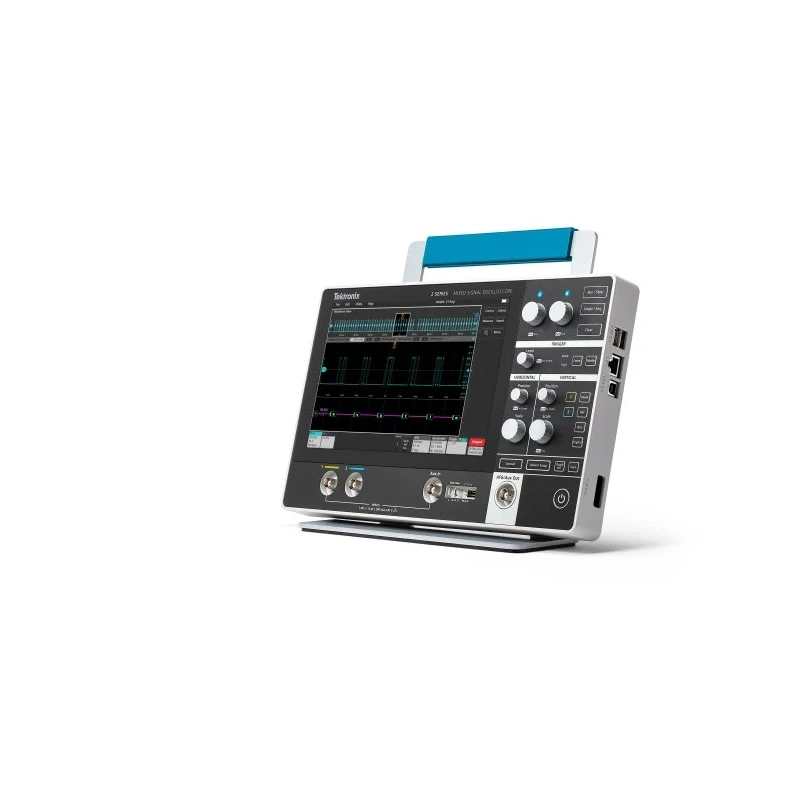

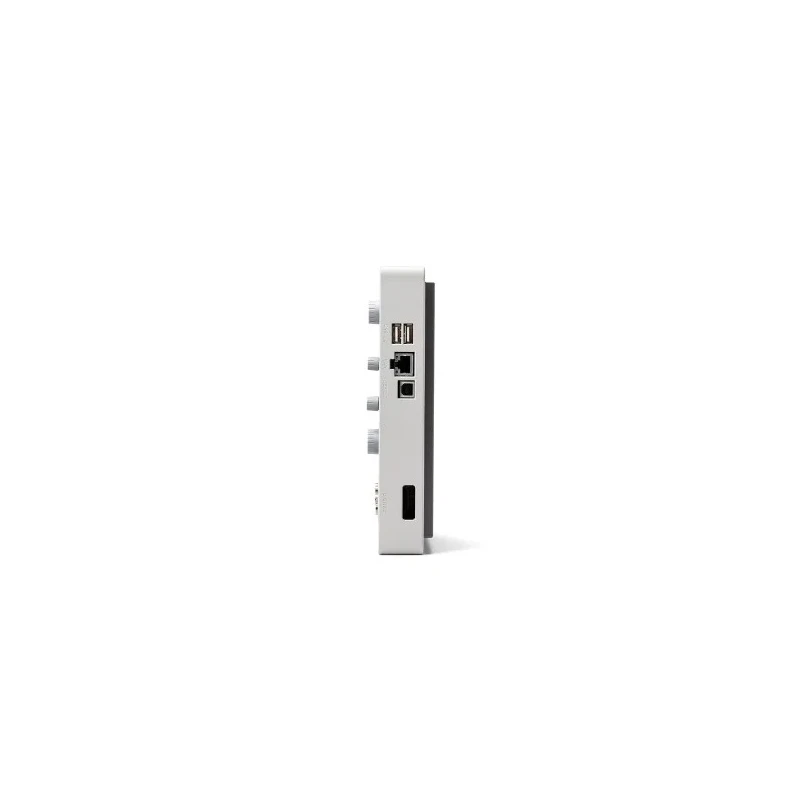

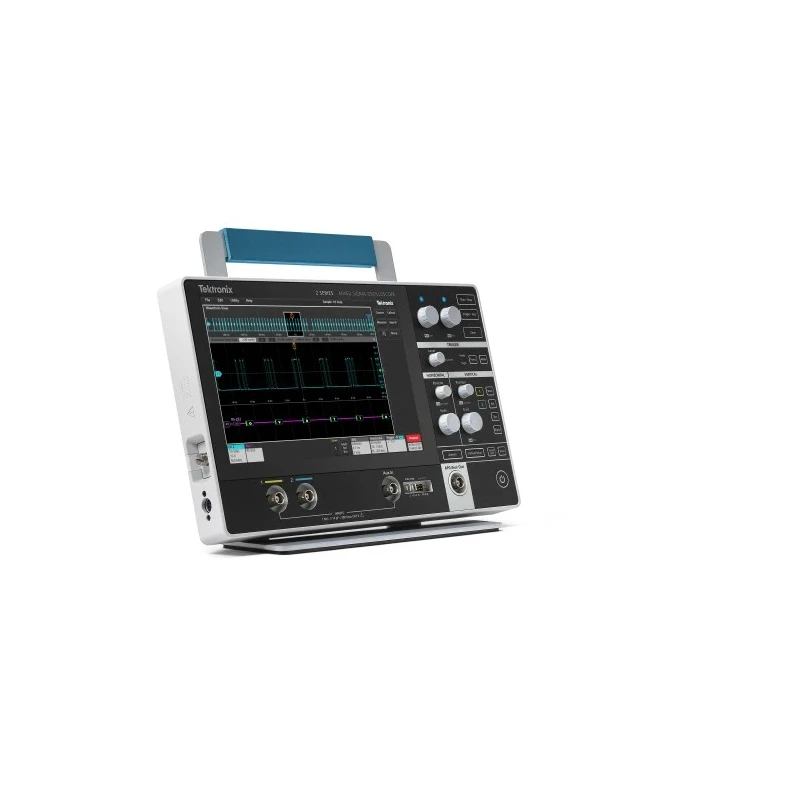

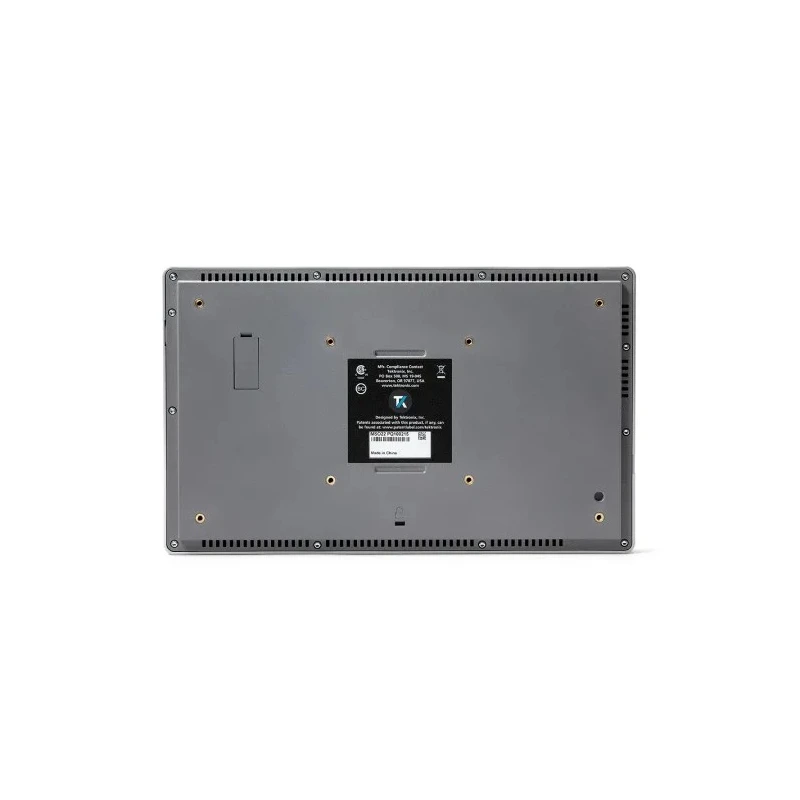

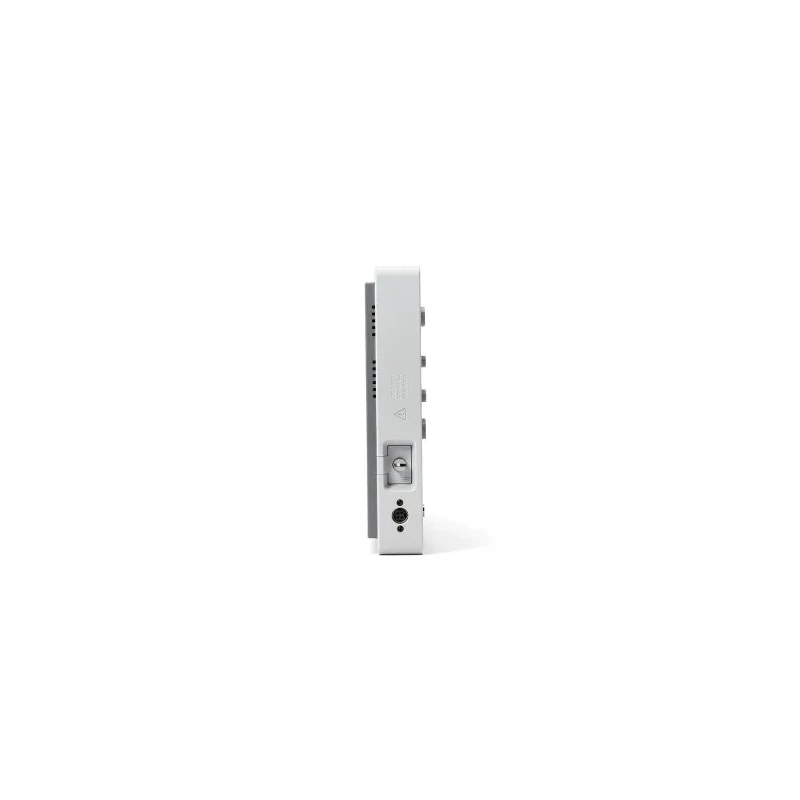

Tektronix 2 Series MSO Mixed Signal Oscilloscope, 70 MHz Bandwidth, 2 Channels, Ultra Compact Design MSO22 2-BW-70

Free Delivery in India | Lowest Global Shipping Charges

Tektronix 2 Series MSO Mixed Signal Oscilloscope, 70 MHz Bandwidth, 2 Channels, Ultra Compact Design MSO22 2-BW-70

Name: Tektronix 2 Series MSO Mixed Signal Oscilloscope, 70 MHz Bandwidth, 2 Channels, Ultra Compact Design MSO22 2-BW-70
Brand: TEKTRONIX
SKU: 92918



Category Oscilloscope Brand TEKTRONIX Condition New

Specifications

Country of Origin	China
Display Type	Capacitive Touch Display
Brand	Tektronix
Battery Life	8h
Battery type	Lithium-ion
Height	210mm
Model	MSO22 2-BW-70
Depth	40.4mm
Width	344mm
Bandwidth	70MHz
Series	2 Series MSO
Screen Size	10.1 in
Number Of Channels	2
Vertical Resolution	8 bit
Interface Type	CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB
Oscilloscope Type	Ultra Compact
Digital Channels	16
Standards/Approvals	RoHS, CE, UL
Safety Category Level	CAT II
Calibrated	RSCAL
Oscilloscope Form	Mixed Signal
Lightweight and Portable	Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs)
Award Winning Touchscreen UI	Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function
Compact	Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm

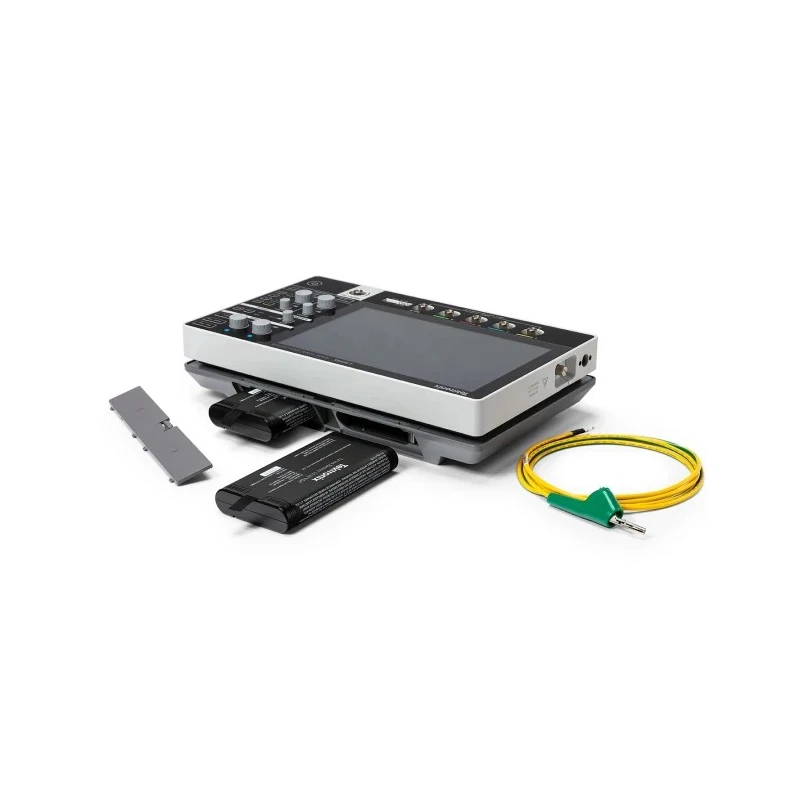

Battery Powered	Optional battery pack supports two hot-swappable batteries for hours of unplugged testing

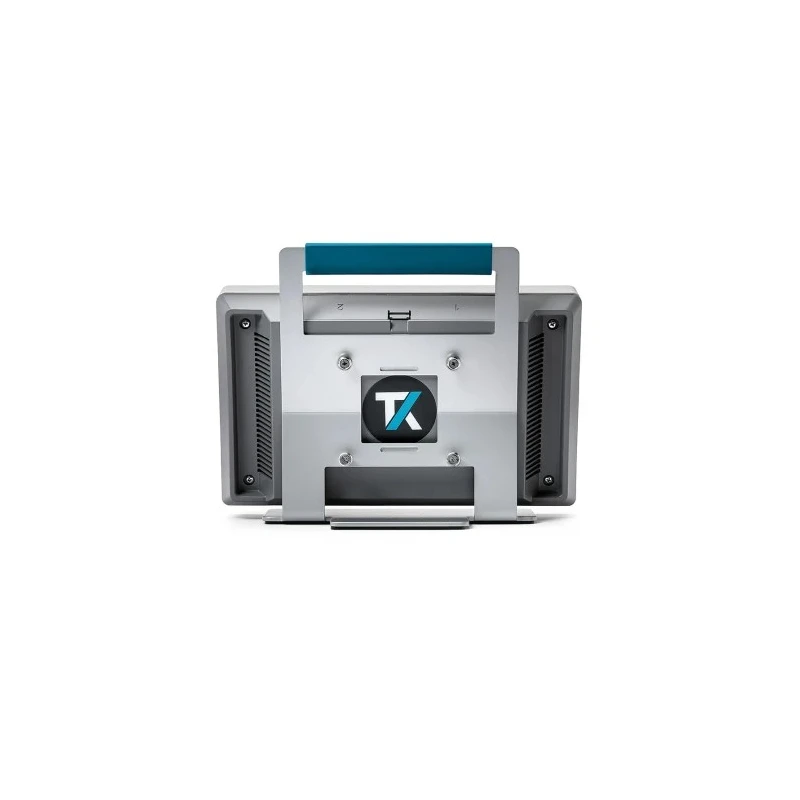

Bench Space Saver	VESA mount compatible with many off-the shelf VESA accessories
Built-in VNC Server	View and control your oscilloscope from PC, Tablet or Phone
Optional Extras Includes	Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below)

Key Features

Compact mixed signal oscilloscope with 70 MHz bandwidth and 2 analog channels.
Capacitive 10.1-inch touch display for intuitive operation and vivid visibility.
Includes a lithium-ion battery pack for portable, cordless use up to 8 hours.
Supports CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB interfaces for versatile device analysis.
Advanced triggers, protocol decode, and optional extras for extended functionality.
Lightweight, bench-saving design with VESA mount compatibility for flexible installation.
Comes with TPP0200 200 MHz 10x probe, instrument stand, external power supply, and documentation.
RSCAL calibration certificate ensures traceability and accuracy.

Product Description

Tektronix MSO22 2-BW-70 2 Series MSO Mixed Signal Oscilloscope offering 70 MHz bandwidth and 2 analog channels is designed for compactness and high portability. Featuring an advanced capacitive 10.1-inch touchscreen, the instrument offers intuitive usability for a broad spectrum of electrical signal measurements and analysis tasks. This mixed signal oscilloscope supports protocol analysis for CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB interfaces, making it suited for modern embedded systems and industrial applications.

The unit comes calibrated to RSCAL standards with complete certification and is powered by a lithium-ion battery pack, providing up to 8 hours of field operation. Weighing only 1.8 kg without batteries, it is lightweight and easy to move between benches or into the field. The included VESA mount increases installation flexibility, making it ideal for space-constrained labs or mobile test setups.

Enhanced features such as advanced triggers, protocol decode support, and optional digital channels, AFG, and pattern generators allow users to tailor the instrument to various engineering and troubleshooting needs. The provided TPP0200 probe (one per channel), instrument stand, external power supply, calibration certificate, and multilingual documentation ensure comprehensive out-of-the-box functionality.

Compact mixed signal oscilloscope with 70 MHz bandwidth and 2 channels for bench and field. 10.1-inch capacitive touchscreen user interface designed for touch usability and quick function access. Supports CAN, CAN FD, I2C, LAN, LIN, SPI, UART, USB protocols for embedded system debug.

Optional extras expand functionality: digital channels, AFG, pattern generator, protocol decode, DVM, frequency counter. Battery-powered operation up to 8 hours for mobile testing. Includes TPP0200 200 MHz 10x probe, stand, external power supply, calibration certificate, and documentation.

RSCAL calibration for traceable measurements and compliance with global standards. Suitable for industrial, laboratory, manufacturing, electronics development and research, and field service applications.

This oscilloscope is ideal for engineers, technicians, and researchers engaged in electronics debug, signal analysis, and automated test scenarios who require performance and portability without compromising measurement accuracy. Explore more oscilloscopes and advanced test equipment from Tektronix and the Oscilloscope category on EnvMart to find solutions tailored to your measurement requirements.
