Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 2 Channel 70 MHz Capacitive Touch Display MSO22 2-BW-70

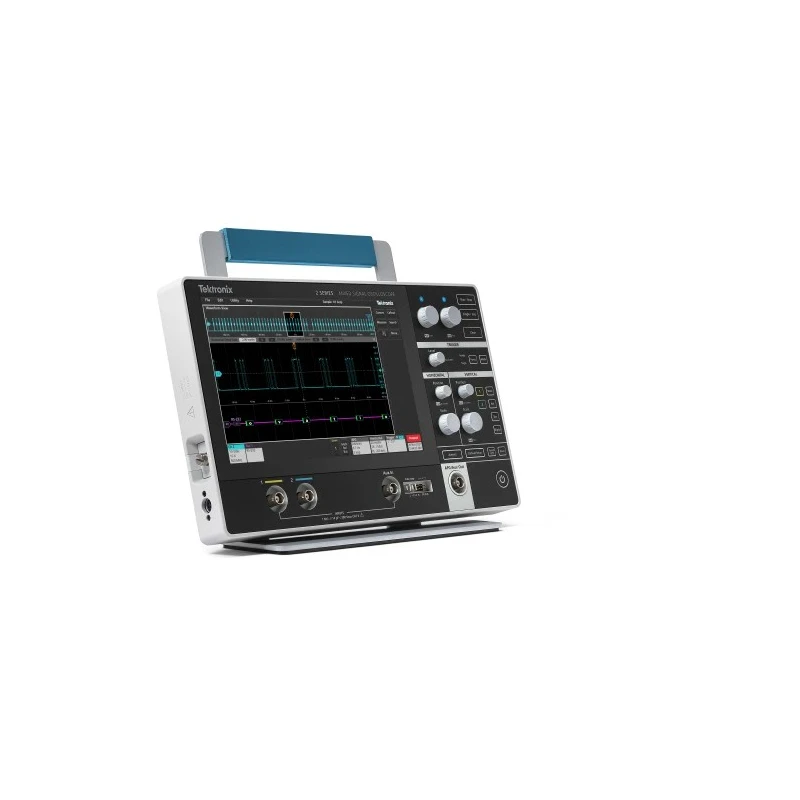

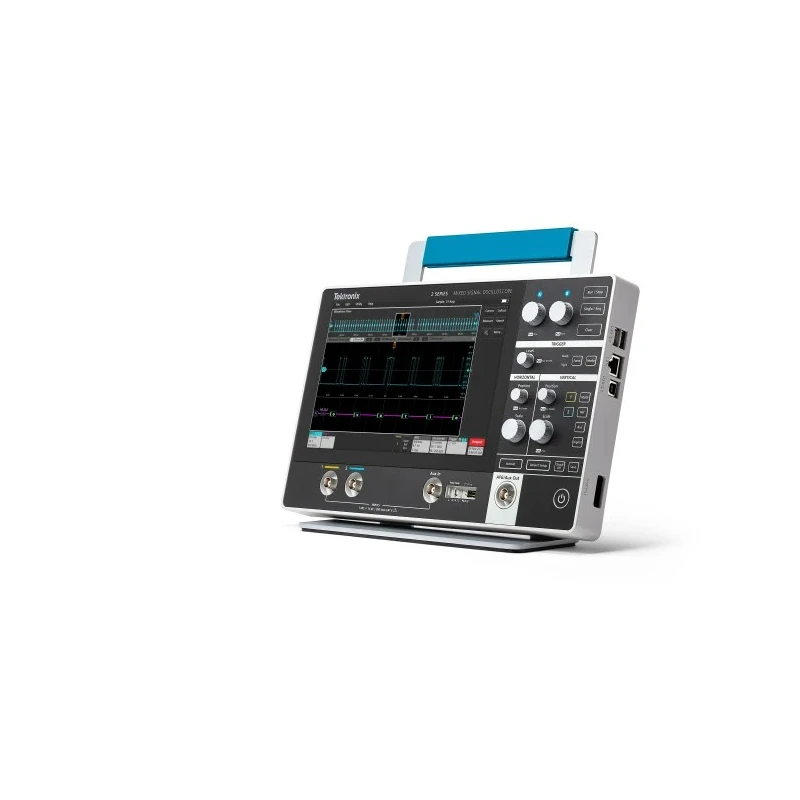

Tektronix MSO22 2-BW-70, part of the 2 Series MSO family, is an ultra-compact mixed signal oscilloscope with 2 channels and a 70 MHz bandwidth. It offers a capacitive 10.1-inch touchscreen that delivers an award-winning user interface designed for ease of use. The oscilloscope features a 2.5 GS/s sample rate, enabling precise and versatile electronic testing and debugging.

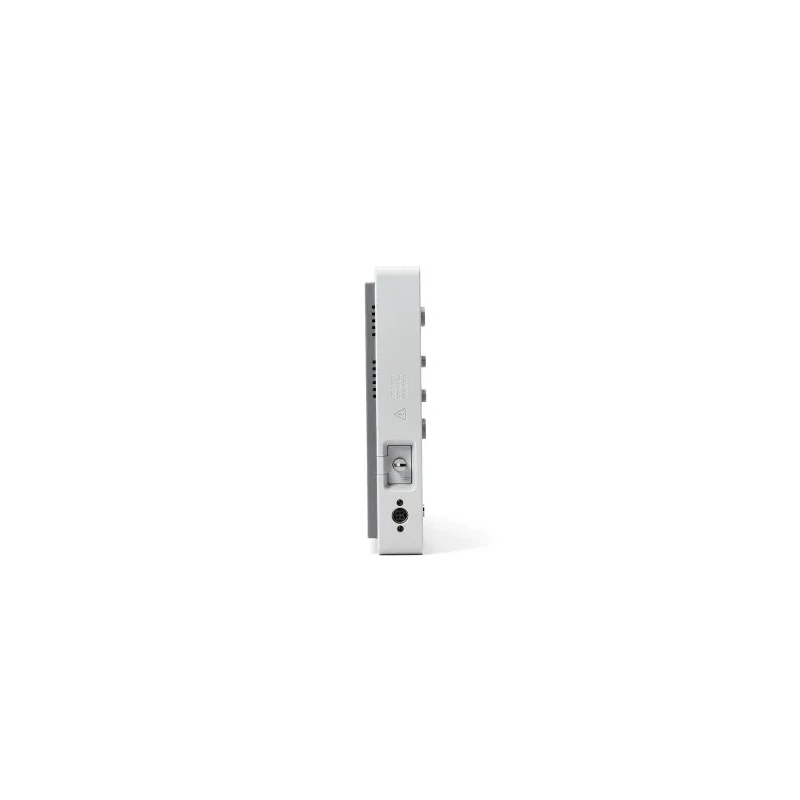

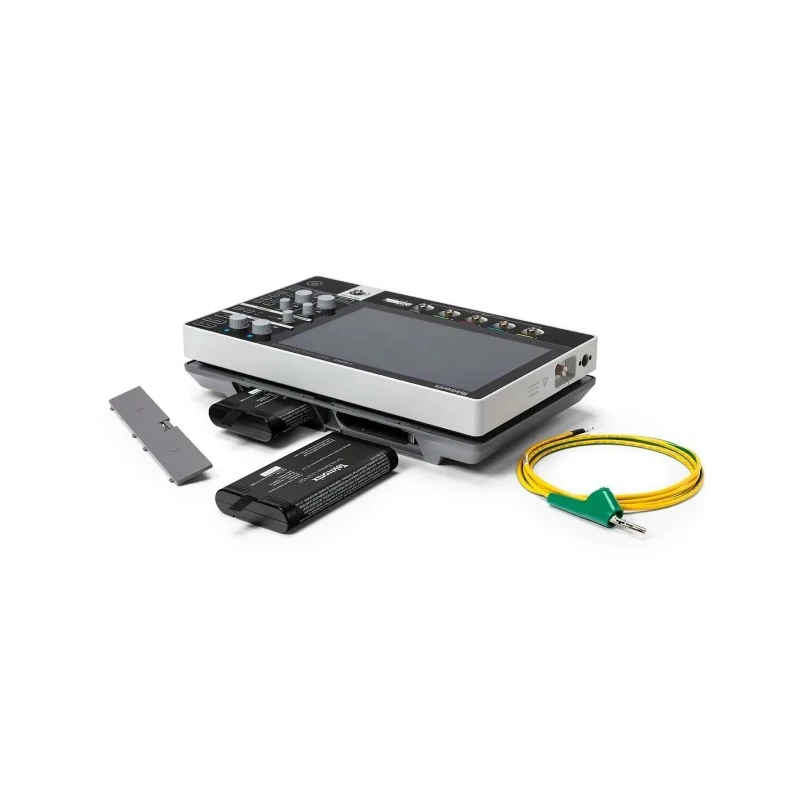

Its compact dimensions (210mm height, 344mm width, 40.4mm depth) and light weight of 1.8 kg (instrument only) make it highly portable. An optional lithium-ion battery pack prolongs testing capabilities for up to 8 hours, with hot-swappable battery options for extended field use.

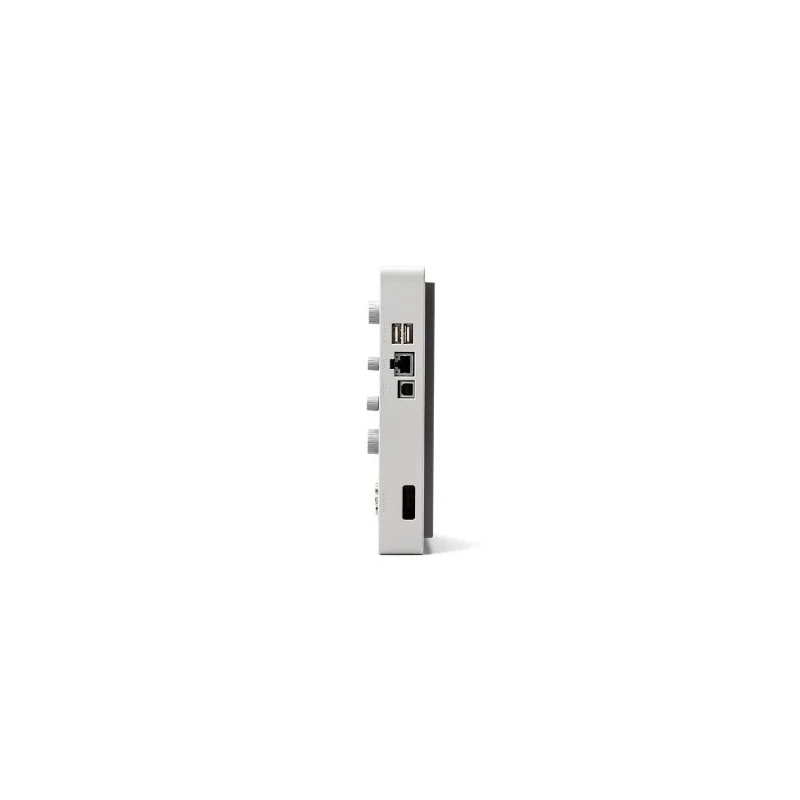

The MSO22 supports multiple interface types including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB protocols, addressing a wide variety of industrial and laboratory testing needs. The instrument is calibrated with UKAS traceability ensuring compliance with international quality standards.

Supplied with TPP0200 200 MHz 10x probes for each channel, an external power supply, instrument stand, embedded help system, installation and safety manuals, and a detailed calibration certificate compliant with ISO9001 and ISO17025 quality systems. The device includes advanced features like protocol decoding, digital pattern generation (optional), digital voltmeter, and frequency counter functionality to enhance electronic diagnostics.

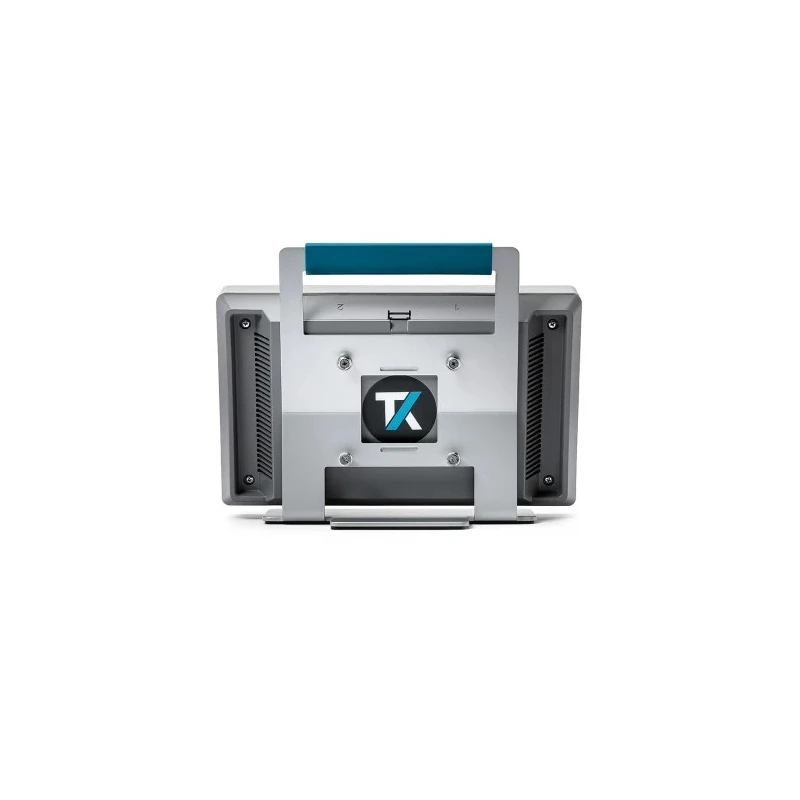

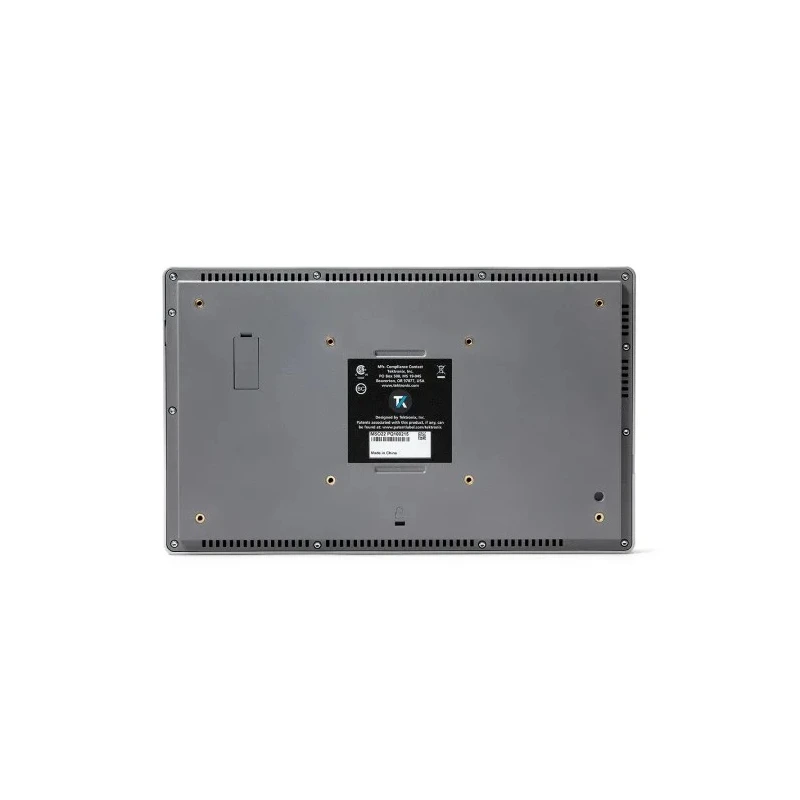

Its compact form factor is complemented by VESA mount compatibility, allowing users to optimize limited bench space effectively. The built-in VNC server enables remote viewing and control via PC, tablet, or smartphone, expanding usage flexibility.

Compact size with H 210mm, W 344mm, D 40.4 mm (78 mm with battery pack). Lightweight and portable, weighing 1.8 kg (instrument only) and up to 3.6 kg with batteries. Capacitive touchscreen with intuitive user interface. Battery life up to 8 hours with optional lithium-ion battery packs.

Supports a broad range of communication interfaces for protocol analysis. Comprehensive calibration and compliance certificates included. Optional accessories include protective cases, battery chargers, and advanced probes.

This oscilloscope is ideal for use in industrial, laboratory, electronics development, manufacturing, and field service environments where space, portability, and precision are critical. Discover more innovative measuring instruments and Oscilloscopes in the EnvMart collection to meet your industrial testing requirements.
