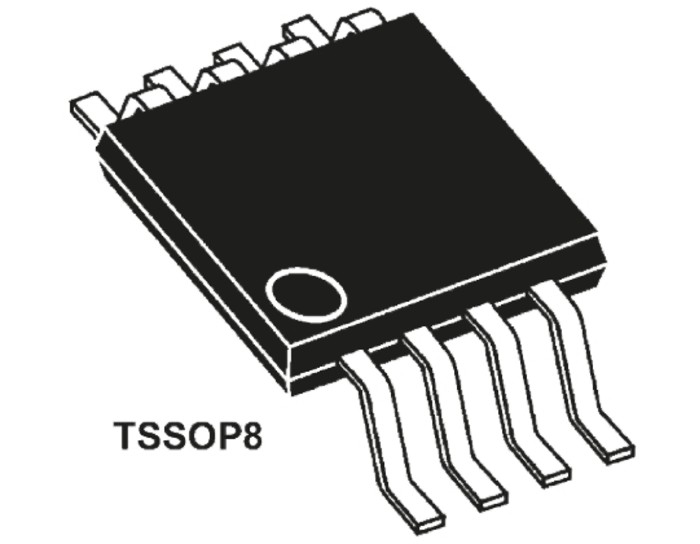

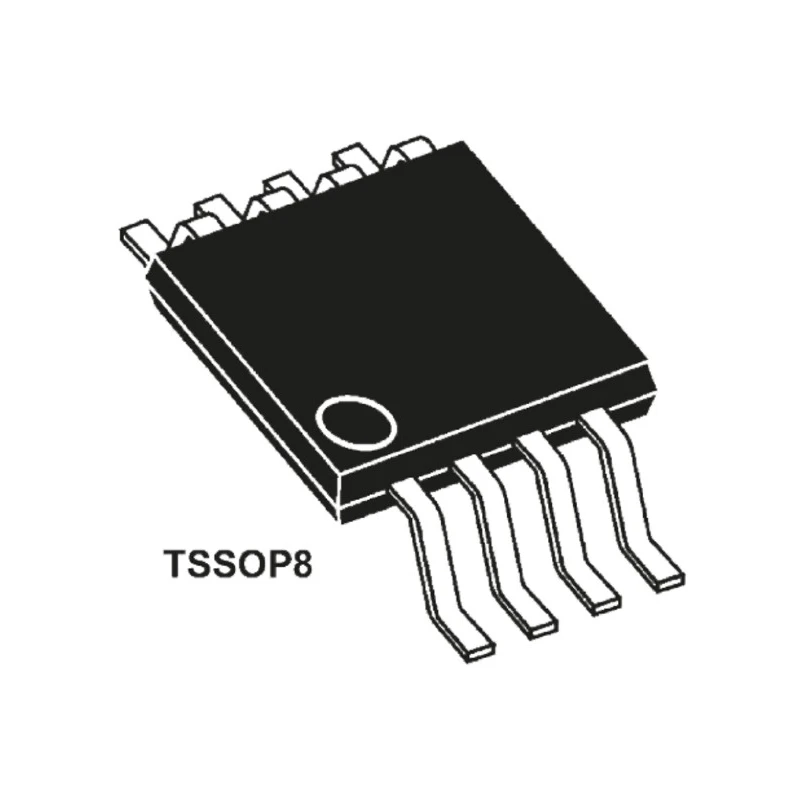

onsemi Logic Level Translator 2 LVTTL to LVPECL, LVCMOS 8-Pin TSSOP MC100EPT22DTG

The onsemi MC100EPT22DTG is a high-performance logic level translator optimized for interfacing LVTTL to LVPECL and LVCMOS signals. Featuring an 8-pin TSSOP surface-mount package, this uni-directional translator IC supports two elements per chip, providing versatile logic translation capabilities suitable for demanding electronics applications.

Operating within a supply voltage range of 3V to 3.6V, it ensures low power consumption while delivering fast switching speeds with a maximum propagation delay of 2 nanoseconds at capacitive load. The device supports TTL and ECL output types, handling up to 50mA of low-level output current, making it ideal for signal conditioning in complex digital circuits.

Its operating temperature range from -40°C to 85°C allows use in industrial and commercial electronic systems, maintaining performance stability across harsh environments. The compact TSSOP package facilitates integration into densely populated printed circuit boards, enhancing design flexibility.

Typical applications include logic level translation in semiconductor, industrial control, and communications equipment where precise signal interfacing between different voltage standards is required. The MC100EPT22DTG belongs to the MC100EPT2 series of ECL logic level translators by onsemi, designed to interface reliably with a wide variety of logic families including ECL, PECL, CML, LVDS, HSTL, HCSL, TTL, and CMOS devices.

The device operates within a supply voltage range of 3V to 3.6V. Maximum propagation delay time is 2ns at capacitive load. CSurface mount (TSSOP) package with 8 pins enhances compactness. Uni-directional translation of LVTTL to LVPECL and LVCMOS signals.

Operating temperature range from -40°C to 85°C suitable for industrial use. Outputs TTL and ECL logic with 50mA low level output current. Two logic elements per chip provide versatile applications.

For engineers and designers seeking reliable logic level translation with fast response, this device offers quality and performance under the trusted onsemi brand. Explore more semiconductor and translator IC products at EnvMart for diverse industrial and electronics applications.
