| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.05mm |
| Length | 3.1mm |
| Model | GSOT05-E3-08 |
| Width | 1.43mm |
| Mount Type | Surface |
| Series | GSOTO3C to GSOT36C |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IEC 61000-4-2 |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 8.7V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 480W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 30A |
| Maximum Reverse Leakage Current | 20μA |

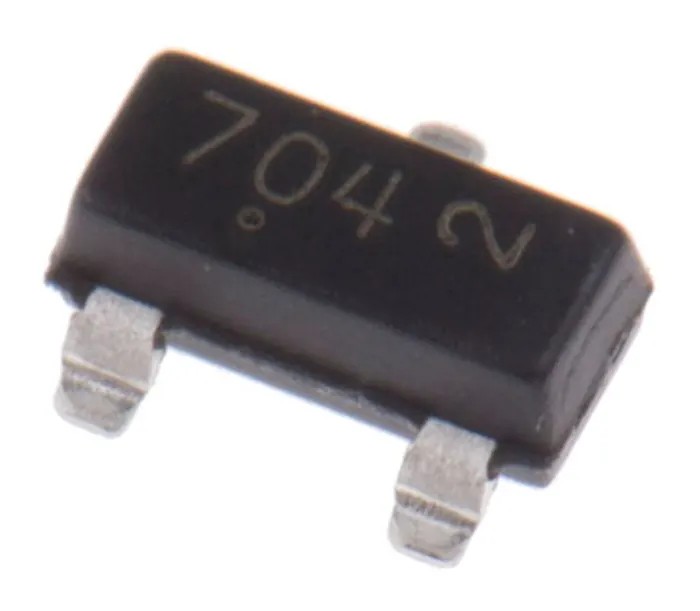

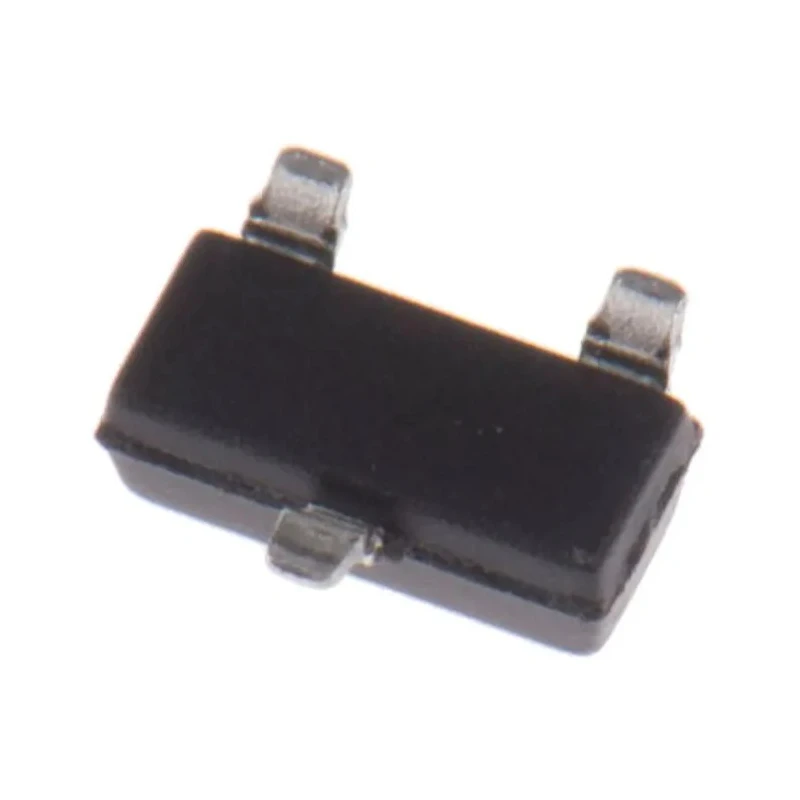

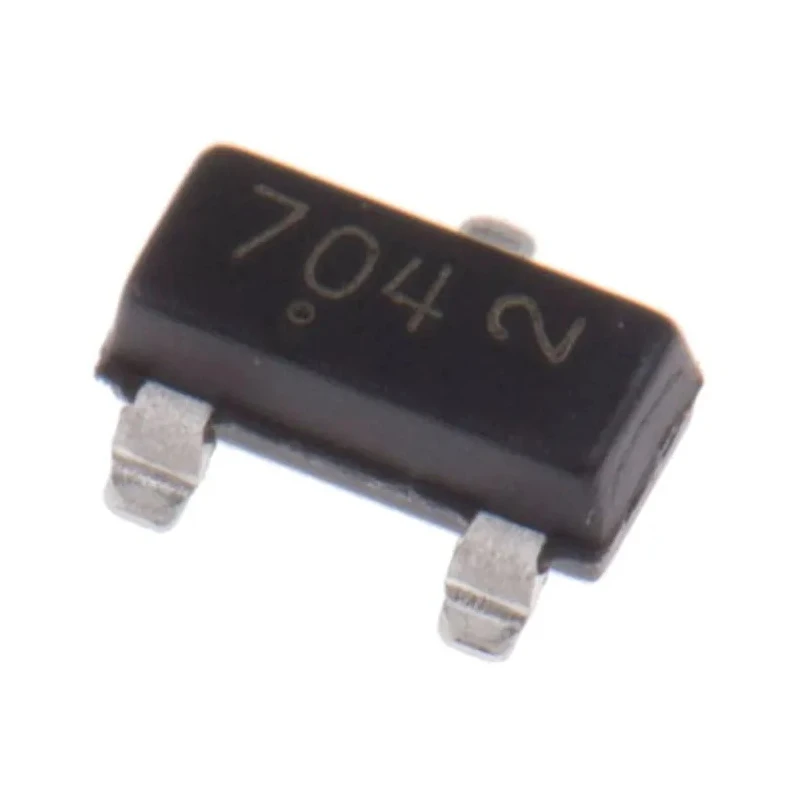

Vishay GSOT05-E3-08 is a 1-element bi-directional Electrostatic Discharge (ESD) protection diode engineered for robust transient voltage suppression, offering peak pulse power dissipation of 480 W in a small 3-pin SOT-23 surface-mount package. This diode is ideally used for protecting sensitive electronic circuits from ESD events and transient voltage surges.
The device features a single diode configuration that is bi-directional, allowing it to handle threats from both polarity spikes. It complies with IEC 61000-4-2 standards for electromagnetic compatibility and is AEC-Q101 qualified, making it suitable for automotive applications requiring high reliability and durability.
Operating comfortably from -40°C up to 125°C, this diode is suitable for industrial, automotive, telecommunication, and consumer electronics environments requiring efficient and compact surge protection.
The physical dimensions of this diode are compact with a length of 3.1 mm, width of 1.43 mm, and height of 1.05 mm, supporting high-density PCB layouts. It has a maximum reverse stand-off voltage of 5 V and a minimum breakdown voltage of 6 V. The clamping voltage is rated at 8.7 V, which efficiently limits the voltage during ESD pulses, ensuring circuit safety.
This diode supports a test current of 1 mA and can handle peak pulse currents up to 30 A, with minimal leakage current of 20 μA at maximum operating voltage. Its surface-mount SOT-23 package is compatible with automated assembly processes for enhanced production efficiency.
Delivers rapid response to ESD events protecting sensitive electronics. Compact SOT-23 package supports space-constrained PCB designs. Wide operating temperature range ideal for harsh environments. Automotive AEC-Q101 compliant ensuring rugged automotive-grade performance.
Conforms to IEC 61000-4-2 for comprehensive electrostatic discharge protection.
This diode is an ideal choice for designers needing effective ESD protection in automotive, industrial controls, telecommunications, and consumer electronics products. Browse more Vishay semiconductor components on EnvMart for a comprehensive selection of ESD protection devices.
