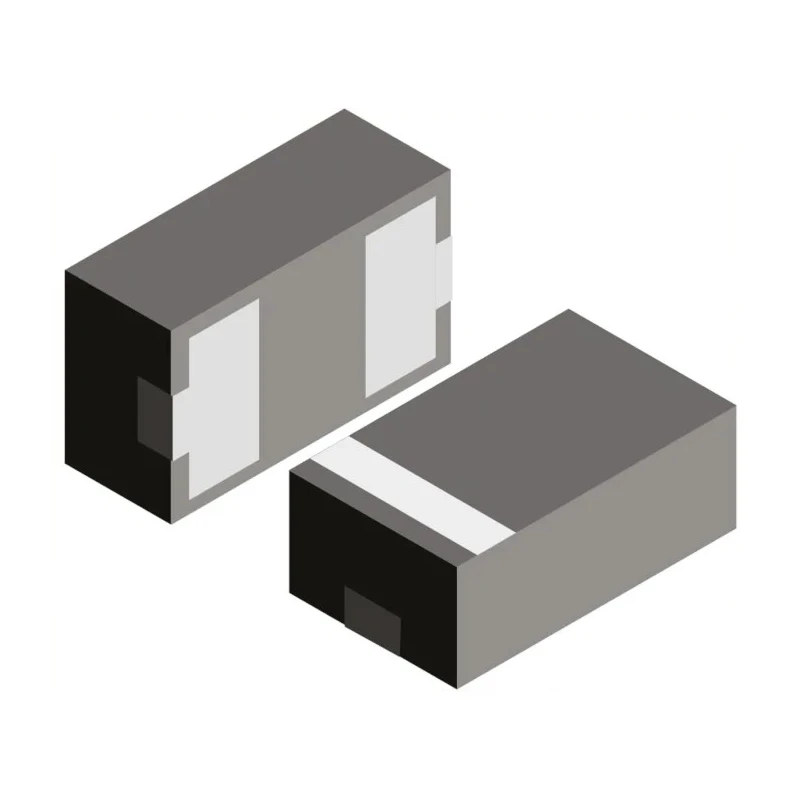

Vishay 2-Element Bi-Directional ESD Protection Diode 56W 2-Pin LLP1006 VCUT0505B-HD1-GS08

Vishay VCUT0505B-HD1-GS08 is a 2-element bi-directional ESD protection diode designed to safeguard sensitive electronic components from electrostatic discharge events. With a peak pulse power dissipation of 56 W and a compact 2-pin LLP1006 surface mount package, it provides robust protection while allowing efficient PCB layout for electronic applications.

This diode features a dual diode configuration in a bi-directional orientation to clamp voltage spikes caused by transient events. It has a minimum breakdown voltage (Vbr) of 7 V and a maximum reverse stand-off voltage (Vwm) of 5 V, making it suitable for protecting circuits at low voltage levels.

The diode withstands a maximum peak pulse current (Ippm) of 3.5 A and maintains a clamping voltage (VC) of 12 V, efficiently diverting destructive surges away from sensitive components. Its low maximum reverse leakage current of 100 nA reduces power loss and standby current drain.

Operating over a temperature range of -40°C to 125°C, this device is suitable for automotive, industrial, and consumer electronic applications where reliability is critical. Its small dimensions (1.05 mm length × 0.65 mm width × 0.4 mm height) support high-density PCB assembly and surface mounting techniques.

Manufactured in China, the diode does not carry additional certifications but complies with IEC 61000 ESD protection standards. It is supplied as a new product condition, ready for immediate integration into electronic designs requiring protection from electrostatic discharge and transient voltage spikes.

This diode features a dual diode configuration with bi-directional direction type for effective ESD protection. Minimum breakdown voltage is 7 V and maximum reverse stand-off voltage is 5 V. Maximum peak pulse power dissipation of 56 W and peak pulse current of 3.5 A.

Low leakage current of 100 nA ensures minimal power loss. Compact surface mount LLP1006 package with dimensions of 1.05 mm × 0.65 mm × 0.4 mm. Operating temperature range from -40°C to 125°C enables use in harsh conditions.

Compliant with IEC 61000 ESD protection standards for semiconductor protection. Explore more ESD Protection Diodes and semiconductor components at EnvMart for your industrial, automotive, and electronic manufacturing needs.
