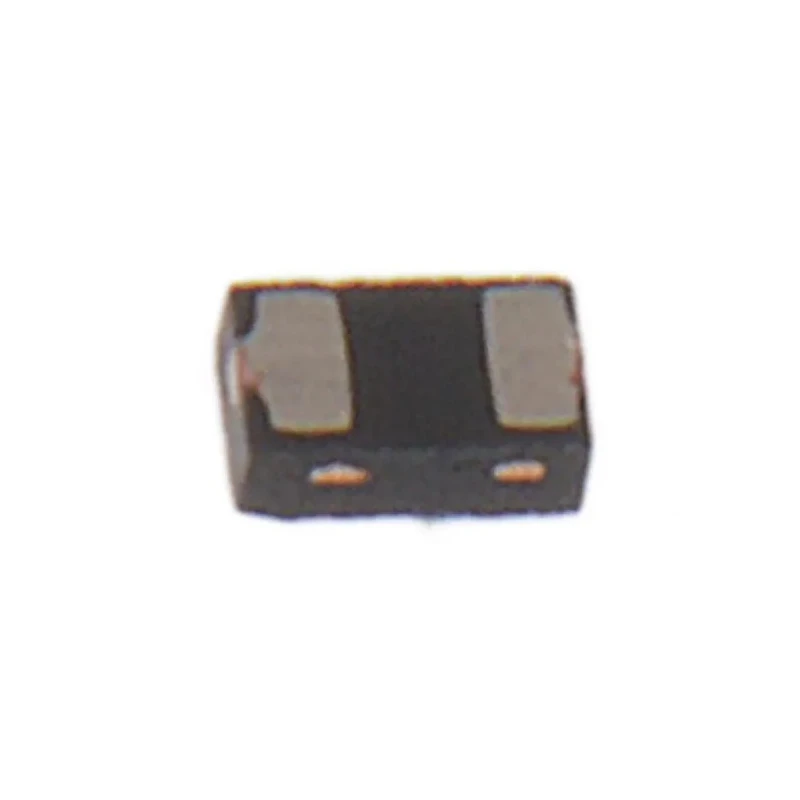

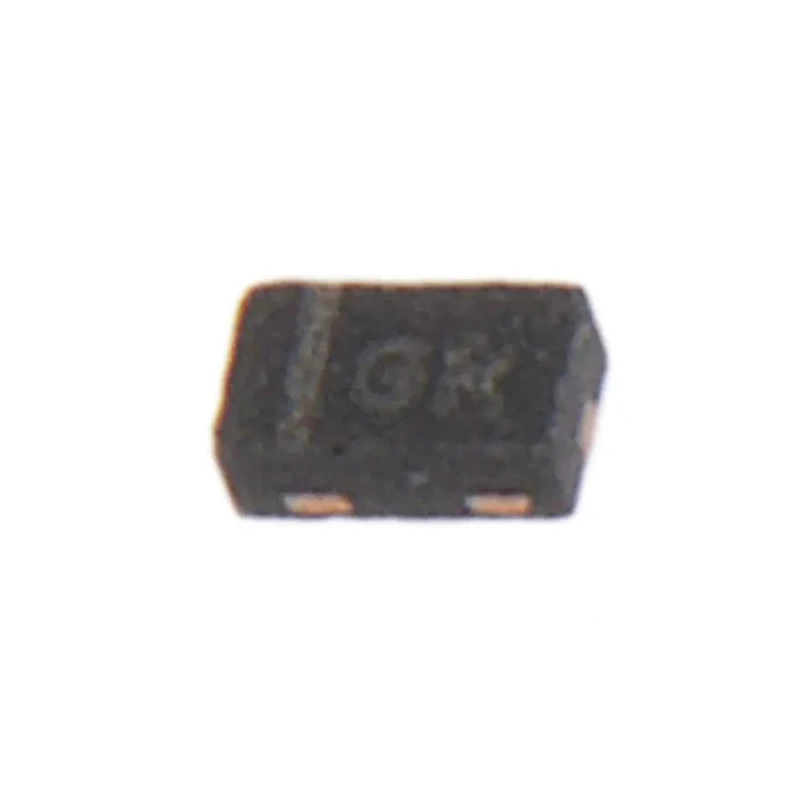

Vishay 2-Element Bi-Directional ESD Protection Diode 34 W, 2-Pin LLP1006 VBUS05L1-DD1-G-08
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 0.4mm |
| Length | 1.05mm |
| Model | VBUS05L1-DD1-G-08 |
| Width | 0.65mm |
| Mount Type | Surface |
| Series | VBUS |
| Maximum Operating Temperature | 125°C |
| Package Type | LLP1006 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 14V |
| Diode Configuration | Dual |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 7V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Peak Pulse Power Dissipation Pppm | 34W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 2A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Features dual diode configuration for bi-directional protection.
- Operates with a minimum breakdown voltage of 7 V and maximum stand-off voltage of 5.5 V.
- Capable of dissipating peak pulse power of 34 W, ensuring robust ESD defense.
- Compact in size with dimensions 1.05 mm length, 0.65 mm width, and 0.4 mm height.
- Wide operating temperature range from -40°C to 125°C for versatile applications.
- Clamping voltage of 14 V provides effective transient voltage suppression.
- Low maximum reverse leakage current of 50 nA increases efficiency.
- Surface mount design enabling easy PCB integration.
Product Description
Vishay VBUS05L1-DD1-G-08 is a 2-element bi-directional ESD protection diode designed to safeguard electronic components against electrostatic discharge and transient voltage spikes. Engineered with a robust peak pulse power dissipation of 34 W and housed in a compact 2-pin LLP1006 surface mount package, this diode ensures reliable protection in electronic circuits across various industrial and commercial applications.
Its dual diode configuration offers bi-directional protection, suitable for both positive and negative voltage transients. The device features a minimum breakdown voltage (Vbr) of 7 V and a maximum reverse stand-off voltage (Vwm) of 5.5 V, providing effective transient voltage suppression with a clamping voltage (VC) of 14 V. The maximum peak pulse current (Ippm) capability is 2 A, making it capable of handling high surge conditions. Low leakage current (maximum 50 nA) optimizes circuit efficiency and reduces power loss.
The diode operates within a wide temperature range of -40°C to 125°C, making it reliable for harsh environments including industrial electronics, automotive circuits, telecommunications equipment, and consumer electronic devices. Its small footprint (1.05 mm length, 0.65 mm width, and 0.4 mm height) supports compact PCB designs and high-density assembly.
Dual diode bi-directional configuration for transient and ESD protection. 34 W peak pulse power dissipation for robust surge endurance. Compact LLP1006 surface mount package for ease of integration. Wide operating temperature range (-40°C to 125°C) for diverse applications.
Low leakage current enhances circuit efficiency. Suitable for automotive, industrial, telecommunications, and consumer electronic applications. Manufactured to high-quality standards in China.
This ESD Protection Diode from Vishay is ideal for enhancing the durability and reliability of electronic devices against voltage spikes and electrostatic discharge events. For product selection and related TVS diode options, explore the Electronics & Electricals Semiconductor TVS Diodes category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode has a peak pulse power dissipation of 34 W, ensuring robust surge endurance.
The clamping voltage (VC) of this model is 14 V, providing effective transient voltage suppression.
The minimum breakdown voltage (Vbr) is 7 V, which allows it to handle voltage transients effectively.
The maximum reverse stand-off voltage (Vwm) is 5.5 V, which is critical for its protective capabilities.
This diode can handle a maximum peak pulse current (Ippm) of 2 A, making it suitable for high surge conditions.
The dimensions of this diode are 1.05 mm in length, 0.65 mm in width, and 0.4 mm in height.
The diode operates within a wide temperature range of -40°C to 125°C, making it suitable for various applications.
This model features a surface mount design, facilitating easy integration into PCB layouts.
This diode has a dual configuration, consisting of 2 elements per chip for bi-directional protection.
The maximum reverse leakage current is 50 nA, which helps optimize circuit efficiency.
This diode is suitable for applications in automotive, industrial, telecommunications, and consumer electronics.
The VBUS05L1-DD1-G-08 has a pin count of 2, designed for compact integration.
