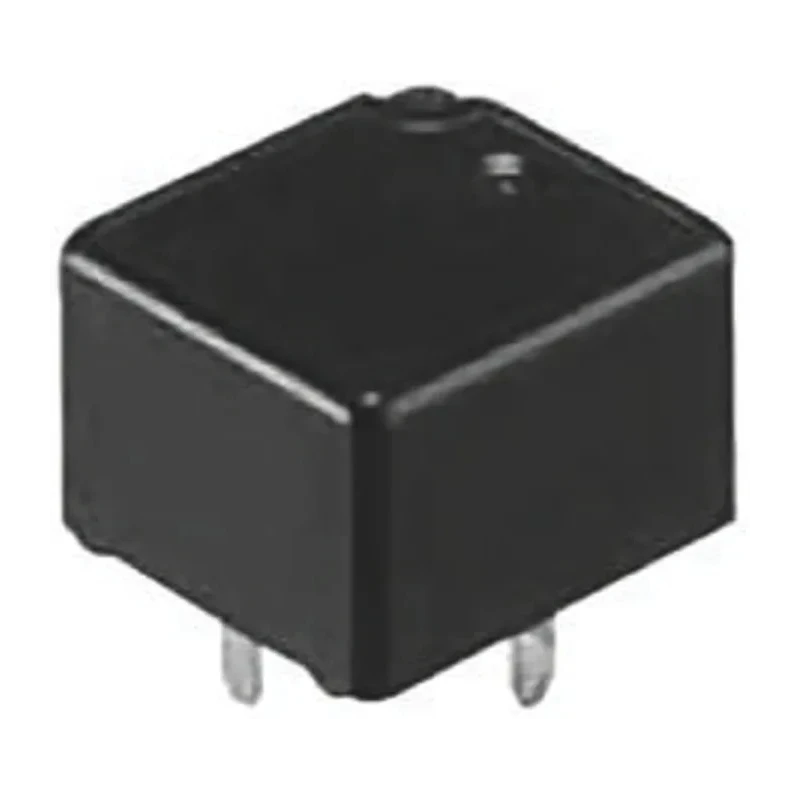

Panasonic PCB Automotive Relay 12V DC Coil Voltage 20A Switching Current SPDT CP1H-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9.5mm |
| Length | 14mm |
| Model | CP1H-12V |
| Depth | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | CP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Number of Poles | 1 |
| Coil Resistance | 320Ω |
| Coil Power | 450mW |
| Isolation Coil To Contact | 500Vrms |
Key Features
- This relay features a compact flat design measuring 14mm length, 13mm width, and 9.5mm height.
- It supports a maximum carrying current of 35A and is sealed for durability.
- The coil power consumption is 450mW with coil resistance of 320Ω.
- Contact configuration is Single Pole Double Throw (SPDT) with silver alloy contacts.
- Designed for PCB mounting with through-hole terminals for secure installation.
- Operates reliably from -40°C to 85°C suitable for automotive environments.
- Provides isolation coil to contact voltage rating of 500Vrms.
- Typical applications include defoggers, ignition systems, heaters, power windows, ABS, and other automotive systems.
Product Description
Panasonic CP1H-12V PCB Automotive Relay is a miniature, low-profile relay designed specifically for automotive applications. It features a 12V DC coil voltage and a 20A switching current with SPDT contact configuration, making it suitable for a variety of automotive electrical functions.
The relay has a compact and flat profile with dimensions of 14mm in length, 13mm in width, and 9.5mm in height, allowing it to fit easily within constrained spaces on printed circuit boards. The device supports a maximum carrying current of 35A and uses silver alloy contacts for durable, reliable switching performance. Its coil power consumption is 450mW and coil resistance is 320Ω.
Designed for PCB mounting via through-hole terminals, the relay operates effectively within a temperature range of -40°C to 85°C. It provides a coil to contact isolation voltage of 500Vrms, ensuring safety and electrical isolation. The sealed construction protects internal components against environmental contaminants, increasing longevity and performance in harsh conditions.
This relay is widely used across automotive applications including defoggers, ignition systems, heaters, accessories, power windows, anti-lock braking systems (ABS), and other vehicle subsystems requiring reliable switching.
Compact flat design ideal for automotive PCB mounting. High maximum current rating supports power applications. Sealed enclosure for enhanced durability. Wide operating temperature suitable for harsh environments. Silver alloy contact materials ensure reliable conductivity.
Single Pole Double Throw contact configuration for versatile switching. Isolation voltage of 500Vrms between coil and contacts. Designed and manufactured in Japan ensuring quality standards.
This Panasonic relay is a trusted component for automotive electrical systems, combining compact size, robust electrical specifications, and reliable performance. Explore more Automotive Relays at EnvMart to find optimal relay solutions for industrial and automotive needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CP1H-12V relay operates with a coil voltage of 12V DC.
This model supports a maximum switching current of 20A.
The relay measures 14mm in length, 13mm in width, and 9.5mm in height.
It features a Single Pole Double Throw (SPDT) contact configuration.
The maximum carrying current supported by this relay is 35A.
The coil resistance of the relay is 320Ω.
The coil power consumption is 450mW.
It operates reliably within a temperature range of -40°C to 85°C.
This relay is designed for PCB mounting using through-hole terminals.
The relay provides an isolation voltage of 500Vrms between the coil and contacts.
The contacts are made of silver alloy, ensuring reliable conductivity.
This relay is manufactured in Japan, ensuring adherence to quality standards.
