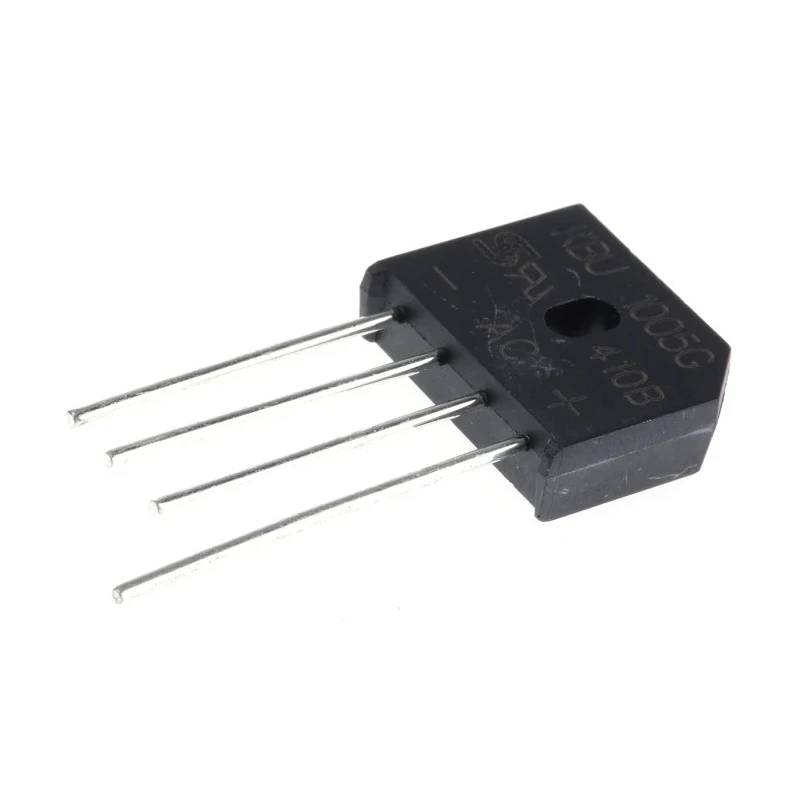

Taiwan Semiconductor Bridge Rectifier 600 V 200 A 4-Pin Single KBU1005G

Taiwan Semiconductor KBU1005G Bridge Rectifier is designed for converting AC input to DC output efficiently with a peak reverse repetitive voltage of 600 V and forward current rating of 10 A. This 4-pin, single configuration rectifier comes in a KBU through hole package suitable for SIL PCB mounting.

The device operates reliably over a wide temperature range from -55°C to 150°C, with a peak forward voltage drop of 1.1 V reducing conduction losses. It also withstands peak non-repetitive forward surge currents up to 200 A, providing transient surge protection essential for industrial and electronic applications.

Mechanically, the rectifier offers compact dimensions of 19.3 mm height, 7.1 mm width, and 23.7 mm length, making it suitable for tight PCB layouts. The glass passivated junction ensures stability and durability under electrical stress. It is ideal for various industrial and electronic sectors including power supplies, motor drives, and automation systems.

This bridge rectifier from Taiwan Semiconductor does not have automotive standards but complies with UL approvals (file E-96005), underscoring its compliance with safety norms in electronic manufacturing.

Peak reverse repetitive voltage of 600 V ensures robust performance under voltage stress. Forward current rating of 10 A allows for continuous reliable operation. Operating temperature span from -55°C to 150°C supports diverse environmental conditions.

Low peak forward voltage of 1.1 V improves efficiency. Survives peak non-repetitive surge currents of 200 A enhancing transient durability. Compact KBU through hole package for easy integration in PCB designs. Glass passivated junction for electrical stability and long-term reliability.

UL approval (file E-96005) for recognized safety standards.

This Taiwan Semiconductor KBU1005G model is suitable for industrial manufacturing, laboratory electronics, power management systems, and other applications requiring dependable bridge rectifiers.
