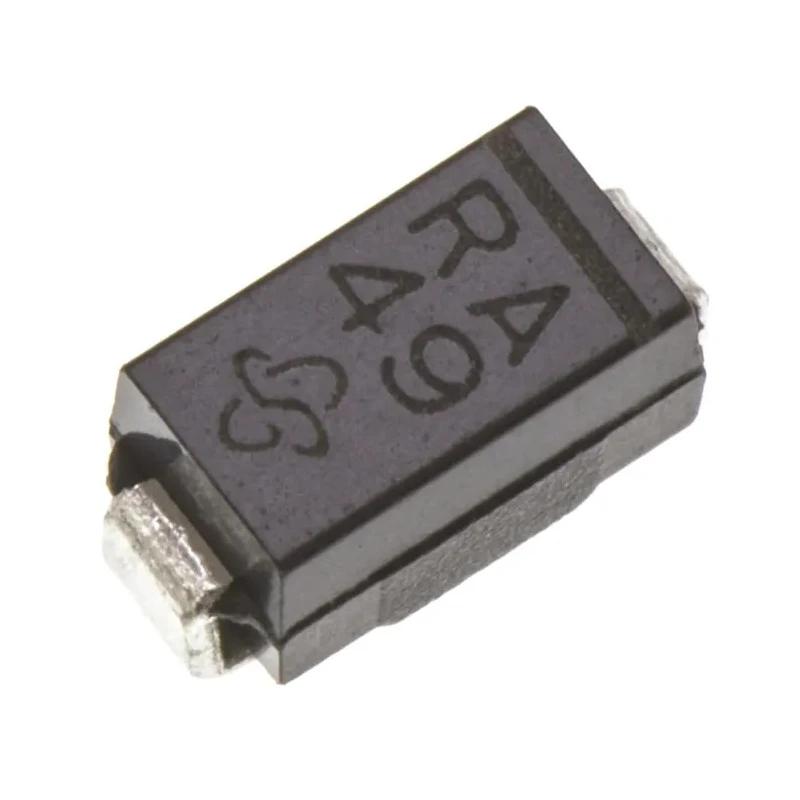

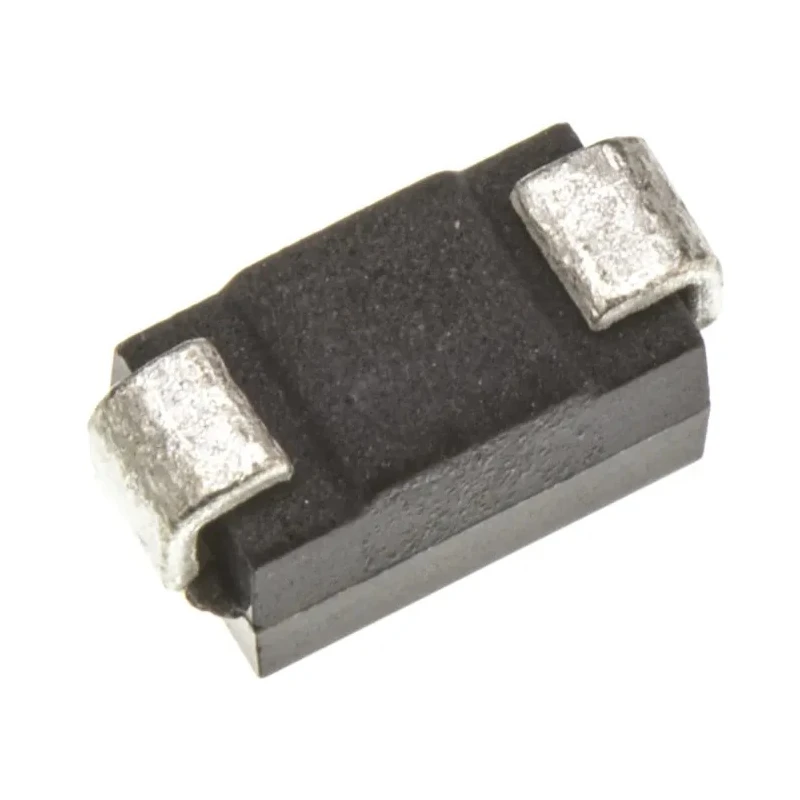

Vishay 50 V 1 A General Purpose 2-Pin DO-214BA Surface Mount Diode RGF1A-E3/67A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.74mm |
| Length | 4.75mm |
| Model | RGF1A-E3/67A |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | RGF1A |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214BA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 150ns |
| Vishay Diode, RGF1ABrand | Vishay |
| Vishay 50V 1A, Silicon Junction Diode, 2-Pin DO-214BA RGF1A-E3Brand | Vishay |
Key Features
- Surface mount design suitable for compact electronic circuits.
- Maximum continuous forward current of 1 ampere.
- Peak reverse repetitive voltage of 50 volts provides reliable blocking capability.
- Fast recovery time of 150 nanoseconds reduces switching losses.
- Operates within a temperature range from -65°C to 175°C.
- Low peak forward voltage drop of 1.3 volts ensures efficiency.
- Complies with RoHS and automotive standard AEC-Q101 for quality assurance.
- Designed for industrial, automotive, and electronic applications.
Product Description
Vishay RGF1A-E3/67A is a high-efficiency, fast recovery diode designed for general purpose rectification in surface mount technology. It is housed in a compact DO-214BA package, making it ideal for space-constrained electronic assemblies. Rated for a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 50 volts, this diode offers reliable performance in industrial, automotive, and commercial electronic applications.
The diode provides a fast recovery time of 150 nanoseconds, minimizing switching losses in power applications. It operates over a wide temperature range from -65°C up to 175°C, ensuring durability in harsh environments. With a low forward voltage of 1.3 volts, the diode enhances energy efficiency and heat management in circuits.
Its compact physical dimensions - length of 4.75 mm, width of 2.9 mm, and height of 2.74 mm - allow easy integration into PCBs with limited space. The product fully complies with RoHS environmental standards and meets the automotive specification AEC-Q101 for quality and reliability assurance in automotive systems.
This diode is suitable for use in power supplies, automotive electronics, industrial machinery, and consumer electronics. Its versatility and robust design make it a dependable choice for rectification and switching applications across various sectors. Packaged as a single device or in multipacks suitable for manufacturing, it supports efficient assembly and production workflows.
Surface mount design suitable for compact electronic circuits. Maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage of 50 volts provides reliable blocking capability. Fast recovery time of 150 nanoseconds reduces switching losses.
Operates within a temperature range from -65°C to 175°C. Low peak forward voltage drop of 1.3 volts ensures efficiency. Compact package dimensions: 4.75 mm length, 2.9 mm width, and 2.74 mm height. Complies with RoHS and automotive standard AEC-Q101 for quality assurance.
Designed for industrial, automotive, and electronic applications. Explore Vishay semiconductor components and solutions at EnvMart for your electronic manufacturing and design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 1 ampere.
This diode has a peak reverse repetitive voltage rating of 50 volts.
It features a fast recovery time of 150 nanoseconds, which helps reduce switching losses.
The operating temperature range for this unit is from -65°C to 175°C.
The diode has compact dimensions: 4.75 mm in length, 2.9 mm in width, and 2.74 mm in height.
The peak forward voltage drop is 1.3 volts, which enhances energy efficiency.
It complies with RoHS environmental standards and meets the automotive standard AEC-Q101.
This model utilizes a surface mount design, suitable for compact electronic circuits.
It is designed for use in industrial, automotive, and electronic applications.
The peak non-repetitive forward surge current for this diode is rated at 30 amperes.
This diode has a 2-pin configuration.
It is classified as a general purpose rectifier.
